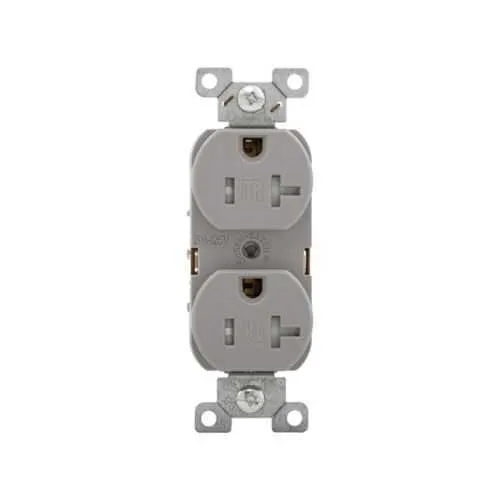

Eaton TRBR20GYBXSP Duplex Receptacle - Commercial Grade
Part Number: TRBR20GYBXSP
Quick Summary
The Eaton TRBR20GYBXSP duplex receptacle delivers reliable 20A, 125V performance for commercial applications. Facilities often struggle with tamper-resistance compliance, back-and-side wiring setups, and durability under heavy use in busy spaces. This model is cULus Listed and NOM certified, with auto-grounding and an impact-resistant nylon face, ensuring code-ready safety in demanding environments. Designed for quick installation and long-term reliability, it supports standard commercial-grade wiring and flush mounting, delivering value for installers and procurement teams alike.
Product Information
Extended Description
TRBR20GYBXSP Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Back and side, Gray, Brass, Impact-resistant nylon face, PVC body, 5-20R, Duplex, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRBR20GYBXSP
UPC
032664668715
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.212 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Gray
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant nylon face PVC body
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRBR20GYBXSP
Eaton Specification Sheet - TRBR20GYBXSP
Feature → Business Impact → Application: Back and side wiring supports flexible installation for #14-10 AWG conductors, reducing field rework and accelerating downstream wiring tasks in ED boxes; ideal for dense commercial enclosures where space is at a premium. Feature → Business Impact → Application: 5-20R NEMA configuration with 125V/20A rating matches common commercial circuits, enabling rapid retrofit and new-build deployments in offices, retail, and light-industrial facilities. Feature → Business Impact → Application: Tamper-resistant and auto-grounding enhance safety and code compliance, lowering owner risk and maintenance costs in tenant spaces and data centers. Feature → Business Impact → Application: Impact-resistant nylon face with PVC body delivers rugged longevity in busy environments, reducing replacement cycles and warranty claims. Feature → Business Impact → Application: Flush mount and ED Box packaging streamline installation timelines and field logistics for electrical contractors. Feature → Business Impact → Application: Brass contact material ensures reliable conductivity and consistent performance under load, supporting long-term electrical integrity in commercial settings.
Get a Quick Quote for a Eaton TRBR20GYBXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRBR20GYBXSP?
Enquire Now
FAQs
The TRBR20GYBXSP supports back and side wiring for #14-10 AWG conductors, enabling flexible terminations in flush-mounted installations. This approach simplifies field wiring, reduces the need for additional accessories, and speeds up installations in ED boxes while preserving a secure, code-compliant connection.
This receptacle is cULus Listed and NOM certified, indicating adherence to strict North American safety standards. For commercial projects, these certifications help ensure compliance with local electrical codes, streamline approvals, and reduce the risk of non-conforming installations in office, retail, and healthcare settings.
Yes. The TRBR20GYBXSP is designed for flush mounting in commercial enclosures and comes with ED Box packaging, supporting straightforward retrofits and new installations. The combination of flush mounting and a PVC body aids in neat, space-efficient layouts across various wall depths and enclosure configurations.
Key safety features include tamper resistance and auto-grounding, which help prevent accidental contact with live terminals and ensure proper grounding pathways. The brass contact material also provides reliable conductivity, contributing to safer operation under normal and fault conditions in commercial environments.
Durable nylon face and PVC body resist impact and wear, extending service life in high-traffic areas and reducing replacement frequency. The device’s straightforward wiring and flush-mount design shorten installation time, lowering labor costs while delivering consistent electrical performance and lower maintenance overhead over the asset life.
