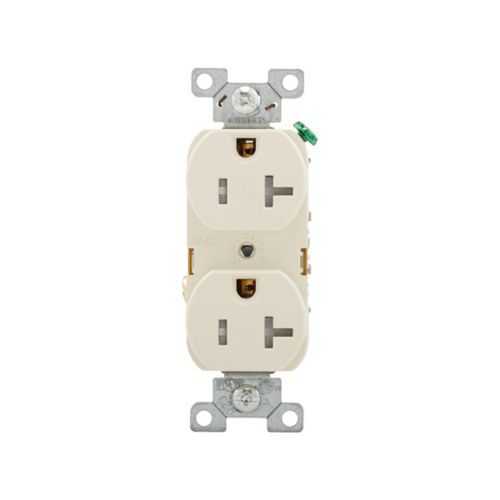

Eaton TRBR20LABXSP Duplex Receptacle - cULus NOM
Part Number: TRBR20LABXSP
Quick Summary
The Eaton TRBR20LABXSP duplex receptacle provides reliable 20A, 125V power in commercial spaces. Installing in busy facilities often creates delays due to compatibility and safety concerns. This model carries cULus Listed and NOM certifications, with tamper-resistant and auto-grounding features. Flush mounting, back-and-side wiring, and industry-standard 5-20R configure for fast, code-compliant deployments. Together, these attributes translate to safer installations, lower rework, and predictable procurement in commercial programs.
Product Information
Extended Description
TRBR20LABXSP Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Back and side, Light almond, Brass, Impact-resistant nylon face, PVC body, 5-20R, Duplex, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRBR20LABXSP
UPC
032664668722
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.212 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Light almond
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
PVC body Impact-resistant nylon face
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRBR20LABXSP
Eaton Specification Sheet - TRBR20LABXSP
Feature: 20A, 125V power with a NEMA 5-20R configuration. Business Impact: Supports scalable high-demand outlets for commercial environments, ensuring reliable power delivery and code-compliant installations across office, retail, and institutional spaces. Application: Ideal for new builds and renovations in commercial wiring projects demanding robust outlets. Feature: Back and side wiring for #14-10 AWG conductors. Business Impact: Offers installation flexibility, reduces field wiring constraints, and speeds up terminations in dense enclosures. Application: Suitable for retrofit panels and new construction where wiring routes are varied. Feature: PVC body with impact-resistant nylon face. Business Impact: Delivers enhanced durability in high-traffic areas, lowering replacement costs and downtime. Application: Office lobbies, classrooms, and manufacturing floors where frequent contact occurs. Feature: Tamper resistant and auto-grounding design. Business Impact: Improves safety, helps meet NEC/UL requirements, and minimizes shock risk without extra accessories. Application: Commercial spaces with code-driven safety mandates and frequent inspections. Feature: Flush mounting in ED Box packaging. Business Impact: Creates a clean finish, reduces enclosure depth, and simplifies alignments during installation. Application: Wall plates and panels in tight architectural envelopes across retail and healthcare facilities. Feature: Brass contact material and 14 lbf-inch torque rating. Business Impact: Ensures secure, low-resistance connections and repeatable terminations for long service life. Application: Critical power feeds in control rooms and service corridors.
Get a Quick Quote for a Eaton TRBR20LABXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRBR20LABXSP?
Enquire Now
FAQs
The TRBR20LABXSP supports back and side wiring with #14–10 AWG conductors, using screw terminations and a straightforward flush-mount ED Box. This configuration, combined with a 14 lbf-in torque rating, ensures a secure, code-compliant connection in commercial applications and simplifies field installation in 2-pole 5-20R outlets. The design supports fast, repeatable terminations with consistent torque, reducing rework and electrical noise.
Tamper-resistant (TR) contacts prevent user-access ports from opening unintended entry points, while auto-grounding ensures a reliable ground path during connection. This combination supports NEC and UL compliance for commercial installations, reduces the risk of shock in high-traffic spaces, and simplifies inspection by providing built-in safety features that do not require secondary accessories.
The receptacle features a 1.24 in depth, 0.79 in width, and 4 in height, with a PVC body and impact-resistant nylon face for rugged service. It accepts #14–10 AWG conductors, uses screw connections, and is rated at 14 lbf-in torque. Flush mounting via ED Box simplifies panel fit and alignment.
This receptacle is cULus Listed and NOM certified, confirming meeting UL safety and Mexican standards for commercial electrical devices. These certifications support NEC-compliant installations in shared facilities and ensure traceable manufacturing, reliable performance under normal operating conditions, and safer online documentation for inspection-ready projects. Manufacturers’ data sheets embed this certification context to assist procurement and reduce risk during audits.
Using this commercial-grade receptacle reduces maintenance by delivering durable construction (PVC body, nylon face) and a reliable 20A, 125V circuit with solid screw terminations. Tamper-resistant and auto-grounding features lower safety-related incident risk, while standardized NEMA 5-20R configuration speeds replacements, minimizes downtime, and simplifies stock management across multiple sites. This translates into predictable procurement costs and faster project completion.
