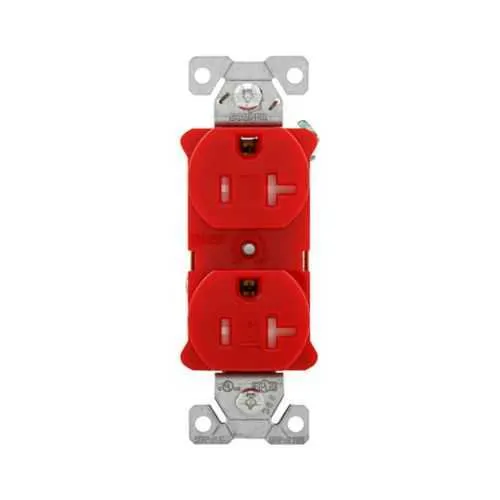

Eaton TRBR20RDBXSP Duplex Receptacle - cULus Listed
Part Number: TRBR20RDBXSP
Quick Summary
Eaton TRBR20RDBXSP duplex receptacle is a commercial-grade solution that reliably delivers 125V at 20A for busy facilities. Engineers and procurement teams often struggle with durable, code-compliant outlets that stand up to daily use. This unit carries cULus Listed and NOM certifications to support critical compliance across multiple jurisdictions. Designed for flush mounting with back-and-side wiring, it enables fast, clean installations in ED boxes, reducing field time and rework while delivering long-term lifecycle value. By combining rugged materials with safety features, it supports high-performance electrical distribution in commercial environments and aligns with project timelines and budgets.
Product Information
Extended Description
TRBR20RDBXSP Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Back and side, Red, Brass, Impact-resistant nylon face, PVC body, 5-20R, Duplex, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRBR20RDBXSP
UPC
032664668739
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.212 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
Red
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant nylon face PVC body
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRBR20RDBXSP
Eaton Specification Sheet - TRBR20RDBXSP
Feature: Impact-resistant nylon face and PVC body provide rugged longevity in demanding commercial settings. Business impact: This construction reduces wear, deformation, and damage from incidental contact, cutting maintenance and replacement costs. Application: Perfect for flush-mounted duplex outlets in ED boxes across high-traffic facilities such as airports, malls, and office complexes. Feature: Back and side wiring and a 3-wire configuration support flexible installation using #14-10 AWG conductors for versatile terminations. Business impact: Faster terminations and fewer field wiring errors, improving first-time fix rates. Application: Suitable for new builds and retrofit projects where wiring access is constrained. Feature: NEMA configuration 5-20R with a 20A, 125V rating and 14 lbf-inch torque rating for solid, safe connections. Business impact: Ensures consistent electrical performance and reduces loosened connections that can cause overheating. Application: Common in commercial outlets powering machines, computers, and receptacles in code-driven installations. Feature: Tamper-resistant and auto-grounding features deliver enhanced safety in public or shared spaces. Business impact: Helps meet safety requirements and reduces risk of incidental shock or tampering. Application: Essential in schools, offices, and healthcare settings where code compliance and occupant protection matter.
Get a Quick Quote for a Eaton TRBR20RDBXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRBR20RDBXSP?
Enquire Now
FAQs
TRBR20RDBXSP supports back and side wiring for a three-wire circuit and accepts #14-10 AWG conductors. The unit is rated 20A at 125V and uses a 5-20R NEMA configuration, with a torque rating of 14 lbf-in to maintain a secure connection and minimize resistance over the outlet’s service life.
Yes, the TRBR20RDBXSP includes tamper-resistant construction to prevent unauthorized access to the conductors. It also features auto-grounding for a reliable safety path and a durable face/body combination (nylon face, PVC body) to resist impacts, making it well-suited for high-traffic commercial environments.
The TRBR20RDBXSP uses the NEMA 5-20R configuration and is designed for flush mounting in ED boxes. It supports back and side wiring and is intended for commercial installations that require clean, code-compliant flush outlets with straightforward wiring access.
The TRBR20RDBXSP is cULus Listed and NOM certified. These certifications indicate adherence to recognized safety and performance standards, which simplifies code compliance, enables smoother inspections, and reduces project risk in commercial facilities.
Durable nylon face and PVC body resist wear, tamper-resistant features enhance safety, and back/side wiring simplifies terminations with #14-10 AWG. Combined with ED box packaging and a 14 lbf-in torque rating, this reduces maintenance, speeds installation, and lowers lifecycle costs in schools, offices, hospitals, and other high-usage environments.
