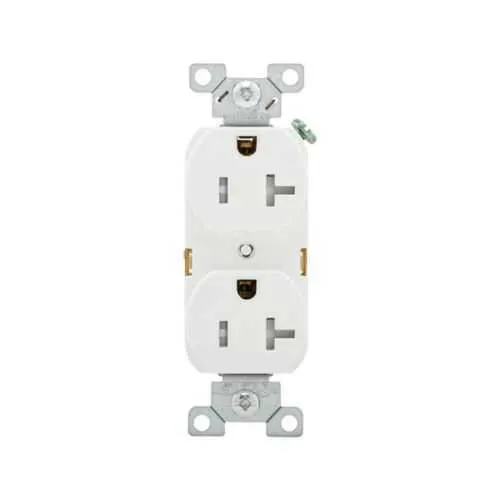

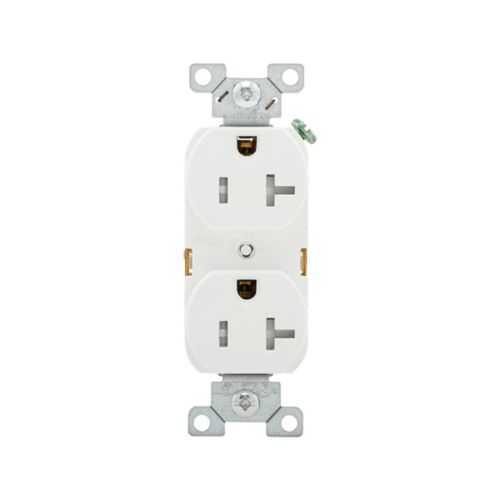

Eaton TRBR20W-BXSP Duplex Receptacle - cULus Listed
Part Number: TRBR20W-BXSP
Quick Summary
The Eaton TRBR20W-BXSP duplex receptacle delivers reliable 125V power specifically for commercial environments, enabling safe, consistent power delivery in offices, clinics, and retail spaces. In retrofit projects, electricians often face tight deadlines, awkward wiring access, and the need to meet tamper-resistance requirements while preserving performance, which this product addresses with ease. It carries cULus Listed and NOM certifications, underscoring safety and regulatory compliance for multi-site installations. Designed for flush mounting with a PVC body and an impact-resistant nylon face, it supports back-and-side wiring and a 20A rating, reducing field modifications and call-backs. This combination supports faster installations, lower labor costs, and improved reliability across facilities.
Product Information
Extended Description
TRBR20W-BXSP Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Back and side, White, Brass, Impact-resistant nylon face, PVC body, 5-20R, Duplex, Screw, PVC, ED Box
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRBR20W-BXSP
UPC
032664668753
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.21 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
ED Box
Color
White
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
PVC body Impact-resistant nylon face
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRBR20W-BXSP
Eaton Specification Sheet - TRBR20W-BXSP
Tamper-resistant design and auto-grounding enhance safety and regulatory compliance in high-traffic commercial spaces. This combination reduces the risk of shock and equipment damage while simplifying code adherence across multi-site deployments, from offices to retail environments. Back-and-side wiring compatible with #14-10 AWG streamlines field installs and reduces mis-wiring risk. For electricians, that means faster connections and fewer callbacks. NEMA 5-20R configuration ensures compatibility with common 20-amp commercial outlets, while a 14 lbf-in torque rating guarantees secure terminations without over-tightening. Durable brass contacts and a PVC body with an impact-resistant nylon face resist wear in frequent plug-in cycles, lowering replacement costs and service calls. Flush mounting with ED Box packaging enables neat, code-compliant installations in new builds and tenant improvements. Certifications including cULus Listed and NOM validate regulatory compliance across North American projects, reducing risk during inspections and procurement. The combination of these features translates to faster project completion, predictable performance, and long-term reliability in commercial applications.
Get a Quick Quote for a Eaton TRBR20W-BXSP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRBR20W-BXSP?
Enquire Now
FAQs
To install the TRBR20W-BXSP in existing ED boxes, align the receptacle for flush mounting, connect conductors to the back-and-side terminals with #14-10 AWG, and tighten to the 14 lbf-in torque rating. Use the 5-20R configuration for compatible equipment, verify proper ground, and seal the box to maintain code compliance and protect against debris.
Yes. The TRBR20W-BXSP is a 20A, 125V NEMA 5-20R receptacle designed for back-and-side wiring with #14-10 AWG. It supports typical office equipment, lighting controls, and small appliances commonly encountered in commercial spaces. With a 14 lbf-in torque and brass contact material, it delivers a consistent connection even under frequent plug-in cycles.
The TRBR20W-BXSP carries cULus Listed and NOM certifications, signaling compliance with U.S. and Mexican electrical standards. These certifications help simplify audits, support cross-border projects, and reduce risk during code reviews. For procurement teams, that means fewer engineering holds and faster approval while ensuring safety in commercial environments.
Tamper-resistant shutters and auto-grounding reduce shock risk and equipment damage in high-traffic areas. The PVC body with an impact-resistant nylon face resists wear in frequent-use environments. Combined with a robust 14 lbf-in torque rating and brass terminals, this receptacle maintains dependable performance across a long service life in offices, healthcare, and hospitality.
This receptacle offers measurable cost benefits: longer maintenance intervals due to durable materials, fewer field modifications thanks to standard back-and-side wiring, and reduced callbacks from reliable terminations. The ED Box packaging streamlines supply and installation, helping facilities teams complete retrofit projects on schedule and within budget, boosting overall return on investment.
