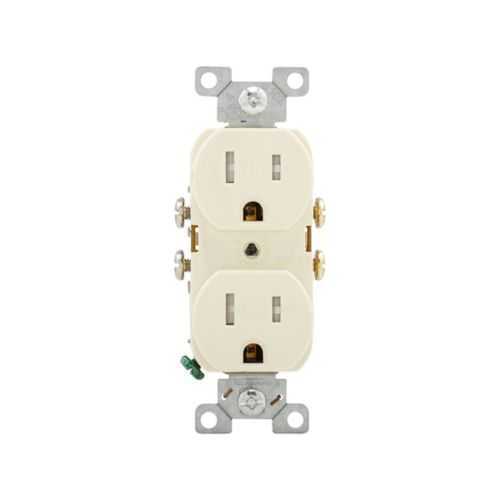

Eaton TRCR15A Duplex Receptacle - Commercial cULus Listed
Part Number: TRCR15A
Quick Summary
TRCR15A duplex receptacle from Eaton delivers reliable 125V, 15A power for commercial installations such as offices, retail, and healthcare facilities. Tight project timelines and complex wiring specs can lead to mistakes; this model is designed for straightforward, side-wire hookup that reduces rework. With cULus Listed and NOM certifications, plus tamper-resistant and auto-grounding features, it meets modern code requirements and safety expectations. Durable PVC body and impact-resistant nylon face support long service life, while flush mounting and a standard 5-15R configuration help installers deliver consistent, cost-effective results.
Product Information
Extended Description
TRCR15A Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, Almond, Brass, Impact-resistant nylon face, PVC body, 5-15R, Duplex, Screw, PVC, Core pack
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRCR15A
UPC
032664722691
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.73 in
Product Weight
0.154 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
Core pack
Color
Almond
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
PVC body Impact-resistant nylon face
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRCR15A
Eaton Specification Sheet - TRCR15A
Feature: 15A at 125V with a NEMA 5-15R duplex configuration. Business Impact: ensures seamless compatibility with standard commercial circuits and accessories, reducing miswiring and field adapters. Application: ideal for commercial-grade duplex receptacles in offices, retail desks, and service counters. Feature: Side wiring for 3-wire connections with a 14 lbf-inch torque rating. Business Impact: delivers secure terminations with repeatable performance, accelerating install efficiency and lowering rework costs. Application: flush-mount installations in new builds and retrofits where space is limited. Feature: Tamper-resistant and auto-grounding design. Business Impact: increases safety and regulatory compliance, minimizing shock risk in high-traffic environments. Application: healthcare facilities, schools, and customer-facing spaces requiring enhanced protection. Feature: Durable PVC body and impact-resistant nylon face with brass contact material. Business Impact: improves durability in demanding commercial environments, reducing replacement cycles and maintenance costs. Application: high-use offices, hospitality, and light industrial settings. Feature: Almond color, core-pack packaging, and flush-mount compatibility. Business Impact: supports consistent aesthetics across interiors and streamlined stocking for procurement teams. Application: contractor-ready for fast deployment in commercial projects.
Get a Quick Quote for a Eaton TRCR15A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRCR15A?
Enquire Now
FAQs
TRCR15A supports side-wire installation for #14-10 AWG conductors. To wire safely, prep the conductors, insert into the side terminals per the device labeling, tighten the screws to the specified 14 lbf-in torque, and verify proper polarity and ground continuity. This approach minimizes resistance and ensures a solid, code-compliant connection in commercial environments.
Yes. TRCR15A is designed with tamper-resistant features and auto-grounding to meet modern NEC safety standards. This makes it appropriate for busy commercial spaces such as offices, retail fronts, clinics, and educational facilities where plug-in devices experience frequent use and security considerations are important.
TRCR15A is cULus Listed and NOM certified, signaling conformance to North American electrical safety standards and Mexican regulatory requirements. These certifications help ensure installation compliance, compatibility with code-based projects, and smoother approval processes during inspections.
Key specs include 15A current rating, 125V voltage rating, NEMA 5-15R configuration, side-wire wiring, brass contact material, and a flush-mount design. It uses a PVC body with an impact-resistant nylon face, supports #14-10 AWG conductors, and has a torque rating of 14 lbf-in for reliable terminations.
Common challenges include space constraints for flush mounting and ensuring correct side-wire terminations. To address these, plan for a clean box fill, pre-strip conductors to the proper length, and follow the 14 lbf-in torque spec to avoid loose connections. Stocking the core-pack packaging can reduce project delays and ensure consistent supply for multi-outlet runs.
