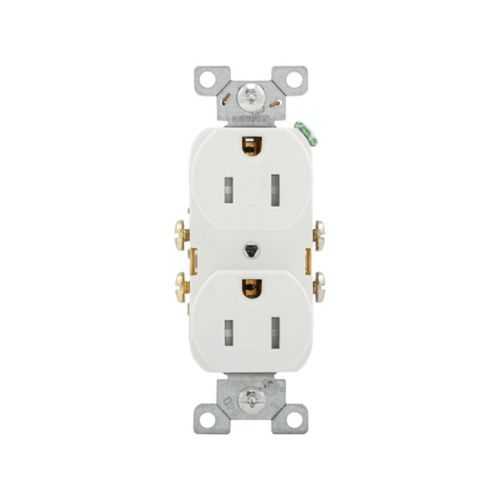

Eaton TRCR15W Receptacle - cULus Listed
Part Number: TRCR15W
Quick Summary
The Eaton TRCR15W Receptacle is a commercial-grade duplex outlet engineered for 125V, 15A service in offices, healthcare facilities, and other high-traffic environments. This design addresses pain points like safety, installation speed, and long-term durability in flush-mount applications. It carries critical certifications such as cULus Listed and NOM, underscoring regulatory compliance for modern facilities. With a PVC body and impact-resistant nylon face, it withstands demanding conditions while remaining easy to install. The combination of side-wire termination, corrosion-resistant brass contacts, and a compact footprint supports reliable performance in dense electrical cavities. These attributes translate into reduced maintenance costs, quicker project turnover, and consistent electrical reliability for business-critical infrastructure.
Product Information
Extended Description
TRCR15W Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, White, Brass, Impact-resistant nylon face, PVC body, 5-15R, Duplex, Screw, PVC, Core pack
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRCR15W
UPC
032664722684
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.73 in
Product Weight
0.154 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
Core pack
Color
White
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
PVC body Impact-resistant nylon face
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRCR15W
Eaton Specification Sheet - TRCR15W
Feature → Business Impact → Application: Tamper-resistant, auto-grounding design reduces shock risk and enhances safety compliance in commercial spaces, lowering liability and warranty costs while improving occupant protection during high-traffic use. Application: office lobbies, schools, hospitals, and hospitality projects where safety and reliability are paramount. Feature → Business Impact → Application: Side-wire termination accepts #14-10 AWG with 14 lbf-in torque rating, enabling fast, secure wiring and minimizing installation errors. Application: retrofit or new-build commercial installations where space constraints demand swift, dependable connections. Feature → Business Impact → Application: PVC body with impact-resistant nylon face delivers durable longevity in surface or flush-mounted outlets, reducing replacement cycles and maintenance calls in busy facilities. Application: high-traffic corridors, maintenance rooms, and industrial-adjacent spaces. Feature → Business Impact → Application: NEMA 5-15R configuration ensures immediate compatibility with standard plug loads, simplifying procurement and stocking for facilities teams. Application: general-purpose commercial outlets in offices and education environments. Feature → Business Impact → Application: Core-pack packaging reduces handling damage and streamlines project logistics, improving overall project timelines. Application: field installations and multi-outlet schemes. Feature → Business Impact → Application: cULus Listed NOM certifications provide regulatory confidence, supporting code compliance during inspections. Application: commercial buildings targeting safety and reliability in electrical design.
Get a Quick Quote for a Eaton TRCR15W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRCR15W?
Enquire Now
FAQs
The TRCR15W uses a side-wire wiring method that accepts #14-10 AWG conductors. This method, combined with a 14 lbf-inch torque rating for the terminal screws, supports secure, code-compliant connections. It simplifies field installation and reduces the likelihood of loose terminations, which can cause overheating or arcing in commercial applications.
Yes. The TRCR15W is a commercial-grade duplex receptacle with tamper-resistant construction and auto-grounding to improve occupant safety. It carries cULus Listed and NOM certifications, aligning with common electrical codes for commercial facilities and simplifying inspection readiness in offices, schools, and healthcare environments.
The TRCR15W carries cULus Listed and NOM certifications, indicating compliance with North American safety and performance standards. These approvals matter because they reassure installers and facility managers that the product meets recognized criteria for electrical safety, reliability, and regulatory alignment, reducing commissioning risk on commercial projects.
The TRCR15W features a 5-15R NEMA configuration, meaning it is designed for standard 15A, 125V plugs. This makes it compatible with most common office and commercial equipment, enabling straightforward replacement or expansion of existing outlets without special adapters or adapters, and facilitating consistent power distribution across a facility.
For best results, use side-wire wiring with #14-10 AWG conductors and adhere to the 14 lbf-inch torque specification on the terminals. Mount the receptacle flush to the wall to reduce mechanical stress, and choose the durable PVC body with nylon face for high-traffic areas. This approach minimizes overheating, improves crash resistance, and sustains performance over time in commercial environments.
