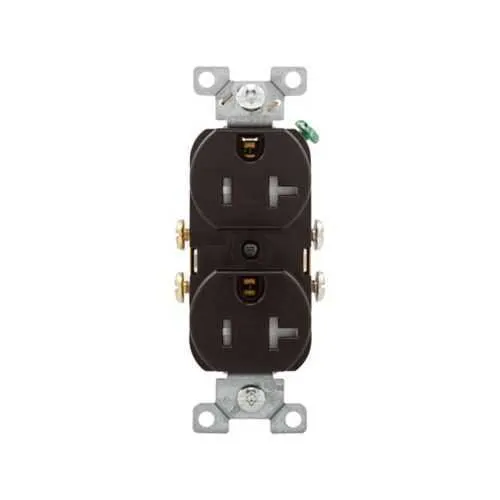

Eaton TRCR20B Duplex Receptacle - cULus Listed NOM
Part Number: TRCR20B
Quick Summary
TRCR20B duplex receptacle from Eaton delivers reliable 125V power for commercial spaces such as offices, retail, and healthcare facilities. This design addresses common wear and connection issues in high-traffic outlets by combining rugged materials with secure terminations. It carries cULus Listed and NOM certifications to help you meet NEC requirements with confidence. With side-wire installation, flush mounting, and a durable brass contact system, it simplifies field wiring while reducing maintenance overhead. For facilities prioritizing code compliance, standardized fittings, and long-term reliability, this receptacle provides clear business value and operational uptime.
Product Information
Extended Description
TRCR20B Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, Brown, Brass, Impact-resistant nylon face, PVC body, 5-20R, Duplex, Screw, PVC, Core pack
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRCR20B
UPC
032664722776
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.154 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
Core pack
Color
Brown
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant nylon face PVC body
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRCR20B
Eaton Specification Sheet - TRCR20B
Durable, impact-resistant Nylon face and PVC body reduce replacement costs in demanding environments, delivering tangible uptime gains for continuous operation in commercial spaces. This construction supports easy cleaning, resistance to wear, and long service life, translating to lower lifecycle costs and fewer outages during peak shifts. Tamper-resistant design with auto-grounding ensures safety and code compliance, minimizing risk of electrical shocks and speeding up inspections in office buildings, hotels, and retail locations. The side-wire wiring method for #14-10 AWG conductors accelerates installation, lowers labor time, and reduces the chance of miswiring, making field work more efficient on busy projects. With a 5-20R NEMA configuration, 20A at 125V, and a 14 lbf-inch torque rating, it ensures a secure, reliable connection for everyday electronics and power tools in commercial panels. Core-pack packaging supports streamlined logistics and reduced material waste, aligning with sustainability goals while maintaining fast project timelines. Overall, Eaton TRCR20B combines durability, safety, and practical installability to meet stringent commercial requirements without sacrificing performance or cost efficiency.
Get a Quick Quote for a Eaton TRCR20B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRCR20B?
Enquire Now
FAQs
The TRCR20B supports flush mounting with side-wire connections for #14-10 AWG conductors, compatible with standard single-gang or commercial wall boxes. It uses a two-pole NEMA 5-20R configuration and a 14 lbf-inch torque rating to secure conductors, providing reliable, code-compliant installation in busy facilities.
It delivers 20A at 125V with brass contacts and a tamper-resistant, auto-grounding design. Certifications include cULus Listed and NOM, supporting NEC compliance and national standards. The unit’s side-wire method and durable materials combine to maintain safe operation under continuous commercial loads.
Yes. The commercial-grade construction, tamper-resistant features, and auto-grounding design make it well suited for offices, retail spaces, and healthcare facilities where safety, reliability, and meeting code requirements are critical. Its durable nylon face and PVC body withstand high-traffic use typical of these environments.
TRCR20B is cULus Listed NOM, indicating compliance with U.S. and Canadian safety standards. These certifications help ensure proper performance, safer installations, and easier code approvals for commercial projects across North America.
The durable materials and robust construction reduce replacement cycles and maintenance calls, boosting uptime and lowering lifecycle costs. Side-wire installation speeds up wiring, while the secure, corrosion-resistant brass contacts maintain reliable performance, contributing to lower energy-related downtime and predictable, long-term return on investment.
