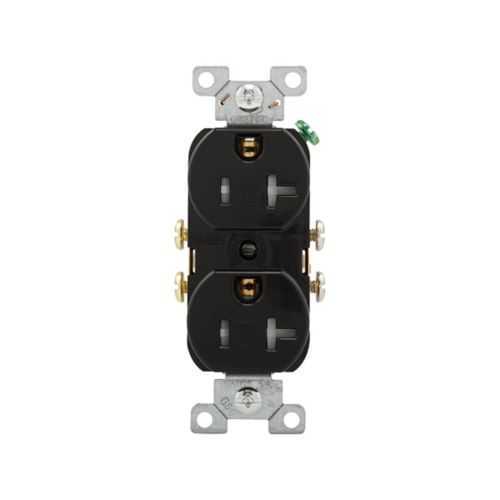

Eaton TRCR20BK Duplex Receptacle - cULus Listed
Part Number: TRCR20BK
Quick Summary
Eaton TRCR20BK is a commercial specification grade duplex receptacle designed for 20A, 125V circuits in commercial interiors. Installers often grapple with durability, flush-mount alignment, and reliable grounding in busy facilities. This model carries cULus Listed and NOM certifications, aligning with North American codes while delivering dependable performance in demanding environments. Its 5-20R NEMA configuration, side-wire termination, and auto-grounding features help streamline installs, reduce rework, and extend service life. For engineers and procurement teams, the rugged PVC body and impact-resistant nylon face minimize replacement costs and downtime, supporting long-term maintenance efficiency and compliance across high-traffic areas.
Product Information
Extended Description
TRCR20BK Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, Black, Brass, Impact-resistant nylon face, PVC body, 5-20R, Duplex, Screw, PVC, Core pack
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRCR20BK
UPC
032664722783
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.154 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
Core pack
Color
Black
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
PVC body Impact-resistant nylon face
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRCR20BK
Eaton Specification Sheet - TRCR20BK
Feature → Business Impact → Application: Tamper-resistant Auto-grounding reduces unauthorized access and improves safety compliance in commercial spaces, delivering predictable performance across daily usage in offices and healthcare facilities. Application: Office retrofit projects and new commercial builds benefit from faster, code-compliant commissioning with fewer after-install issues. Feature → Business Impact → Application: Side wire terminations support straightforward field wiring for #14-10 AWG conductors, cutting install time and minimizing conductor damage during pull, ideal for retrofit and new-construction wiring. Feature → Business Impact → Application: 5-20R NEMA configuration enables standard 125V circuits in general purpose receptacles, compatible with most commercial power distribution layouts. Feature → Business Impact → Application: Brass contact material provides reliable conductivity and longevity, reducing contact wear in high-load applications like data centers and retail environments. Feature → Business Impact → Application: PVC body with impact-resistant nylon face offers tough, dasbility for high-traffic installations, resisting impacts in maintenance corridors and hard-use areas. Feature → Business Impact → Application: Core pack packaging supports efficient bulk procurement, improving stocking and reducing waste in large facilities. Feature → Business Impact → Application: Flush mounting with a 1.24 in depth and 0.79 in width enables sleek finishes in wall planes, minimizing protrusions in wall chases and enhancing aesthetics in commercial interiors.
Get a Quick Quote for a Eaton TRCR20BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRCR20BK?
Enquire Now
FAQs
The TRCR20BK uses side-wire terminations for #14-10 AWG conductors. Maintain the recommended torque of 14 lbf-inch on the screws to ensure a solid, vibration-resistant connection. This design supports quick field wiring while maintaining reliable electrical contact and grounding in flush-mounted receptacles.
TRCR20BK is cULus Listed and NOM certified, meeting North American safety and electrical standards. These certifications provide assurance of safe operation in commercial environments, simplify code compliance during inspections, and support broader adoption across regulated facilities such as offices, healthcare, and hospitality.
Yes. The device is designed for flush mounting with a compact 1.24 in depth, 0.79 in width, and a standard duplex receptacle profile. Its PVC body and nylon face withstand frequent use, while the 5-20R configuration fits common commercial circuits, reducing protrusions and improving wall aesthetics in hallways and work areas.
Key features include tamper-resistant construction, auto-grounding, brass contacts for reliable conductivity, and a durable PVC/nylon face assembly. These attributes reduce wear, maintenance calls, and potential failures in data centers, retail floors, and manufacturing corridors, delivering consistent performance under heavy usage.
The TRCR20BK offers long-term cost savings through reduced maintenance, faster installation with straightforward side wiring, and durable construction that lowers replacement frequency. In busy facilities, these factors translate to lower labor costs during upgrades and fewer unplanned outages, improving uptime and operational efficiency.
