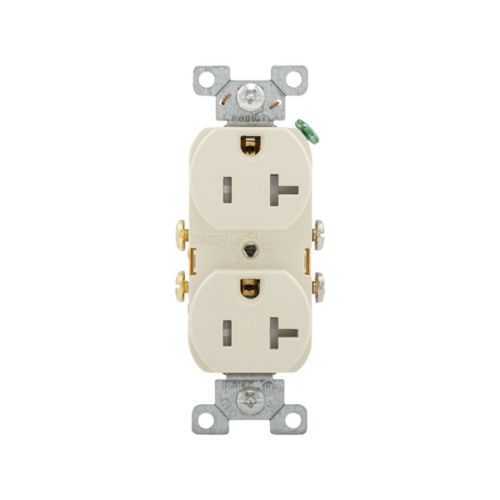

Eaton TRCR20LA Duplex Receptacle - cULus Listed
Part Number: TRCR20LA
Quick Summary
Eaton TRCR20LA duplex receptacle is a 125V, 20A device designed for commercial power delivery. In busy facilities, installation speed, tamper resistance, and reliable grounding can make or break a project timeline. This model carries cULus Listed and NOM certifications, supporting code compliance in North America and select international markets. Its side-wire, flush-mount design and durable PVC/nylon construction deliver long-term reliability while reducing maintenance costs for commercial lighting and power installs. Engineers value predictable torque and robust brass contacts for high-availability environments, enabling fast field installation and fewer service trips, especially in high-traffic workspaces.
Product Information
Extended Description
TRCR20LA Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, Light almond, Brass, Impact-resistant nylon face, PVC body, 5-20R, Duplex, Screw, PVC, Core pack
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRCR20LA
UPC
032664722806
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.154 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
Core pack
Color
Light almond
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant nylon face PVC body
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRCR20LA
Eaton Specification Sheet - TRCR20LA
The TRCR20LA is a commercial specification grade duplex receptacle rated for 20A at 125V, configured as a two-pole NEMA 5-20R. Business impact: standardization on a proven, compatible receptacle reduces mix-ups and warranty issues across multiple job sites. Application: office towers, retail centers, and hospitality properties benefit from predictable performance and simplified procurement. The side-wire wiring method supports easy field terminations with #14-10 AWG, delivering solid connections (14 lbf-in torque) that resist loosening under vibration and reuse cycles. This translates to faster installs, fewer callbacks, and lower labor costs. Application note: ideal for flush mounting in finished walls where concealment and aesthetics matter. The face is impact-resistant nylon with a PVC body for robust life in demanding environments, while brass contact materials ensure reliable low-resistance connections under load. The overall design reduces maintenance frequency and improves electrical reliability in commercial fleets.
Get a Quick Quote for a Eaton TRCR20LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRCR20LA?
Enquire Now
FAQs
Yes. The TRCR20LA uses a side-wire termination suitable for #14-10 AWG conductors, supports 125V, 20A circuits, and employs a NEMA 5-20R configuration. Its torque rating and screw-terminals ensure a secure, code-compliant connection, reducing the risk of future loosening or heat buildup in commercial installations.
Key specs include 20A amperage rating, 125V voltage rating, NEMA 5-20R configuration, brass contact material, and an auto-grounding, tamper-resistant design. The device uses a flush mounting method, side-wire wiring, and a 14 lbf-in torque rating to ensure reliable, repeatable terminations in high-traffic environments.
Ideal for commercial spaces such as offices, retail stores, and hospitality venues, the TRCR20LA offers reliable power delivery with tamper resistance and durable construction. Its flush-mount design, color options like light almond, and robust materials make it suitable for wall installations where aesthetics and longevity matter.
The TRCR20LA is cULus Listed and NOM certified, supporting code compliance in North American markets and select international regions. These certifications confirm adherence to safety and performance standards, reducing risk for contractors and streamlining procurement with distributors that require traceable approvals.
Although ROI varies by project, the TRCR20LA offers tangible value through durable nylon/PVC construction, brass contacts, and tamper-resistant features that reduce maintenance and failure rates. Faster installation due to side-wire terminations and reliable, long-term performance translate to lower labor costs and fewer field service visits over the life of a building.
