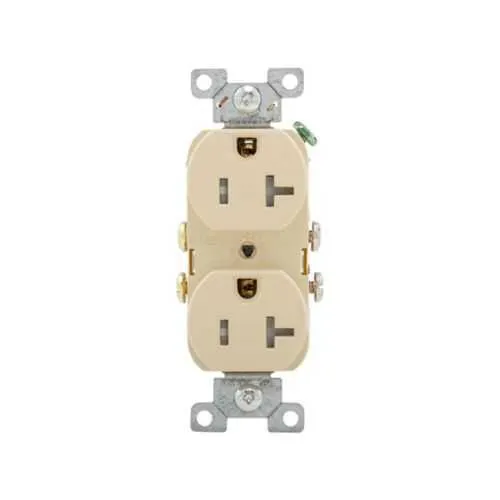

Eaton TRCR20V Duplex Receptacle - cULus Listed
Part Number: TRCR20V
Quick Summary
Eaton TRCR20V duplex receptacle is a commercial-grade 125V outlet for demanding office, retail, and industrial applications. In high-traffic facilities, subpar outlets lead to downtime, safety risks, and costly maintenance, making reliability non-negotiable. This product carries cULus Listed and NOM certifications, underscoring regulatory compliance across North American markets, while its impact-resistant nylon face and PVC body stand up to daily wear. The side-wire, 5-20R configuration with flush mounting enables faster, cleaner installations and dependable grounding, reducing service calls. For procurement teams, the long-term value comes from safer, code-compliant outlets that support scalable, contract-wide electrical upgrades.
Product Information
Extended Description
TRCR20V Eaton: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, Ivory, Brass, Impact-resistant nylon face, PVC body, 5-20R, Duplex, Screw, PVC, Core pack
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TRCR20V
UPC
032664722820
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Weight
0.154 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Side wire
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
PVC
Packaging type
Core pack
Color
Ivory
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant nylon face PVC body
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TRCR20V
Eaton Specification Sheet - TRCR20V
The TRCR20V uses a 20A, 125V duplex receptacle configuration to support modern, higher-load devices in commercial environments, delivering reliable performance and consistent power delivery for critical equipment. Business impact: improved uptime and safer operation with fewer nuisance trips and outages; Application: office buildings, retail spaces, and light industrial sites requiring durable outlets. The side-wire termination accepts #14-10 AWG conductors, enabling quick, secure field connections and reducing installation time. Business impact: faster project completion and lower labor costs; Application: new builds and retrofit projects where speed matters. Tamper-resistant and auto-grounding features enhance safety and code compliance, lowering risk of shock or improper grounding in high-traffic areas; Application: classrooms, healthcare facilities, and public facilities. Flush mounting plus core-pack packaging streamlines installation and handling, delivering a clean, professional appearance and reducing material waste; Application: enclosures, surface-mount boxes, and modular wall layouts. Durable materials—impact-resistant nylon face and PVC body—provide rugged life-cycle performance, minimizing replacements and warranty costs; Application: harsh environments and mill-room installations. Color Ivory helps match décor while meeting enterprise standardization for widespread rollouts; Application: multi-site deployments and contractor-wide upgrades.
Get a Quick Quote for a Eaton TRCR20V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRCR20V?
Enquire Now
FAQs
Power must be switched off before installation. The TRCR20V accepts #14-10 AWG conductors via side-wire terminals. Route wires to the brass terminals, tighten to the specified torque of 14 lbf-in, then secure the device in the flush-mount opening. Use the core-pack packaging to minimize waste and ensure consistent assembly in field conditions.
This receptacle supports 3-wire configurations with #14-10 AWG conductors and is rated for 20A at 125V. It uses a side-wire wiring method and a NEMA 5-20R configuration, making it compatible with standard commercial circuits and simplifying replacement in existing commercial installations.
Ideal for office buildings, retail environments, and light industrial facilities that require durable, code-compliant outlets. Its flush-mount design and ivory finish help integrate into various décor schemes, while its tamper-resistant and auto-grounding features enhance safety in areas with high foot traffic and frequent plug-in activity.
The TRCR20V is cULus Listed and NOM certified, ensuring compliance with North American electrical safety and regulatory standards. These certifications reduce project risk, ease approvals for commercial installations, and support nationwide and cross-border procurement and maintenance programs.
Durable materials—impact-resistant nylon face and PVC body—paired with tamper-resistant and auto-grounding features reduce wear, ground faults, and unauthorized access. The rugged construction lowers replacement frequency and warranty claims, delivering a favorable total cost of ownership for high-use facilities and multi-site rollouts.
