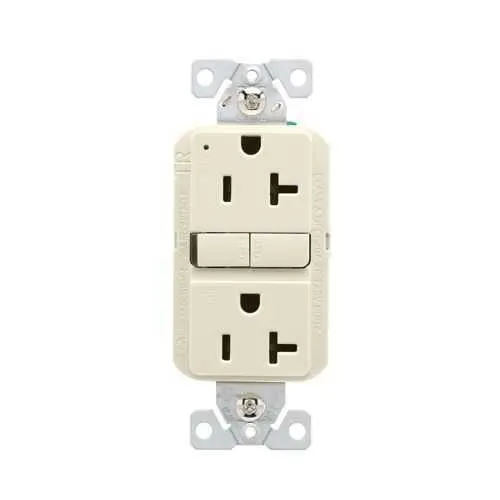

Eaton TRGF20LA Slim GFCI Receptacle - Self-test 20A 125V
Part Number: TRGF20LA
Quick Summary
Eaton slim GFCI receptacle provides reliable ground-fault protection for outlets in commercial and residential wiring. In tight enclosures, traditional devices can be bulky and difficult to wire, test, and maintain. This model carries cULus Listed and NOM certifications with tamper-resistance and self-test functionality to meet code and safety goals. By combining a slim footprint with proven performance, it supports efficient installation and reliable protection for critical circuits. Engineers appreciate the compact dimensions—1.03 in depth, 4.19 in height, and 1.69 in width—for easier fit in congested panels. With back and side wiring for #14-10 AWG and the option of ED Box packaging, installation time and errors decrease.
Product Information
Extended Description
TRGF20LA Eaton: Eaton tamper-resistant, self-test GFCI, 20A, 125V, Light Almond, Slim design
Product Name
Eaton slim GFCI receptacle
Catalog Number
TRGF20LA
UPC
032664013102
Product Length/Depth
1.03 in
Product Height
4.19 in
Product Width
1.69 in
Product Weight
3.9 lb
Warranty
Refer to warranty document.
Certifications
cULus Listed NOM
Special features
Slim design
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
GFCI
Packaging type
ED Box
Features
Tamper resistant FedSpec Certified
Wiring method
Back and side wire
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-in
Color
Light almond
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Slim design saves enclosure space, enabling denser panel layouts and easier retrofits, which translates to reduced enclosure costs and faster project completion. The business impact is clear: higher wiring density without compromising safety, plus easier future maintenance in crowded electrical rooms. This is ideal for commercial offices, retail spaces, and multi-gang panels where every inch counts. Self-test and tamper-resistant features enhance safety, ensuring ongoing compliance with less manual testing and fewer nuisance alarms—particularly valuable in healthcare, education, and hospitality environments where reliability is critical. Back and side wiring supports #14-10 AWG, streamlining field terminations and reducing miswire risk, while the 16 lbf-in torque rating ensures secure connections in dusty or locked panels. NEMA 5-20R compatibility and slim ED Box packaging further improve installation efficiency and on-site stocking. These attributes collectively lower lifecycle costs and improve first-pass installation quality.
Get a Quick Quote for a Eaton TRGF20LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRGF20LA?
Enquire Now
FAQs
Power should be off before installation. Use #14-10 AWG conductors and terminate with the back-and-side wiring method. Tighten to 16 lbf-in torque, mount in an ED Box, and connect line/load per the manufacturer's diagram. Ensure the device is fully seated in the enclosure and verify polarity with a test after wiring.
The TRGF20LA is a 20A, 125V GFCI receptacle with a NEMA 5-20R configuration, a slim 1.03 in depth, 4.19 in height, and 1.69 in width. It supports back and side wiring for #14-10 AWG, has a 16 lbf-in torque rating, and is packaged in an ED Box. It is tamper-resistant and self-test capable.
Yes. Its slim design and ED Box packaging are specifically intended for space-constrained commercial installations. The device’s NEMA 5-20R compatibility and back-and-side wiring support help installers maximize panel density while maintaining code-compliant safety.
The TRGF20LA is cULus listed and NOM certified, meeting key safety and regulatory requirements for wiring devices used in both commercial and residential settings. These certifications support compliance in a wide range of projects and jurisdictions.
Warranty details are provided in Eaton’s warranty documentation. For field support, refer to Eaton's product resources and the ED Box packaging guidance. In practice, you’ll find replacement parts and technical documentation readily accessible through official Eaton channels.
