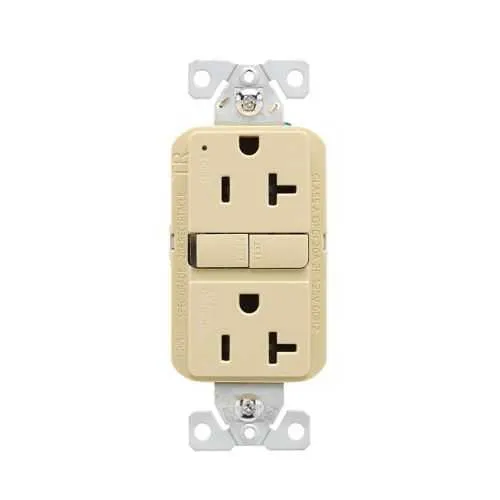

Eaton TRGF20V GFCI Receptacle - cULus Listed
Part Number: TRGF20V
Quick Summary
An Eaton slim GFCI receptacle delivers reliable ground-fault protection for 125V circuits in commercial and industrial enclosures. In crowded panels, designers battle limited space, retrofit challenges, and the need for dependable self-test safety. It carries cULus Listed and NOM certifications with FedSpec-compliant tamper-resistance, strengthening compliance and reliability in critical applications. The slim profile—4.19 in high, 1.69 in wide, 1.03 in deep—maximizes panel space while supporting back- and side-wire terminations for #14-10 AWG and a 16 lbf-in torque, reducing installation time and field errors, ultimately lowering total cost of ownership. This makes it a practical choice for electricians and panel builders aiming for faster installs and reliable protection.
Product Information
Extended Description
TRGF20V Eaton: Eaton tamper-resistant, self-test GFCI, 20A, 125V, Ivory, Slim design
Product Name
Eaton slim GFCI receptacle
Catalog Number
TRGF20V
UPC
032664013126
Product Length/Depth
1.03 in
Product Height
4.19 in
Product Width
1.69 in
Product Weight
3.9 lb
Warranty
Refer to warranty document.
Certifications
cULus Listed NOM
Special features
Slim design
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
GFCI
Packaging type
ED Box
Features
Tamper resistant FedSpec Certified
Wiring method
Back and side wire
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-in
Color
Ivory
Standard slim GFCI spec sheet
Standard slim GFCI spec sheet
Standard slim GFCI spec sheet
Standard slim GFCI spec sheet
Standard slim GFCI spec sheet
Standard slim GFCI spec sheet
Feature → Business Impact → Application: Slim design maximizes panel density and reduces enclosure footprint, enabling more efficient layouts and easier retrofits. This translates to faster installation, lower labor costs, and improved space utilization in control panels and wall enclosures where 20A, 125V outlets are required in tight spaces. The Eaton slim GFCI receptacle is ideal for new builds and retrofit projects in industrial cabinets and commercial walls. Feature → Business Impact → Application: Self-test, tamper-resistant GFCI ensures ongoing safety and compliance with NEC and FedSpec standards, reducing maintenance visits and warranty calls. It provides reliable protection against ground faults in critical equipment rows, data centers, and machine bays. Feature → Business Impact → Application: Back and side wiring with #14-10 AWG enables quick terminations and secure connections, lowering field errors and rework. This is particularly valuable in high-mix panel environments where speed and reliability matter. Feature → Business Impact → Application: NEMA 5-20R compatibility and 20A/125V rating support common industrial outlets, enabling seamless integration into existing wiring schemes and reducing the need for adapters or rewiring. Feature → Business Impact → Application: Slim Ivory finish and ED Box packaging simplify installation in visible or customer-facing panels, improving aesthetics and shipping/handling efficiency for installers and distributors.
Get a Quick Quote for a Eaton TRGF20V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRGF20V?
Enquire Now
FAQs
TRGF20V supports back and side wiring and accommodates #14-10 AWG conductors. Follow NEC guidelines, loosen the terminals, insert conductors per polarity, and torque to 16 lbf-in. Secure the device in an ED Box, ensuring the 5-20R configuration is correct and the unit remains within the enclosure’s space constraints. Verify self-test operation after wiring.
TRGF20V is a 20A, 125V GFCI receptacle with NEMA 5-20R configuration. It features a slim design, back and side wiring, and an Ivory finish. It is tamper-resistant and self-test capable, with a 16 lbf-in torque rating for secure connections and ED Box packaging for straightforward installation in commercial and light industrial settings.
TRGF20V carries cULus Listed and NOM certifications and offers FedSpec-compliant tamper resistance. These certifications support NEC compliance, facilitate regulatory approvals, and provide assurance to specifiers and customers that the product meets critical safety and performance benchmarks for commercial and industrial installations.
Yes. With 20A/125V GFCI protection, NEMA 5-20R configuration, tamper resistance, self-test capability, and a slim footprint, TRGF20V fits tight panel spaces in data centers, machine rooms, and control cabinets. Its back/side wiring and #14-10 AWG compatibility streamline installation and maintenance in high-density environments.
The slim form factor saves panel space and reduces total installation time, while self-test and tamper-resistant design lower ongoing maintenance costs and enhance safety compliance. The 20A/125V rating supports standard industrial circuits, and cULus NOM certifications help streamline regulatory approvals, contributing to lower lifecycle costs and faster project delivery.
