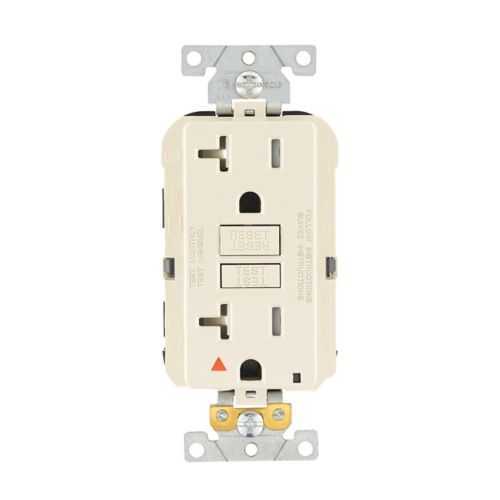

Eaton TRIGSGF15GY GFCI Receptacle - Isolated Ground, Self-Test
Part Number: TRIGSGF15GY
Quick Summary
The Eaton TRIGSGF15GY GFCI receptacle provides reliable ground fault protection for commercial wiring devices. In busy facilities, nuisance trips and retrofit compatibility can impede project timelines and uptime. This unit carries cULus Listed and NOM certifications, reinforcing safety and regulatory compliance in demanding environments. Built for industrial-grade performance, it combines isolated ground functionality with tamper resistance and a self-test feature, delivering safer outlets and fewer service calls. For engineers and procurement professionals, the TRIGSGF15GY offers predictable installation, long-term durability, and a level of electrical protection that supports compliance-driven maintenance programs and predictable operating costs.
Product Information
Extended Description
TRIGSGF15GY Eaton: Eaton GFCI receptacle,Tamper-resistant,Isolated ground,Self-test,#14 - 10 AWG,15A,Commercial,Extra heavy-duty industrial specification grade,Flush,125V,Back and side wire,Gray,Brass,PBT/Polycarbonate,5-15R,2-pole,3-wire,grounding,Decorator
Product Name
Eaton GFCI receptacle
Catalog Number
TRIGSGF15GY
UPC
032664767258
Product Length/Depth
1.31 in
Product Height
4.05 in
Product Width
1.36 in
Product Weight
0.4 lb
Certifications
cULus Listed NOM
Device type
Decorator duplex receptacle Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
Isolated ground Tamper resistant
Application
Commercial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back and side wire
Material
PBT
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Environmental conditions
Tamper resistant
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Decorator
Color
Gray
Combination type
Isolated ground GFCI
Design type
Isolated ground GFCI
Face/body material
PBT/polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRIGSGF15GY
Eaton Specification Sheet - TRIGSGF15GY
Feature → Business Impact → Application. Self-test capability continuously verifies the GFCI sensing circuitry, reducing unplanned downtime and maintenance costs while increasing system reliability in critical circuits. This translates to fewer emergency service visits and improved protection across manufacturing lines and commercial spaces where highly sensitive equipment requires dependable grounding. Application: ideal for decorator duplex receptacles in offices, data centers, and industrial facilities where safety compliance and quick fault isolation are paramount. The isolated-ground design minimizes electrical noise and protects sensitive electronic equipment, delivering cleaner power and better performance for controllers and drives in mid-size facilities. Feature → Back and side wiring with #14–10 AWG capability enables flexible terminations, supporting quick field installation and easier retrofits in crowded j-boxes or retrofit projects. Application: retrofit of aging outlets in warehouses and production floors where wiring access is mixed and space is constrained. Feature → Extra heavy-duty industrial specification grade and brass contact material provide robust endurance in high-traffic environments, improving life-cycle cost and reducing replacement cycles. Application: heavy-use areas such as loading docks, maintenance bays, and commercial kitchens where durability and reliability directly impact productivity. Feature → 125V, 15A GFCI with 5-15R configuration and decorator flush mount ensures a professional finish with consistent safety performance. Application: new-build or remodel projects requiring a compliant, aesthetically aligned receptacle that blends with modern industrial interiors. Feature → PBT/polycarbonate face/body and tamper-resistant construction offer corrosion resistance and vandal-resistance in harsh environments. Application: outdoor-rated or interior-industrial spaces where equipment must withstand daily wear while meeting electrical code requirements.
Get a Quick Quote for a Eaton TRIGSGF15GY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRIGSGF15GY?
Enquire Now
FAQs
The TRIGSGF15GY supports back and side wiring for #14 to 10 AWG conductors, allowing flexible termination in crowded or retrofit installations. To install, power off, remove the old receptacle, connect the hot and neutral conductors to the appropriate terminals, secure the ground, and mount flush for a clean finish. The isolated-ground GFCI design helps maintain signal integrity in sensitive control circuits.
This receptacle features self-test signaling to verify the GFCI sensing circuits automatically, reducing the risk of undetected faults. With 15A at 125V, brass contact material, and a PBT/polycarbonate body, it delivers durable performance under heavy daily use, while its isolated ground configuration minimizes electrical noise in critical equipment like drives and controllers.
Yes. It is designed for commercial use with extra heavy-duty industrial specification grade, a decorator flush mount, and a 5-15R configuration. Its tamper-resistant features add protection in high-traffic areas, and the isolated-ground GFCI design helps meet safety requirements in offices, corridors, and light-industrial spaces.
The TRIGSGF15GY is cULus Listed and NOM certified, ensuring compliance with both U.S. and Mexican electrical standards. These certifications support project approvals, reduce the need for additional approvals, and help ensure consistent safety performance across distributed facilities.
Self-testing circuitry reduces maintenance intervals by proactively confirming protection status, lowering downtime. Durable brass contacts and a robust PBT/polycarbonate body extend service life, decreasing replacement costs. For facilities with frequent receptacle use, these features translate into lower total cost of ownership and improved operational uptime.
