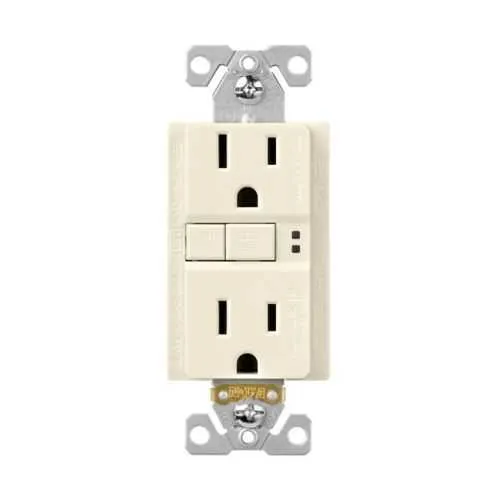

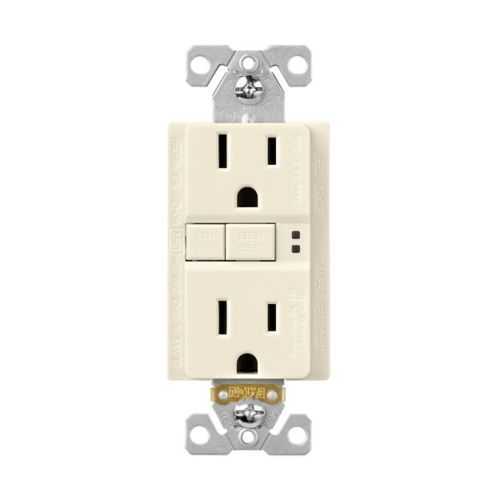

Eaton TRSGF15FLA GFCI Receptacle - Self-test NAFTA
Part Number: TRSGF15FLA
Quick Summary
Eaton GFCI receptacle delivers reliable ground-fault protection for residential and commercial outlets. Installers often wrestle with nuisance trips and wiring mistakes, but the TRSGF15FLA’s back- and-side wiring and flush mounting simplify connections. It carries cULus Listed and NOM certifications with NAFTA compliance, signifying broad North American safety approvals. Coupled with a durable polycarbonate body and tamper-resistant construction, it supports fast, code-compliant installations while delivering long-term value for facility managers and electrical distributors.
Product Information
Extended Description
TRSGF15FLA Eaton: Eaton GFCI receptacle,NAFTA compliant,Tamper resistant,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V,Back and side wire,Light almond,Brass,Tamper resistant,Polycarbonate,5-15R,2-pole,Three-wire,2-pole,3-wire,grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGF15FLA
UPC
032664743634
Product Length/Depth
4.71 in
Product Height
4.751 in
Product Width
2.86 in
Product Weight
0.38 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
NAFTA compliant Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Color
Light almond
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRSGF15FLA
Eaton Specification Sheet - TRSGF15FLA
Feature: 15A, 125V GFCI with self-test. Business Impact: Delivers reliable ground-fault protection that helps meet code requirements while minimizing downtime from nuisance faults. Application: Ideal for residential and commercial outlets in offices, schools, and hospitality environments. Feature: Tamper-resistant and NAFTA compliant. Impact: Reduces accidental contact and simplifies cross-border procurement with consistent compliance. Application: Suitable for high-traffic areas where safety and regulatory alignment matter. Feature: Back and side wiring for #14-10 AWG. Impact: Facilitates versatile installation and faster terminations, saving labor costs. Application: New installations and upgrades in retrofit projects. Feature: Flush, 2-pole, 3-wire grounding, NEMA 5-15R. Impact: Clean fit in standard electrical boxes with reliable grounding. Application: Residential and commercial outlets in wall plates. Feature: Brass contact material, PVC/polycarbonate face/body; light almond finish. Impact: Durable contacts and housing with easy coordination to existing interiors. Application: Daily-use environments across commercial spaces. Feature: Torque rating of 16 lbf-in. Impact: Ensures secure connections and consistent performance. Application: Field installation and service.
Get a Quick Quote for a Eaton TRSGF15FLA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRSGF15FLA?
Enquire Now
FAQs
Begin by turning off the circuit, remove the existing receptacle, and identify line and load terminals. Use back- and side-wiring to terminate #14–10 AWG conductors, tighten to 16 lbf-in torque, and secure the unit flush in the box. After wiring, test using the built-in self-test to verify proper ground fault protection.
This receptacle is 15A, 125V with a GFCI interlock. It supports back- and side-wire termination for #14–10 AWG conductors, features a NEMA 5-15R configuration, is two-pole, three-wire with grounding, and uses brass contacts in a PVC/polycarbonate housing.
Yes. The device is specified for ResidentialCommercial use, making it appropriate for homes, offices, schools, and other commercial environments that require reliable ground-fault protection and tamper-resistant construction.
The TRSGF15FLA is cULus Listed, NOM certified, and NAFTA compliant. These certifications indicate conformance to North American safety standards, facilitate cross-border procurement, and support compliance with regional electrical codes in both residential and commercial projects.
The built-in self-test reduces the likelihood of unnoticed device failure, improving ongoing safety. Tamper-resistant design lowers risk of objects being inserted into outlets, reducing repair costs. With straightforward back- and side-wiring and durable materials, installation time is shorter and long-term maintenance costs are lowered for facilities teams.
