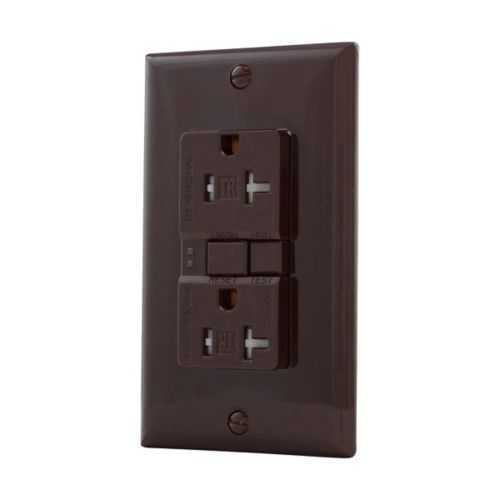

Eaton TRSGF20FB GFCI Receptacle - Tamper Resistant
Part Number: TRSGF20FB
Quick Summary
Eaton GFCI receptacle is a self-testing 20A wall outlet ideal for residential and commercial spaces. It helps prevent nuisance shocks and simplifies wiring with back and side connections. Certified as cULus Listed and NOM, NAFTA compliant, it aligns with U.S., Canadian, and Mexican electrical codes. The 125 V, 20 A GFCI protection and 5-20R configuration enable flexible use across diverse projects. Choosing this Eaton device supports faster installations, reduces service calls, and improves safety at scale thanks to tamper-resistant construction, brass contacts, and a robust polycarbonate body. For engineers and procurement teams, such features translate to reliable performance in high-traffic areas.
Product Information
Extended Description
TRSGF20FB Eaton: Eaton GFCI receptacle,NAFTA compliant,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Brown,Brass,Receptacle,Tamper resistant,Polycarbonate,5-20R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGF20FB
UPC
032664743665
Product Length/Depth
4.71 in
Product Height
2.01 in
Product Width
2.86 in
Product Weight
0.38 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
NAFTA compliant Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Brown
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRSGF20FB
Eaton Specification Sheet - TRSGF20FB
Feature: Self-test functionality automatically checks the internal circuitry, ensuring ongoing protection without manual intervention → Business Impact: Reduces risk of undetected faults and minimizes downtime due to unexpected trips → Application: Ideal for entrances, kitchens, and busy commercial spaces where routine safety verification is critical. Feature: 20A, 125V rating with GFCI protection → Business Impact: Delivers reliable shock protection on standard branch circuits, enabling code-compliant installations and reducing liability → Application: Suitable for both residential remodels and new commercial builds that demand fast, compliant power protection. Feature: Back and side wiring with #14 to #10 AWG capacity → Business Impact: Streamlines field installation and preserves conductor compatibility, cutting install time and errors → Application: Efficient in retrofit projects and shared service panels where wiring access varies. Feature: Tamper-resistant, flush mounting, brown face, and durable PVC/polycarbonate construction → Business Impact: Enhances safety in high-traffic environments and extends product life in harsh conditions → Application: Hospitals, schools, and hospitality settings requiring robust, low-maintenance outlets. Feature: NEMA configuration 5-20R, two-pole three-wire grounding, and 16 lbf-in torque rating → Business Impact: Ensures secure, compliant connections with predictable torque, reducing maintenance calls → Application: New builds and refurbishments that demand consistent receptacle performance across locations. Feature: NAFTA compliant and cULus Listed with NOM → Business Impact: Facilitates cross-border procurement and compliance, reducing regulatory barriers and project delays → Application: Multi-country installations across North America.
Get a Quick Quote for a Eaton TRSGF20FB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRSGF20FB?
Enquire Now
FAQs
To install the TRSGF20FB, disconnect power and remove the existing outlet. Use the back and side wiring terminals to connect #14 through #10 AWG conductors per your local code, tighten to the 16 lbf-in torque rating, and mount flush within the wall box. Verify line/load orientations and test the unit using the built-in self-test feature after restoration of power.
The TRSGF20FB provides 125V, 20A GFCI protection with self-test functionality, tamper-resistant design, and a durable brown polycarbonate body. Its NEMA 5-20R configuration, back/side wiring capability for #14-#10 AWG, and NAFTA/cULus/NOM certifications ensure safety, reliability, and cross-border compatibility for diverse settings from homes to light commercial spaces.
Yes. The TRSGF20FB uses a NEMA 5-20R receptacle configuration and supports wiring methods for #14 to #10 AWG conductors. It also features a 16 lbf-in torque rating for secure terminations and a flush mounting style to ensure a neat installation that meets typical electrical codes.
This receptacle is cULus Listed and NOM certified and NAFTA compliant, aligning with North American safety standards. These certifications help ensure regulatory compliance in the United States, Canada, and Mexico, reduce project risk, and streamline procurement for multi-region installations.
Perform monthly external tests using the built-in self-test feature to verify protection is active. If the test or reset behavior indicates a fault, replace the unit promptly and inspect wiring connections. Regular checks help maintain rapid fault detection and consistent protection for critical outlets in high-traffic areas.
