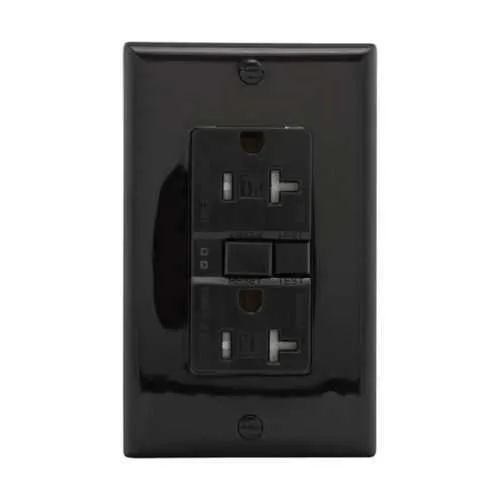

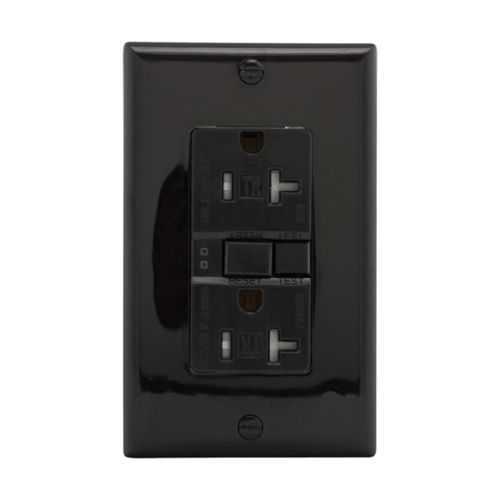

Eaton TRSGF20FBK GFCI Receptacle - NAFTA Compliant
Part Number: TRSGF20FBK
Quick Summary
GFCI receptacle from Eaton provides ground fault protection for residential and commercial circuits. Engineers and installers often face challenges with tamper resistance, reliable self-test features, and wiring compatibility under tight project timelines. This device carries NOM and cULus listings, is NAFTA compliant, and offers tamper-resistant design with a self-test function to maintain safety compliance. Designed for flush mounting in both new builds and renovations, it supports back and side wiring with #14–10 AWG, delivering dependable protection while reducing service calls and warranty returns. The result is safer installations, simplified procurement, and a clearer path to ongoing regulatory compliance.
Product Information
Extended Description
TRSGF20FBK Eaton: Eaton GFCI receptacle,NAFTA compliant,Tamper resistant,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Black,Brass,Receptacle,Tamper resistant,Polycarbonate,5-20R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGF20FBK
UPC
032664743672
Product Length/Depth
4.71 in
Product Height
4.751 in
Product Width
2.86 in
Product Weight
0.38 lb
Certifications
NOM cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
NAFTA compliant Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Black
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRSGF20FBK
Eaton Specification Sheet - TRSGF20FBK
Feature → Business Impact → Application: GFCI receptacle with self-test provides ongoing protection and reduces nuisance trips, improving installer confidence and end-customer safety in daily operations. Application: Ideal for residential and commercial spaces where moisture or hand contact risk exists, including kitchens, bathrooms, and wet locations; supports flush mounting for clean, space-saving installations. Feature → Back and side wiring capable of #14–10 AWG reduces field wiring limits and speeds up commissioning, decreasing labor costs on multi-outlet projects. Application: Suitable for retrofit or new construction where wiring versatility matters. Feature → 20A, 125V GFCI with brass contacts ensures reliable current transfer and long-term durability, translating to lower replacement intervals and ongoing safety compliance. Application: Industrial-adjacent environments or public areas requiring high reliability and regulatory alignment. Feature → NAFTA compliant, NOM and cULus listed, tamper-resistant and self-test enable consistent cross-border procurement and audit-friendly compliance. Application: Projects spanning multiple regions or facilities seeking streamlined supply chains and certified protection.
Get a Quick Quote for a Eaton TRSGF20FBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRSGF20FBK?
Enquire Now
FAQs
The TRSGF20FBK supports flush mounting with both back and side wiring options, accommodating #14 to 10 AWG conductors. Installers should torque to 16 lbf-in for secure terminations, ensuring full grounding and reliable protection. This versatility simplifies retrofit projects and reduces the need for additional boxes or adaptors, speeding up on-site wiring and inspection processes.
Key specifications include a 20A amperage rating, 125V voltage rating, and a GFCI circuit interrupter type. It is a self-test, tamper-resistant receptacle with brass contact material and a NEMA 5-20R configuration. It supports #14–10 AWG wiring and offers back and side wiring for flexible installation in diverse commercial and residential applications.
Yes. The receptacle is designed for residential and commercial applications, featuring a flush mount and back/side wiring compatibility. It supports 125V circuits up to 20A and includes tamper-resistant, self-test functionality to meet typical building codes and safety standards across both home and workplace environments.
This GFCI receptacle carries NOM and cULus listings and is NAFTA compliant, offering cross-border acceptance and regulatory alignment. These certifications validate safety performance, material quality, and installation reliability, reducing audit risk and streamlining procurement when working on projects in North America.
Prospective ROI stems from enhanced safety, reduced repair and call-back costs, and fewer nuisance trips due to self-test functionality. The NAFTA and NOM/cULus certifications simplify compliance across regions, while back/side wiring and flush mounting speed up installation, lowering labor costs on large scale residential or commercial deployments.
