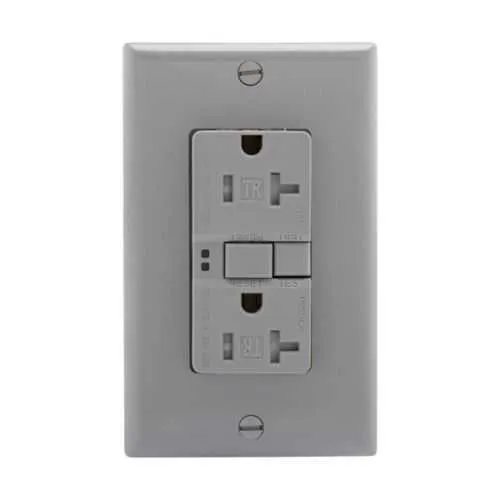

Eaton TRSGF20FGY GFCI Receptacle - NAFTA Compliant Self-Test
Part Number: TRSGF20FGY
Quick Summary
The Eaton TRSGF20FGY GFCI receptacle provides ground fault protection for residential and commercial outlets. Installers often face challenges meeting safety codes while keeping wiring compact and reliable. This unit delivers NAFTA‑compliant performance, tamper‑resistant construction, and a self‑test feature to simplify ongoing compliance. With NOM cULus Listed certification, it's suited for North American applications and cross-border projects. The flush‑mount design and back‑and‑side wiring options help reduce installation time and improve finish quality in dense panels. By combining robust brass contacts, a corrosion‑resistant polycarbonate face, and a 16 lbf‑in torque requirement, this receptacle supports durable, code‑compliant operations and often lowers service calls for preventive maintenance.
Product Information
Extended Description
TRSGF20FGY Eaton: Eaton GFCI receptacle,NAFTA compliant,Tamper resistant,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Gray,Brass,Receptacle,Tamper resistant,Polycarbonate,5-20R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGF20FGY
UPC
032664743689
Product Length/Depth
4.71 in
Product Height
2.01 in
Product Width
2.86 in
Product Weight
0.38 lb
Certifications
NOM cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
NAFTA compliant Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Gray
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRSGF20FGY
Eaton Specification Sheet - TRSGF20FGY
Self-test GFCI functionality provides continuous safety verification, reducing manual inspections and the risk of undetected ground faults in critical circuits. Business impact: lower maintenance costs and higher system reliability for kitchens, bathrooms, and commercial restrooms where code compliance is mandatory. Application: residential and light commercial wiring projects benefit from proactive fault detection and streamlined commissioning. Tamper-resistant construction protects occupants, lowers liability, and aligns with modern safety codes for public and family spaces. Application: schools, offices, and multi‑unit dwellings gain safer outlets with fewer child-access risks. Back and side wiring supports flexible terminations up to #14–10 AWG, speeding installation and enabling easier field modifications. NEMA 5-20R, 20A, 125V configuration ensures broad compatibility with typical branch circuits. Flush mounting reduces visible protrusion, improves aesthetics, and simplifies enclosure design. Brass contact material and polycarbonate face deliver durability under frequent use in demanding environments. Application: high-traffic areas and enduring installations require robust, reliable receptacles with predictable performance.
Get a Quick Quote for a Eaton TRSGF20FGY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRSGF20FGY?
Enquire Now
FAQs
To install the TRSGF20FGY, power off the circuit, remove the existing receptacle, and feed #14–10 AWG wires into back and side clamp terminals per the wiring method. Tighten terminals to 16 lbf-in torque, then mount flush in the box. Verify grounding and use the self-test function after wiring to confirm operation.
Yes. The TRSGF20FGY is NAFTA compliant and NOM cULus Listed, making it suitable for cross-border projects in the U.S., Canada, and Mexico. It supports residential and commercial wiring with a 20A, 125V rating in a NEMA 5-20R footprint, helping you meet regulatory expectations while simplifying procurement for multi-country deployments.
The TRSGF20FGY uses a NEMA 5-20R configuration, delivering 20A at 125V with two-pole, three-wire grounding. Back and side wiring accommodates #14–10 AWG conductors, and its flush mount keeps outlets recessed for clean panel aesthetics. These features support reliable, code-compliant outlets in offices, lobbies, and light commercial spaces.
Expect tamper-resistant construction, self-test functionality, NOM cULus Listed certification, and NAFTA compliance. The device uses brass contact material for durability and a polycarbonate face for impact resistance. It is rated 20A at 125V and mounts flush in standard boxes, suitable for residential and commercial installations requiring robust protection.
rely on the built‑in self‑test to periodically verify ground fault detection. Additionally, perform a manual test monthly by pressing the TEST button to confirm the receptacle trips properly and the power is restored on RESET. Inspect for physical damage, secure wiring, and ensure the flush mount remains intact to maintain protection.
