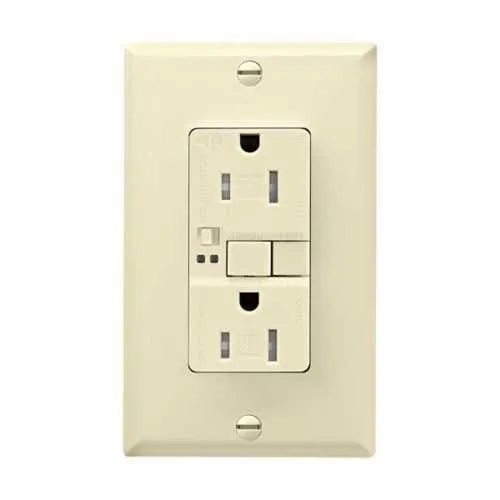

Eaton TRSGFA15A GFCI Receptacle - UL Listed

Part Number: TRSGFA15A
Manufacturer
Eaton
Part number
TRSGFA15A

Quick Summary

Eaton TRSGFA15A GFCI receptacle provides reliable ground-fault protection for residential and commercial outlets. When devices lack self-test and audible alarm, faults can go undetected, risking safety, nuisance trips, and code non-compliance. CSA Certified, cULus Listed, UL Listed, and NOM certifications ensure regulatory acceptance across markets, supporting faster approvals and installation lead times. Built with a durable polycarbonate face and brass contacts, this flush-mounted receptacle supports back and side wiring for #14–10 AWG, delivering robust performance in real-world wiring. With a 15A, 125V rating and a NEMA 5-15R configuration, it easily integrates into standard circuits while meeting tamper-resistant and self-test requirements.

Product Information

Extended Description

TRSGFA15A Eaton: Eaton GFCI receptacle,Audible alarm,Tamper resistant,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Almond,Brass,Receptacle,Tamper resistant,Polycarbonate,5-15R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGFA15A
UPC
032664747991
Product Length/Depth
2.815 in
Product Height
4.626 in
Product Width
2.008 in
Product Weight
0.398 lb
Certifications
CSA Certified cULus Listed UL Listed NOM
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
Audible alarm Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Almond
Face/body material
Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Audible alarm and self-test provide immediate fault indication and independent safety verification, reducing downtime and service calls. The audible alert notifies occupants of ground-fault conditions without relying on visual indicators alone, while the self-test periodically verifies protection circuitry. This combination supports safer installations in kitchens, bathrooms, and workspaces, aligning with NEC requirements and industry best practices. Tamper-resistant design and dual wiring options meet modern safety codes and facilitate easier retrofits. By preventing child access and enabling back and side wiring for #14–10 AWG, electricians can adapt to existing boxes, accelerating installation in both new builds and upgrades. Standard NEMA 5-15R configuration and flush mounting deliver familiar fit and clean aesthetics in box environments, reducing replacement cycles and unsightly protrusions in finished spaces. Durability is enhanced by a polycarbonate face and brass contacts, with a 16 lbf-in torque rating ensuring secure terminations that minimize heat and arcing risk. Compatibility with multiple code regimes, including CSA, cULus, UL, and NOM, simplifies procurement and inspection across facilities. The almond color and rugged construction support long-term ownership in busy environments where social trust and reliability matter.

Get a Quick Quote for a Eaton TRSGFA15A

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton TRSGFA15A? Enquire Now

FAQs

The TRSGFA15A supports flush mounting with back and side wiring for #14–10 AWG conductors, delivering a standard NEMA 5-15R receptacle suitable for residential or light commercial boxes. Terminations use a torque value of 16 lbf-in to ensure secure connections, reducing heat buildup and arcing risk over the device’s service life.
It features tamper-resistant construction and an audible alarm plus self-test capability. These features provide proactive fault detection, occupant notification, and automatic verification of protection circuitry, lowering maintenance costs and improving compliance in both new installations and retrofits.
Yes. Designed for residential and light commercial applications, it uses a NEMA 5-15R configuration, flush mounting, and #14–10 AWG wiring compatibility. Its tamper-resistant, self-test, and audible alarm features help meet modern safety codes across homes, offices, and common-use spaces.
The TRSGFA15A is CSA Certified, cULus Listed, UL Listed, and NOM certified, indicating compliance with recognized safety standards in multiple markets. These certifications simplify procurement, inspections, and project approvals, particularly for multi-site installations and regulated facilities.
Use #14–10 AWG conductors with back or side wiring, tighten terminations to 16 lbf-in, and mount flush to prevent nuisance trips and moisture ingress. Leverage the self-test and audible alarm to monitor protection integrity, and replace the device at the first sign of wear or damage to sustain long-term electrical safety.
