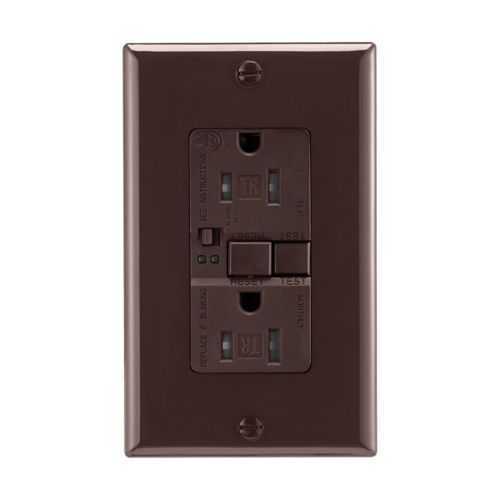

Eaton TRSGFA15B GFCI Receptacle - UL Listed, Audible Alarm
Part Number: TRSGFA15B
Quick Summary
GFCI receptacle is a protective outlet that detects ground faults and protects people in residential and commercial spaces. This model addresses common installation and maintenance pain points by combining reliability with easy testing and clear fault indication. It carries CSA Certified, UL Listed, and cULus Listed certifications to help ensure code compliance and risk management across projects. For engineers and facility managers, the TRSGFA15B delivers operational safety, consistent performance, and simplified procurement, supported by back and side wiring for flexible installations and a flush mounting profile that looks professional in finished spaces. Secondary considerations include compatibility with #14–10 AWG conductors and the 5-15R configuration for versatile outlet deployment.
Product Information
Extended Description
TRSGFA15B Eaton: Eaton GFCI receptacle,Audible alarm,Tamper resistant,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Brown,Brass,Receptacle,Tamper resistant,Polycarbonate,5-15R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGFA15B
UPC
032664748004
Product Length/Depth
2.815 in
Product Height
4.626 in
Product Width
2.008 in
Product Weight
0.398 lb
Certifications
CSA Certified NOM UL Listed cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
Audible alarm Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Brown
Face/body material
Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRSGFA15B
Eaton Specification Sheet - TRSGFA15B
Feature: Self-test operation provides ongoing verification of receptacle integrity without manual testing. Business Impact: Reduces unplanned downtime and ensures ongoing protection for occupants, lowering maintenance costs over the life of the installation. Application: Ideal for new buildouts and retrofit projects in offices and clinics where continuous safety monitoring matters. The TRSGFA15B is designed to meet daily-use demands with dependable fault detection and audible alerts that quickly inform users of a fault condition. Feature → Business Impact → Application: Audible alarm complements the self-test by delivering immediate notification, improving response times during inspections and repairs in industrial workplaces. Application: Service corridors, laboratories, and light-commercial environments benefit from clear fault signaling and rapid remediation. Feature: Tamper resistant construction enhances safety in high-traffic areas such as schools and retail spaces, reducing the risk of exposed wiring. Business Impact: Improves regulatory compliance and reduces incident risk. Application: Any environment requiring enhanced child-safety and durable residential/commercial engagement. Feature: Back and side wiring supports versatile field configurations, enabling #14–10 AWG conductors and easy hotspot commissioning. Business Impact: Speeds up installation and reduces material handling, cutting labor time by aligning with common electrical practices. Application: Retrofit projects and new installations where wiring flexibility matters. Feature: Flush mounting provides a clean, code-compliant finish that integrates with standard electrical boxes. Business Impact: Improves aesthetics and reduces trim and finishing costs. Application: Office spaces, hotels, and healthcare facilities where appearance and reliability matter.
Get a Quick Quote for a Eaton TRSGFA15B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRSGFA15B?
Enquire Now
FAQs
The TRSGFA15B supports back and side wiring for #14–10 AWG conductors and flush mounting, making it compatible with standard wall boxes used in commercial renovations and new installations. It uses a 5-15R NEMA configuration and is designed for 125V, 15A circuits, ensuring straightforward replacement in existing outlets.
This model is a 15A, 125V GFCI receptacle with a self-test feature and audible alarm. It uses brass contact material, back and side wiring, and accommodates #14–10 AWG conductors, with a NEMA 5-15R configuration and a torque rating of 16 lbf-inch.
Yes. The device is designed for both residential and commercial applications, delivering tamper-resistant protection and audible fault signaling. Its flush-mount design and polycarbonate face are appropriate for homes, offices, clinics, and light-commercial environments.
The TRSGFA15B is CSA Certified, UL Listed, and cULus Listed, providing third-party assurance of safety and compliance with key electrical standards. These certifications support code adherence during inspections and help mitigate regulatory risk in projects.
Automatic self-testing reduces manual checks, while the audible alarm signals faults or testing events. To validate continued protection, perform a periodic field-provided test using the built-in test function and ensure the alarm and LED indicators function as expected during routine maintenance and safety audits.
