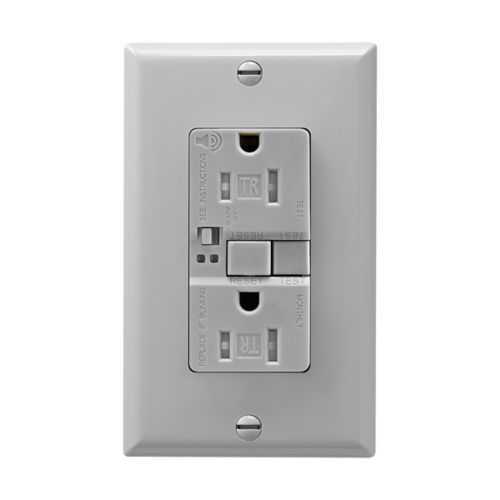

Eaton TRSGFA15GY Receptacle - Self-test Audible Alarm GFCI
Part Number: TRSGFA15GY
Quick Summary
The Eaton GFCI receptacle TRSGFA15GY is a reliable fault-protection solution for residential and commercial outlets. This unit addresses common field challenges such as nuisance trips, tamper risk, and wiring constraints by offering back- and side-wire connections within a compact flush-mount profile. It carries UL Listed, cULus Listed, and NOM CSA Certified authorities, ensuring broad code compliance and market acceptance. In addition to the 125 V, 15 A rating, the audible alarm and self-test features reduce maintenance cycles and support proactive safety management. Durable polycarbonate construction with brass contacts delivers long-term reliability, while straightforward installation helps facilities teams meet deadlines and minimize lifecycle costs.
Product Information
Extended Description
TRSGFA15GY Eaton: Eaton GFCI receptacle,Audible alarm,Tamper resistant,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Gray,Brass,Receptacle,Tamper resistant,Polycarbonate,5-15R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGFA15GY
UPC
032664748028
Product Length/Depth
2.815 in
Product Height
4.626 in
Product Width
2.008 in
Product Weight
0.398 lb
Certifications
NOM CSA Certified cULus Listed UL Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
Audible alarm Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Gray
Face/body material
Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRSGFA15GY
Eaton Specification Sheet - TRSGFA15GY
Audible alarm improves fault visibility, enabling rapid response to ground-fault events and reducing downtime for critical circuits. This feature translates to safer patient care areas, commercial kitchens, and industrial spaces where immediate awareness matters. Tamper-resistant design minimizes child-related tampering and keeps outlets compliant with modern safety codes, reducing liability and call-backs. The self-test capability verifies protection automatically, lowering the risk of unnoticed degradation and ensuring ongoing code compliance with minimal manual checks. Back- and side-wire wiring supports versatile field wiring, accommodating #14–10 AWG conductors and enabling faster, more reliable terminations with a recommended torque of 16 lbf-in. The flush-mount configuration, gray polycarbonate face, and brass contacts deliver a professional finish and durable performance, reducing maintenance cycles and replacement costs over the life of the facility. This receptacle is compatible with 5-15R configurations and supports residential and commercial installations across multiple building types, contributing to safer, code-compliant, and cost-efficient electrical systems.
Get a Quick Quote for a Eaton TRSGFA15GY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRSGFA15GY?
Enquire Now
FAQs
The TRSGFA15GY supports back- and side-wire connections and accepts conductors from #14 to #10 AWG. It is designed for 125V, 15A circuits and requires a torque of 16 lbf-in on the terminals. Its flush-mount design simplifies installation in wall boxes and helps ensure a neat, code-compliant finish in residential and commercial applications.
This receptacle carries UL Listed, cULus Listed, NOM CSA Certified, and CSA Certified marks, indicating broad regulatory compliance for both U.S. and Canadian installations. These certifications support acceptance across commonly referenced electrical codes and reduce the risk of noncompliance during inspections.
The audible alarm provides immediate fault indication, enabling rapid response and reducing the risk of extended exposure to ground faults. The self-test feature routinely verifies protective functionality, catching potential degradation before it affects occupants or equipment. Together, they lower maintenance costs by reducing unnecessary site visits and ensuring ongoing protection.
Yes. The TRSGFA15GY is a 125V, 15A GFCI receptacle with NEMA 5-15R configuration, flush mounting, and tamper-resistant construction, making it suitable for kitchens, bathrooms, offices, and light industrial spaces. Its gray polycarbonate body and brass contacts provide durability and a professional finish suitable for varied environments.
Plan for back- and side-wire termination with #14–10 AWG conductors, secure terminals to the recommended 16 lbf-in torque, and select flush mounting to maintain clearance and safety. Verify the device is installed in accordance with local electrical codes (UL/cULus/NOM CSA certified) and that it is used with a compatible 5-15R receptacle configuration for reliable, compliant operation.
