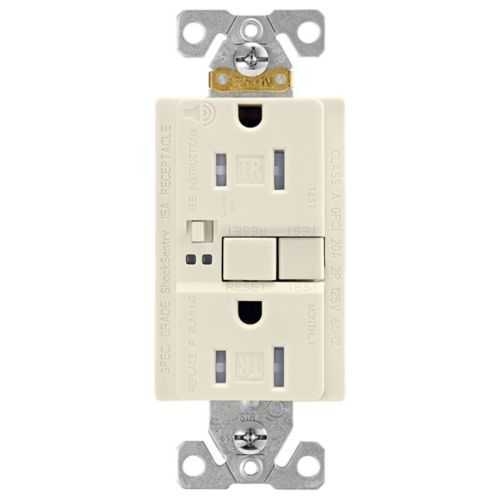

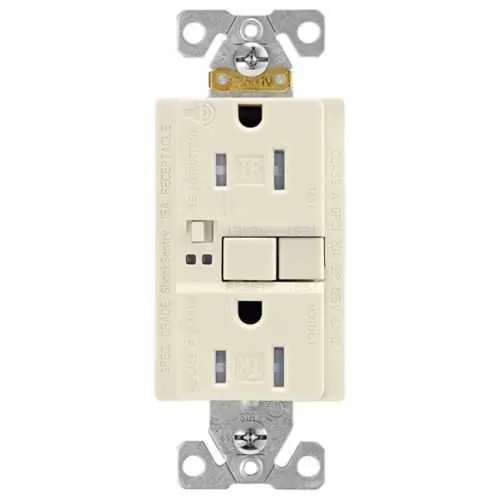

Eaton TRSGFA15LA GFCI Receptacle - Self-Test Audible Alarm
Part Number: TRSGFA15LA
Quick Summary
GFCI Receptacle provides ground-fault protection for indoor outlets in residential and commercial installations. Installing this device can be challenging when you need tamper resistance, audible alerts, and a reliable self-test that doesn’t slow project timelines. UL Listed, CSA Certified, NOM cULus Listed certifications ensure compliance across residential and commercial codes, delivering safety you can trust. The Eaton TRSGFA15LA combines back- and side-wire options with flush mounting and a durable polycarbonate face, supporting efficient procurement, installation speed, and ongoing maintenance in busy facilities. This model’s 15A, 125V rating and brass contacts align with typical branch circuits, while its audible alarm and self-test simplify commissioning and ongoing safety audits.
Product Information
Extended Description
TRSGFA15LA Eaton: Eaton GFCI receptacle,Audible alarm,Tamper resistant,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Light almond,Brass,Receptacle,Tamper resistant,Polycarbonate,5-15R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGFA15LA
UPC
032664748035
Product Length/Depth
2.815 in
Product Height
4.626 in
Product Width
2.008 in
Product Weight
0.398 lb
Certifications
UL Listed CSA Certified NOM cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
Audible alarm Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Light almond
Face/body material
Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRSGFA15LA
Eaton Specification Sheet - TRSGFA15LA
Self-test and audible alarm deliver immediate fault detection and user notification, reducing commissioning time and improving code compliance in every installation. This leads to faster inspections and lower risk of undetected ground faults in critical spaces, especially when wiring runs are long or complex, such as multi-suite commercial projects. Tamper-resistant construction enhances safety for occupied spaces and aligns with modern electrical codes, decreasing the likelihood of accidental shock and subsequent warranty or remediation costs. The device supports back- and side-wire connections for flexible field terminations and faster site wiring, accommodating #14 to 10 AWG conductors to fit varied circuit ratings without sacrificing reliability. Its flush mounting and surface-appropriate light almond finish offer a clean aesthetic that blends with most interiors, simplifying product selection during procurement and reducing rework. Brass contact material ensures durable, low-resistance connections that maintain consistent protection over the life of the outlet, supporting ongoing maintenance efficiency and reduced downtime. With a standard NEMA 5-15R configuration at 15A and 125V, it’s compatible with a broad range of common plugs and power cords, streamlining retrofits and new builds alike, while the polycarbonate face resists wear and impact in busy commercial environments.
Get a Quick Quote for a Eaton TRSGFA15LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRSGFA15LA?
Enquire Now
FAQs
Begin by turning off power and removing the existing receptacle. Prepare #14 to 10 AWG conductors, strip to the correct length, and follow the device's back- and side-wire terminals. Tighten lugs to the recommended torque (16 lbf-in) and verify a solid, noise-free connection before re-assembling the faceplate. This approach speeds installation while ensuring a secure, code-compliant termination.
The TRSGFA15LA is UL Listed, CSA Certified, and NOM cULus Listed. These certifications confirm conformity with safety and performance standards across residential and commercial installations, supporting regulatory compliance and project acceptance without additional testing.
Yes. The tamper-resistant design enhances safety in busy environments, and the audible self-test alert accelerates fault identification during commissioning and routine maintenance. The 15A, 125V rating and standard NEMA 5-15R configuration provide reliable performance for everyday commercial loads while maintaining compliance with modern safety codes.
This receptacle supports back and side wiring with an allowable wire range of #14 to 10 AWG. This flexibility accommodates a variety of branch circuits, simplifies upgrades, and reduces the need for rewiring when upgrading existing outlets in renovation projects.
The audible alarm provides immediate fault notification, reducing troubleshooting time and post-install calls. Combined with the self-test feature, it lowers the risk of undetected failures, preserving equipment life, shortening commissioning cycles, and delivering measurable cost savings over the outlet’s lifecycle.
