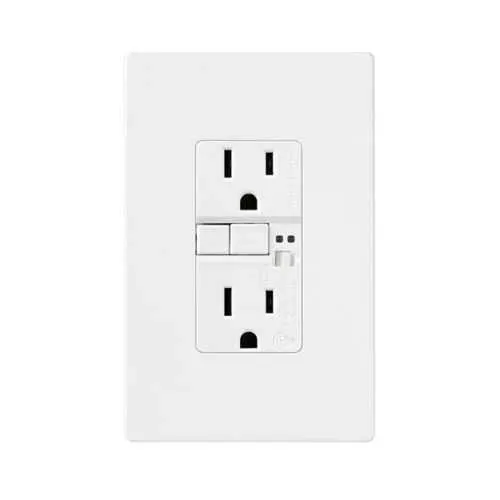

Eaton TRSGFA15W GFCI Receptacle - Self-test
Part Number: TRSGFA15W
Quick Summary
The Eaton TRSGFA15W GFCI receptacle delivers reliable ground-fault protection for residential and commercial outlets. Electricians and facility managers often struggle with outlets that lack self-test capability and audible alerts, increasing risk of unseen faults and regulatory noncompliance. This model addresses those challenges with a built-in self-test and audible alarm, helping maintenance teams verify protection quickly and reduce down-time. It carries UL Listed, cULus Listed, CSA Certified marks, with NOM recognition in applicable regions, ensuring regulatory readiness on diverse projects. Designed for 125 V circuits at 15 A with back-and-side wiring, it mounts flush for a clean finish in kitchens, bathrooms, and common areas, delivering safety, reliability, and cost savings across facilities.
Product Information
Extended Description
TRSGFA15W Eaton: Eaton GFCI receptacle,Audible alarm,Tamper resistant,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,White,Brass,Receptacle,Tamper resistant,Polycarbonate,5-15R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGFA15W
UPC
032664748059
Product Length/Depth
2.815 in
Product Height
4.626 in
Product Width
2.008 in
Product Weight
0.41 lb
Certifications
UL Listed cULus Listed CSA Certified NOM
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
Audible alarm Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
White
Face/body material
Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRSGFA15W
Eaton Specification Sheet - TRSGFA15W
Self-test GFCI with audible alarm provides automated safety verification, reducing manual testing and accelerating compliance audits in both new installs and retrofits. This minimizes downtime during commissioning and lowers long-term maintenance costs by catching trip mechanism faults early. Tamper-resistant construction with brass contacts and a durable polycarbonate face adds reliability in high-traffic spaces like schools and offices, improving safety standards and reducing replacement cycles. Back- and side-wiring support for #14–10 AWG enables flexible installation across various wiring methods, streamlining field work and minimizing material handling. Flush mounting delivers a neat, code-compliant finish in kitchens and bathrooms while preserving wall space and aesthetic. A 15 A, 125 V, NEMA 5-15R receptacle with a 16 lbf-in torque rating ensures secure terminations, predictable performance, and long service life in demanding environments. Its certifications—UL Listed, cULus Listed, CSA Certified, NOM where applicable—bolster project approvals and cross-border compliance, reducing project risk and inspection time.
Get a Quick Quote for a Eaton TRSGFA15W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRSGFA15W?
Enquire Now
FAQs
Power down the circuit, remove the existing receptacle, and strip conductors to the correct length. Connect #14–10 AWG conductors to the back or side terminals per label instructions, tighten to the 16 lbf-in torque spec, and secure the device in a flush-mount box. After wiring, perform the self-test and verify the outlet immediately trips and resets correctly.
The TRSGFA15W is UL Listed, cULus Listed, and CSA Certified, with NOM recognition in applicable regions. These certifications indicate compliance with safety, performance, and regional electrical codes, reducing inspection time and streamlining multi-country deployments for commercial and residential projects.
Yes. The tamper-resistant design, audible alarm, and self-test feature make it ideal for moisture-prone areas. Back- and side-wiring support, 15A at 125V, and flush mounting help achieve code-compliant, aesthetically clean retrofits in kitchens, bathrooms, and other high-traffic spaces.
The TRSGFA15W is a 15A, 125V GFCI receptacle with a NEMA 5-15R configuration. It accepts #14–10 AWG conductors and supports back- and side-wiring. The device uses brass contact material and requires a torque of 16 lbf-in for secure terminations, ensuring reliable operation in daily commercial and residential use.
The built-in self-test automatically verifies trip functionality, reducing manual testing and regulatory checks. The audible alarm provides immediate fault indication, cutting down service calls and downtime. Over time, this improves safety compliance, accelerates commissioning, and lowers total cost of ownership for facilities with frequent outlet usage.
