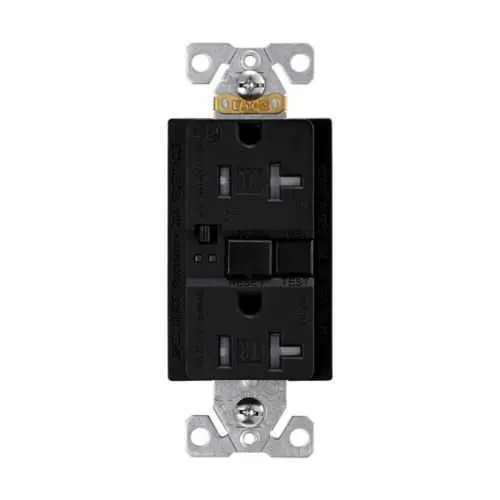

Eaton GFCI Receptacle TRSGFA20BK - Audible Alarm
Part Number: TRSGFA20BK
Quick Summary
Eaton GFCI receptacle provides ground-fault protection for residential and commercial outlets, enabling safe, code-compliant power delivery across kitchens, bathrooms, and work areas. Project teams often confront nuisance trips, testing hurdles, and devices that are hard to access during renovations. UL Listed, NOM, cULus Listed, and CSA Certified signal strong regulatory alignment, ensuring cross-border acceptability and safer installations. This flush-mounted, self-test GFCI with audible alarm simplifies wiring via back and side connections, improves fault indication, and reduces service calls, delivering measurable uptime and compliance value. For procurement, the compatible #14-10 AWG wiring and 16 lbf-inch torque rating streamline installation and reduce labor hours.
Product Information
Extended Description
TRSGFA20BK Eaton: Eaton GFCI receptacle,Audible alarm,Tamper resistant,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Black,Brass,Receptacle,Tamper resistant,Polycarbonate,5-20R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGFA20BK
UPC
032664748097
Product Length/Depth
2.813 in
Product Height
4.625 in
Product Width
2.008 in
Product Weight
0.401 lb
Certifications
UL Listed NOM cULus Listed CSA Certified
Device type
Receptacle
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
Audible alarm Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Black
Face/body material
Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRSGFA20BK
Eaton Specification Sheet - TRSGFA20BK
Audible alarm and tamper-resistant design provide immediate fault notification and deter tampering, reducing callbacks and improving safety in high-traffic environments. The 20A, 125V GFCI protection with self-test capability ensures continuous fault detection, supporting NEC compliance and safer operation in kitchens, bathrooms, and shared workspaces. Back and side wiring accommodates flexible installation paths with #14 - 10 AWG conductors, simplifying field wiring and reducing installation time, all while maintaining a secure, code-ready connection. The NEMA 5-20R configuration offers familiar plug compatibility for most commercial and residential loads, enabling faster panel-to-outlet wiring and fewer receptacle mismatches. Flush mounting paired with a durable polycarbonate face delivers a professional finish that resists damage in busy environments, supporting long service life. Certifications including UL Listed, NOM, cULus Listed, and CSA Certified provide confidence in regulatory compliance and cross-border use, reducing specification risk and rework for projects.
Get a Quick Quote for a Eaton TRSGFA20BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRSGFA20BK?
Enquire Now
FAQs
Power must be off before installation. Remove the existing receptacle, then connect line and load conductors to the appropriate terminals using the back or side wiring method. Use conductors in the #14 to #10 AWG range and secure connections to the specified torque of 16 lbf-in. Ensure the grounding conductor is connected and the unit is flush-mounted for proper face alignment.
The TRSGFA20BK carries UL Listed, NOM, cULus Listed, and CSA Certified marks, signaling compliance with major electrical safety standards. These certifications support NEC-based installations in both residential and commercial settings and help streamline inspections and approvals across North America.
Yes. The TRSGFA20BK is rated 20A, 125V with a NEMA 5-20R configuration and is designed for residential kitchens and bathrooms as well as commercial spaces. Its tamper-resistant and audible alarm features provide reliable protection and fault indication across varied environments, making it a versatile choice for mixed-use facilities.
Dimensions are 2.813 in depth, 4.625 in height, and 2.008 in width. The receptacle is designed for flush mounting, offering a neat profile in wall boxes and reduced protrusion in finished surfaces. The face is polycarbonate, providing durable, impact-resistant housing suitable for high-traffic areas.
The self-test feature reduces the need for manual testing while the audible alarm quickly signals faults, reducing downtime and service calls. Its compatibility with #14-10 AWG wiring and a 16 lbf-in torque rating speeds installation and maintenance. Overall, these features contribute to improved safety, faster compliance checks, and lower long-term maintenance costs.
