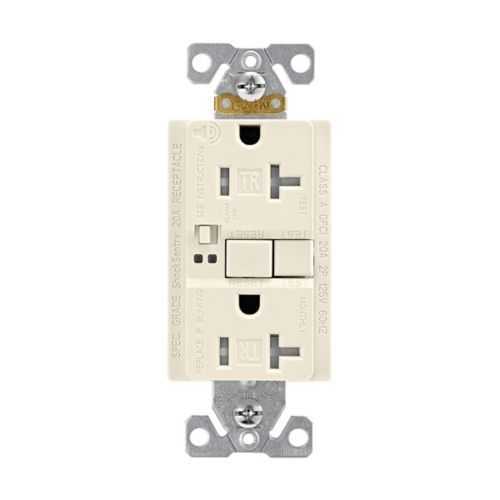

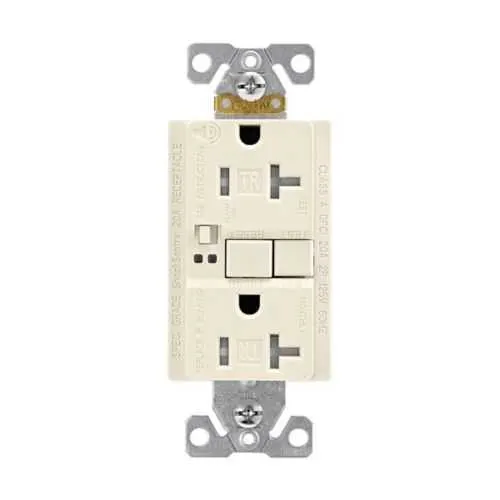

Eaton TRSGFA20LA GFCI Receptacle - Audible Alarm
Part Number: TRSGFA20LA
Quick Summary
TRSGFA20LA is an Eaton GFCI receptacle delivering reliable ground-fault protection for residential and light commercial outlets. Its built-in audible alarm and self-test simplify troubleshooting and compliance during inspections, reducing downtime and callbacks. The unit carries cULus Listed, UL Listed, NOM, and CSA Certified marks, signaling robust safety and regulatory alignment. Tamper-resistant construction, brass contacts, and back-and-side wiring support safer, durable installations in demanding environments. With flush mounting, a 125 V, 20 A rating, and #14–10 AWG compatibility, it fits modern wiring schemes while meeting frequent electrical-code requirements. This combination of protection, clarity, and install flexibility yields faster deployments, lower maintenance costs, and improved occupant safety across facilities. This combination of features also aligns with NEC and IEC safety guidelines for modern electrical installations.
Product Information
Extended Description
TRSGFA20LA Eaton: Eaton GFCI receptacle,Audible alarm,Tamper resistant,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Light almond,Brass,Receptacle,Tamper resistant,Polycarbonate,5-20R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGFA20LA
UPC
032664748110
Product Length/Depth
2.813 in
Product Height
4.625 in
Product Width
2.008 in
Product Weight
0.401 lb
Certifications
cULus Listed NOM UL Listed CSA Certified
Device type
Receptacle
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
Audible alarm Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Light almond
Face/body material
Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRSGFA20LA
Eaton Specification Sheet - TRSGFA20LA
Audible alarm and self-test provide proactive fault notification and ongoing verification of operation. This reduces downtime and emergency service calls by alerting users to issues immediately and guaranteeing the device is performing as intended. It is well-suited for residential kitchens, bathrooms, and commercial corridors where rapid fault detection supports code compliance and safer occupancy. Tamper-resistant construction and back-and-side wiring support safer, flexible installations. The outlet resists tampering, improving safety in schools, hospitals, and busy workplaces, while wiring options for #14–10 AWG simplify retrofits and new builds. By combining safety with installation flexibility, electricians can reduce wiring errors and material handling time on project sites. NEMA configuration 5-20R, 125V, 20A rating with brass contacts delivers dependable power delivery and broad plug compatibility. This combination minimizes nuisance trips and enhances equipment reliability across commercial spaces. Ideal for office break rooms, restrooms, and retail environments where consistent performance supports uptime and customer safety. Flush mounting and durable materials deliver a clean, low-profile installation. The polycarbonate face and brass contacts withstand daily use in kitchens, corridors, and workshop areas while maintaining a professional appearance. For facilities teams, this means easier maintenance, fewer cosmetic repairs, and long-term resilience in high-traffic environments. Certifications and regulatory alignment ensure confidence for QA reviews and installation approvals. With cULus Listed, NOM, UL Listed, and CSA Certified marks, the TRSGFA20LA supports compliance across North America while delivering consistent performance under typical electrical loads. These certifications also support bid approvals and factory audits. Owners and operators will appreciate predictable performance and lower total cost of ownership over the product lifecycle.
Get a Quick Quote for a Eaton TRSGFA20LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRSGFA20LA?
Enquire Now
FAQs
TRSGFA20LA supports back-and-side wiring for #14–10 AWG conductors. Install by turning off power, removing the existing receptacle, and mounting flush in a standard gang box. Torque terminals to 16 lbf-in, connect hot and neutral to the correct terminals, and attach the equipment grounding conductor. This configuration provides flexible installation for both new construction and retrofit projects.
The TRSGFA20LA is a 20A, 125V GFCI receptacle with a built-in audible alarm and self-test. It uses brass contacts and a polycarbonate face, supports back and side wiring for #14–10 AWG, and features a flush mounting design. It conforms to NEMA 5-20R configuration and includes tamper-resistant construction for enhanced safety and reliability.
Ideal for both residential and commercial spaces, including kitchens, bathrooms, offices, and corridors. Its flush mount, tamper-resistant design, and audible alarm provide enhanced safety and user awareness. The receptacle supports standard 125V circuits, 20A loads, and back or side wiring, making it suitable for new builds and retrofit projects across various facilities.
TRSGFA20LA carries cULus Listed, UL Listed, NOM, and CSA Certified marks, signaling adherence to major North American safety and electrical standards. These certifications help meet code requirements, simplify QA and inspections, and reduce project risk by ensuring consistent performance, reliability, and safety in code-compliant installations.
Maintenance is minimized by the self-test feature and audible alarm, which provide ongoing performance checks and immediate fault notification. The durable brass contacts, tamper-resistant design, and robust wiring options reduce service calls and replacement costs. Over the product lifecycle, customers gain predictable protection, easier servicing, and improved safety in high-traffic environments.
