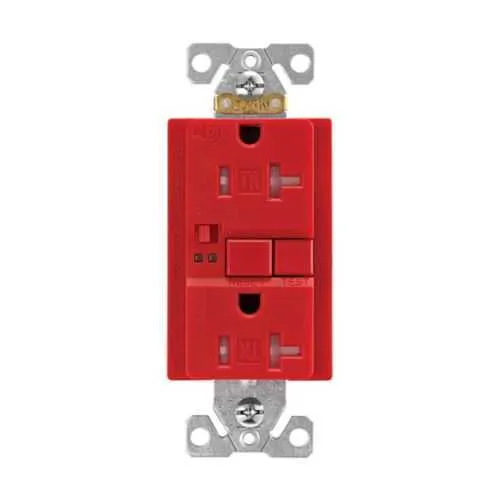

Eaton TRSGFA20RD GFCI Receptacle - UL Listed Self-Test
Part Number: TRSGFA20RD
Quick Summary
The Eaton GFCI receptacle TRSGFA20RD provides reliable ground-fault protection for outlets in homes and light commercial spaces. Installers often face safety verification challenges when devices lack clear test indicators, but this unit’s self-test and audible alarm simplify field testing and reduce call backs. It carries CSA Certified and UL Listed marks, plus NOM cULus Listed, confirming North American compliance for critical installations. With tamper-resistant construction and a flush-mount profile, it helps meet modern safety codes without compromising aesthetics. The back-and-side wiring capability supports flexible terminations with #14 – 10 AWG, while the red polycarbonate body and brass contacts deliver durable, code-ready performance in demanding environments.
Product Information
Extended Description
TRSGFA20RD Eaton: Eaton GFCI receptacle,Audible alarm,Tamper resistant,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Red,Brass,Receptacle,Tamper resistant,Polycarbonate,5-20R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGFA20RD
UPC
032664748127
Product Length/Depth
2.813 in
Product Height
4.625 in
Product Width
2.008 in
Product Weight
0.401 lb
Certifications
CSA Certified UL Listed NOM cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
Audible alarm Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Red
Face/body material
Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRSGFA20RD
Eaton Specification Sheet - TRSGFA20RD
Feature introduces self-test and audible alarm for proactive safety verification → Business Impact: reduces troubleshooting time and improves compliance with code requirements → Application: residential and light commercial outlets where rapid fault detection is essential. The tamper-resistant design and back-and-side wiring flexibility enable safer installations and easier terminations, lowering commissioning errors and callbacks → Application: classrooms, offices, and retail spaces needing durable, compliant outlets. NEMA 5-20R configuration with flush mounting and a robust 16 lbf-inch torque rating supports reliable connections in high-traffic areas → Business Impact: steady performance under frequent use and reduced maintenance calls. Brass contact material and polycarbonate face provide durable, corrosion-resistant operation in demanding environments → Application: healthcare facilities, industrial panels, and service corridors requiring long-lasting safety devices. Certifications CSA, UL, and NOM cULus validated units ensure regulatory alignment across North American installations → Business Impact: instant code-visibility for inspectors and procurement teams. The device supports #14–10 AWG conductors and provides clear wiring options for easier inventory management and faster installs → Application: standard residential and commercial wiring projects with common feeder sizes.
Get a Quick Quote for a Eaton TRSGFA20RD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRSGFA20RD?
Enquire Now
FAQs
The TRSGFA20RD supports back and side wiring with allowable conductor sizes of #14 through 10 AWG. It is designed for flush mounting and uses a 16 in-lb torque rating to ensure a secure, vibration-resistant connection. This combination enables flexible installation in both new builds and retrofits while maintaining strong contact reliability.
The built-in audible alarm provides immediate fault notification, while the self-test function ensures the device routinely verifies its protective mechanisms. This combination reduces risk of undetected faults, facilitates quick verification during inspections, and helps meet safety codes in both residential and commercial environments.
Yes. With a 20A, 125V rating and NEMA 5-20R configuration, the TRSGFA20RD is appropriate for both residential outlets and light commercial installations. Its tamper-resistant design and flush-mount profile support high-traffic areas, while the back-and-side wiring option simplifies field terminations in diverse projects.
The TRSGFA20RD carries CSA Certified, UL Listed, and NOM cULus Listed marks. These certifications confirm compliance with North American safety standards, ease regulatory approvals, and provide assurance to electricians, contractors, and facilities managers that the device meets required performance and safety criteria for critical outlets.
The receptacle uses a red polycarbonate face and brass contacts, contributing to mechanical strength, chemical resistance, and reliable electrical conductivity. Its flush-mount design and tamper-resistant construction enhance aesthetics and safety, especially in busy environments. The device also specifies a 16 lbf-in torque rating for secure fitting and stable long-term operation.
