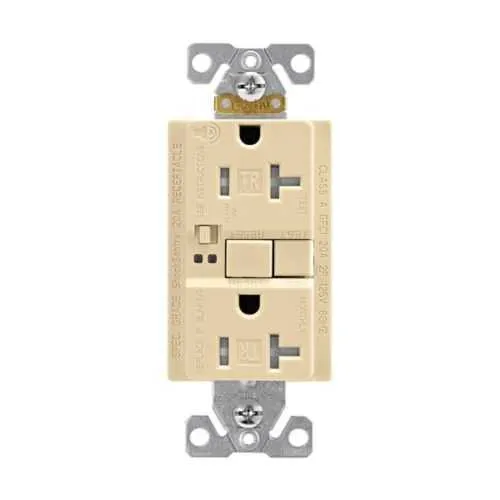

Eaton TRSGFA20V GFCI Receptacle - Audible Alarm
Part Number: TRSGFA20V
Quick Summary
Eaton GFCI receptacle TRSGFA20V delivers reliable ground-fault protection for residential and commercial outlets. Many installations struggle with code compliance and nuisance trips, especially in high-traffic spaces where safety features must perform consistently. It carries NOM, CSA, UL Listed, and cULus Listed certifications, signaling compliance across North American and international markets. For installers and facilities teams, the self-test function, audible alarm and tamper-resistant design help reduce service calls, while back-and-side wiring supports flexible field connections. With flush mounting and a durable polycarbonate face in ivory, it also delivers a clean, professional appearance in finished environments. These attributes translate to improved uptime, safer operation, and lower lifecycle costs for building owners and operators.
Product Information
Extended Description
TRSGFA20V Eaton: Eaton GFCI receptacle,Audible alarm,Tamper resistant,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Ivory,Brass,Receptacle,Tamper resistant,Polycarbonate,5-20R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGFA20V
UPC
032664748134
Product Length/Depth
2.813 in
Product Height
4.625 in
Product Width
2.008 in
Product Weight
0.401 lb
Certifications
NOM CSA Certified UL Listed cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
Audible alarm Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Ivory
Face/body material
Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRSGFA20V
Eaton Specification Sheet - TRSGFA20V
Feature: Audible alarm and self-test provide immediate fault indication and continuous compliance verification. Business Impact: Reduces downtime and regulatory risk by confirming protective function is active without manual testing. Application: Ideal for kitchens, bathrooms, and labor-intensive commercial spaces where reliability is critical. Feature: Tamper-resistant design enhances child safety and reduces incidental contact in high-traffic areas. Business Impact: Improves safety ratings and lowers risk of accidental shocks, supporting insurance and compliance objectives. Application: Schools, healthcare facilities, and multi-tenant offices. Feature: Back and side wiring for #14 - 10 AWG conductors. Business Impact: Simplifies field installation, saves time during wiring runs, and minimizes rework. Application: Retrofit projects and new installations in retrofit boxes. Feature: NEMA 5-20R, 125V, 20A configuration with flush mount and ivory polycarbonate body. Business Impact: Delivers robust, space-efficient outlets with a professional look and long service life. Application: Residential and light commercial circuits requiring reliable 20A protection. Feature: Brass contact material and 16 lbf-inch torque rating ensure durable, low-resistance connections. Business Impact: Enhances longevity and consistency of trip performance in demanding environments. Application: High-use outlets in kitchens, utility rooms, and workspaces. Feature: Certifications NOM, CSA, UL Listed, cULus Listed provide regulatory alignment and market readiness. Business Impact: Accelerates project approval and reduces procurement risk. Application: Global/North American builds with strict safety standards.
Get a Quick Quote for a Eaton TRSGFA20V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRSGFA20V?
Enquire Now
FAQs
The TRSGFA20V supports back and side wiring for #14-10 AWG conductors, requires a flush mount, and uses a NEMA 5-20R configuration. Use a torque value of 16 lbf-in to secure terminals and ensure proper seating in standard electrical boxes. Its ivory polycarbonate body blends with most decors while providing durable performance in residential and light commercial applications.
The self-test feature automatically verifies the GFCI sensing circuitry, while the audible alarm provides a clear fault notification without requiring visual inspection. This combination reduces downtime, supports NEC compliance, and helps maintenance teams quickly identify and address ground-fault conditions, especially in high-traffic or mission-critical areas.
Yes. With 125V, 20A rating and NEMA 5-20R configuration, it deliversshore power protection where water exposure and high usage are common. Tamper-resistant construction and a flush-mount design meet safety and cleanliness standards typical of kitchens and restrooms, while the amber/ivory finish maintains a professional appearance in commercial interiors.
The TRSGFA20V is NOM, CSA, UL Listed, and cULus Listed, indicating compliance with major North American electrical safety standards. These certifications help simplify code approvals, insurer acceptance, and cross-border projects, ensuring safer installations across multiple jurisdictions and reducing procurement risk.
Thanks to its self-test and durable polycarbonate construction, maintenance needs are reduced and replacement intervals extended. Audible fault alerts enable faster fault resolution, lowering service call costs. The combination of solid wiring compatibility and 16 lbf-in torque supports consistent performance, yielding lower lifecycle costs in facilities management programs.
