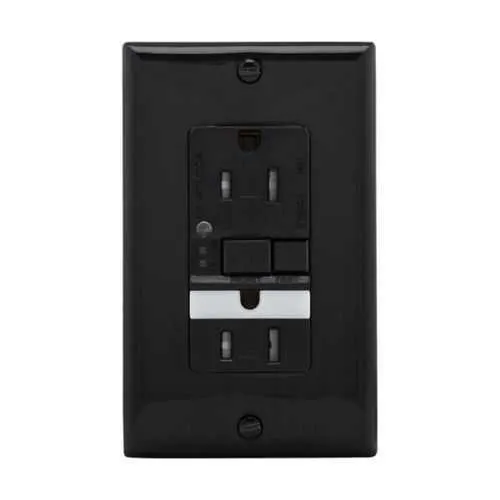

Eaton TRSGFNL15BK GFCI Receptacle - cULus Listed
Part Number: TRSGFNL15BK
Quick Summary
The Eaton GFCI receptacle TRSGFNL15BK delivers reliable ground-fault protection for residential and light-commercial outlets. This empowers engineers and facility teams to reduce outage risk and nuisance trips caused by wiring faults or aging equipment. cULus Listed safety certification underpins code-compliant protection for both home and business environments. With nightlight capability and tamper-resistant construction, this self-test GFCI supports quick diagnostics and durable, safer wiring. By supporting back-and-side wiring, 15A at 125V, and a compact flush mount, it delivers reliable protection while simplifying installation for project teams.
Product Information
Extended Description
TRSGFNL15BK Eaton: Eaton GFCI receptacle,Nightlight,Tamper resistant,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,Black,Night light,Brass,Receptacle,Tamper resistant,Polycarbonate,5-15R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGFNL15BK
UPC
032664743153
Product Length/Depth
2.06 in
Product Height
4.71 in
Product Width
2.86 in
Product Weight
0.413 lb
Certifications
cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
Nightlight Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
Black
Combination type
Night light
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRSGFNL15BK
Eaton Specification Sheet - TRSGFNL15BK
Nightlight and self-test functionality deliver immediate visibility and proactive fault detection, reducing downtime and enhancing occupant safety in corridors, kitchens, and storage areas. This feature translates into faster troubleshooting and fewer service calls, improving maintenance efficiency in facilities with high traffic. Tamper-resistant polycarbonate and back-and-side wiring compatibility address common installation challenges, allowing quick retrofits in retrofit projects where wall boxes vary in depth and space. The 15A, 125V rating paired with NEMA 5-15R configuration ensures standard compatibility with most branch circuits, while the 16 lbf-in torque specification guarantees a solid, vibration-resilient connection. Flush mounting delivers a clean, code-compliant appearance for both new-builds and renovations, reducing customer callbacks. Overall, this receptacle supports safer, faster installations with predictable performance in residential and commercial spaces.
Get a Quick Quote for a Eaton TRSGFNL15BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRSGFNL15BK?
Enquire Now
FAQs
Begin by turning off the circuit and removing the wall plate. Open the receptacle, identify the back and side wiring terminals, and prepare #14 to 10 AWG conductors. Secure the hot and neutral to their respective terminals, tighten connectors to the manufacturer’s torque spec of 16 lbf-inch, and mount flush. Close the device and test the self-test function to confirm proper operation.
The TRSGFNL15BK is a 15A, 125V GFCI receptacle with NEMA 5-15R configuration. It supports back and side wiring and accepts #14–10 AWG conductors, with a torque rating of 16 lbf-in for secure terminations. The device includes a nightlight and tamper-resistant features, enhancing safety and reliability in daily commercial and residential use.
Yes. The TRSGFNL15BK is designed for both residential and commercial spaces, offering GFCI protection, a nightlight for visibility in dark areas, and tamper-resistant construction to meet common safety codes. Its flush mounting and compatibility with standard 5-15R outlets make it a versatile choice for hallways, kitchens, offices, and common areas.
The product is cULus Listed, indicating compliance with recognized safety standards for North American installations. This certification helps ensure code compatibility, safety in both new builds and renovations, and confidence for procurement teams seeking reliable, industry-standard components for residential and commercial wiring projects.
The self-test function regularly verifies GFCI integrity, reducing the need for manual testing and lowering downtime risk. The built-in nightlight improves usability in low-light environments, cutting the likelihood of accidental trips and enhancing occupant safety. Over time, these features translate into lower maintenance costs and more predictable, safer electrical performance.
