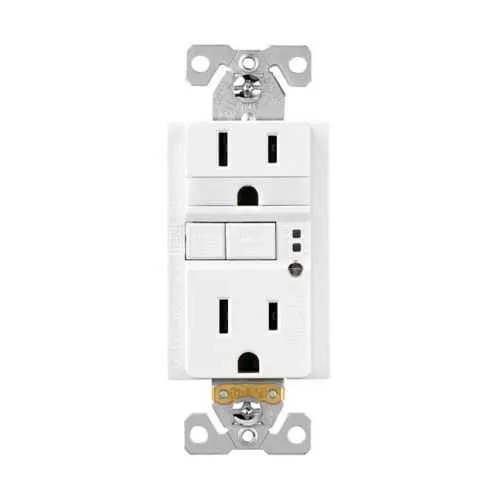

Eaton TRSGFNL15W GFCI Receptacle - Nightlight Self-Test
Part Number: TRSGFNL15W
Quick Summary
Eaton GFCI receptacle TRSGFNL15W delivers ground-fault protection for residential and commercial outlets. Installers often struggle with GFCI devices that fail self-tests or complicate wiring during upgrades. This model is cULus Listed and UL-recognized, helping align with US/Canada safety standards for reliable protection. In residential installs and commercial applications, its nightlight, tamper-resistant design, and straightforward flush mounting translate to safer, code-compliant outlets with quicker commissioning and fewer callbacks.
Product Information
Extended Description
TRSGFNL15W Eaton: Eaton GFCI receptacle,Nightlight,Tamper resistant,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V,GFCI,Back and side wire,White,Night light,Brass,Receptacle,Tamper resistant,Polycarbonate,5-15R,Two-pole, three-wire, grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TRSGFNL15W
UPC
032664743191
Product Length/Depth
2.06 in
Product Height
4.71 in
Product Width
2.86 in
Product Weight
0.41 lb
Certifications
cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
Nightlight Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper resistant
Mounting method
Flush
Color
White
Combination type
Night light
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TRSGFNL15W
Eaton Specification Sheet - TRSGFNL15W
TRSGFNL15W combines a nightlight with a self-test GFCI receptacle, delivering proactive safety checks and visual guidance that reduces downtime during outages. This feature set improves compliance with NEC requirements and lowers maintenance costs by catching faults early, enabling faster service restoration in both homes and offices. The tamper-resistant construction adds child-safety protection, reducing liability in family spaces and common areas. Back and side wiring support, along with a wide #14–10 AWG allowable range, streamlines installation and allows for flexible retrofits in tight electrical boxes or retrofit projects. The flush-mount, 5-15R receptacle uses brass contact material and a durable PVC/Polycarbonate face, ensuring long-term reliability in high-traffic locations. With a 16 lbf-inch torque rating, field connections stay secure even in demanding environments. This unit’s NEMA 5-15R configuration, white finish, and residential/commercial application designation fit a broad range of project needs while supporting rapid onboarding for maintenance teams.
Get a Quick Quote for a Eaton TRSGFNL15W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRSGFNL15W?
Enquire Now
FAQs
Yes. The TRSGFNL15W supports back and side wiring and accepts #14 - 10 AWG conductors. It uses a flush mounting method and a 16 lbf-inch torque rating to ensure secure terminations and reliable long-term performance in both new installations and retrofit projects.
It is a 15A, 125V GFCI receptacle (NEMA 5-15R) with nightlight and self-test features. The device uses brass contact material, has a back-and-side wiring method, and supports #14 - 10 AWG conductors, with a flush mounting approach for a clean install.
Yes. The model is specified for both residential and commercial applications, combining safety features like tamper resistance with night illumination to aid navigation in dim spaces, making it versatile for homes, offices, and other occupied spaces.
The product is cULus listed and UL-recognized, signaling compliance with safety standards for the US and Canada. This certification supports code conformance and reduces compliance risk for projects in multiple jurisdictions.
The self-test reduces maintenance by automatically verifying functionality, decreasing call-backs and diagnostic time. The integrated nightlight improves usability in low-light conditions, minimizing accidental contact and enabling safer operation, which can lower total cost of ownership over the life of the receptacle.
