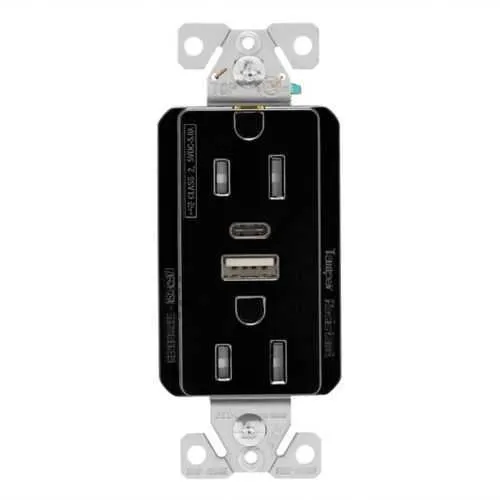

Eaton TRUSBAC15BK-BOX USB Charger Receptacle - NOM Listed

Part Number: TRUSBAC15BK-BOX
Manufacturer
Eaton
Part number
TRUSBAC15BK-BOX

Quick Summary

Eaton TRUSBAC15BK-BOX USB charger with duplex receptacle combines USB Type A and Type C charging with a 15A 125V receptacle in a single flush-mount unit. This integration helps reduce clutter and improve workspace efficiency for dense electrical layouts. The solution carries NOM and cULus listings, supporting regulatory compliance for North American installations, and is designed for decorator-style installations where aesthetics matter. With screw-terminal wiring and a robust brass contact system, it delivers reliable power delivery in commercial, educational, and light-industrial environments, while keeping compatibility with #12-14 AWG conductors. By choosing this receptacle, maintenance teams gain a collapsible charging option that scales with everyday device usage and reduces the need for separate adapters.

Product Information

Extended Description

TRUSBAC15BK-BOX Eaton: Eaton Combination USB Type A and C Charger, 15A 5-15R Receptacle, Black, USB, Brass, Flush, Two-pole, Three-wire
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TRUSBAC15BK-BOX
UPC
032664755866
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.285 lb
Warranty
1 year
Certifications
NOM cULus Listed
Type
Type AC
Amperage Rating
15A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 5A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Retail Box
Color
Black
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
The USB combination with a 15A, 125V duplex receptacle delivers a single, integrated power and charging solution, reducing outlet clutter and simplifying future upgrades. This leads to measurable efficiency gains in spaces with high device turnover, such as offices and classrooms. The tamper-resistant design paired with 5A charging protects users and devices, reducing safety incidents and warranty repairs while enabling safer high-traffic installations. Brass contact material and 14 lbf-inch torque rating on the terminals provide dependable, long-term performance, minimizing downtime and contact wear in busy commercial environments. Screw terminals accept #12-14 AWG wire, making field installation straightforward and compatible with standard electrical practices, which shortens install time and lowers labor costs. NEMA 5-15R configuration and flush-mount styling ensure a clean, code-compliant appearance in decorator settings, supporting quick integration into modern workspaces. The unit’s black thermoplastic housing is durable and resistant to common indoor use conditions, delivering consistent electrical performance and longevity. Compatibility with both USB Type A and USB Type C devices supports a wide range of modern devices, improving user satisfaction and reducing the need for separate charging hubs. With a 1-year warranty and NOM/cULus listing, buyers gain regulatory confidence and predictable total cost of ownership, essential for procurement planning in regulated industries.

Get a Quick Quote for a Eaton TRUSBAC15BK-BOX

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton TRUSBAC15BK-BOX? Enquire Now

FAQs

The TRUSBAC15BK-BOX uses screw terminals and is designed for #12-14 AWG conductors. Installers should mount it flush in standard decorator-style boxes, respect the 1.4 in depth, 4.19 in height, and 1.3 in width, and torque to 14 lbf-in on terminal screws to ensure a secure, compliant connection.
Yes. The TRUSBAC15BK-BOX combines USB charging (Type A and Type C) with a standard 5-15R receptacle, delivering simultaneous power to USB devices and line-powered equipment. This supports integrated charging without needing additional outlets or adapters.
Absolutely. The TRUSBAC15BK-BOX is listed as NOM and cULus, providing regulatory compliance for government and commercial deployments. Always verify local code requirements, but this unit is designed to meet typical North American wiring standards for receptacle and USB charging devices.
The device is rated 15A at 125V and uses brass contact material with three-wire design. Wiring is via screw terminals and accepts #12-14 AWG conductors. It features a NEMA 5-15R configuration and a two-pole, grounding receptacle, suitable for standard branch circuits in offices and light-industrial environments.
Ideal for offices, classrooms, healthcare facilities, and light-industrial spaces requiring integrated charging without clutter. Its flush decorator style fits wall aesthetics in reception areas and workstations, while tamper-resistant USB charging supports safer, higher-traffic areas and reduces maintenance costs associated with loose adapters and multiple chargers.
