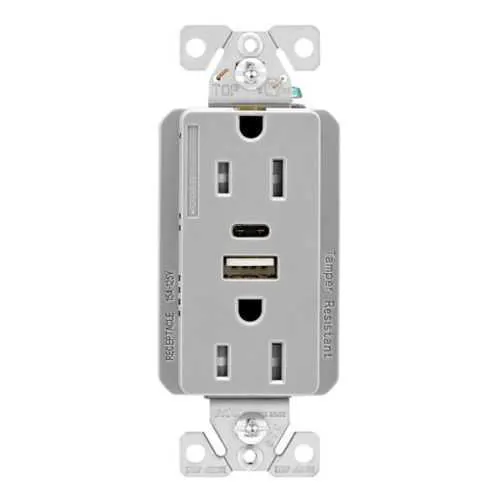

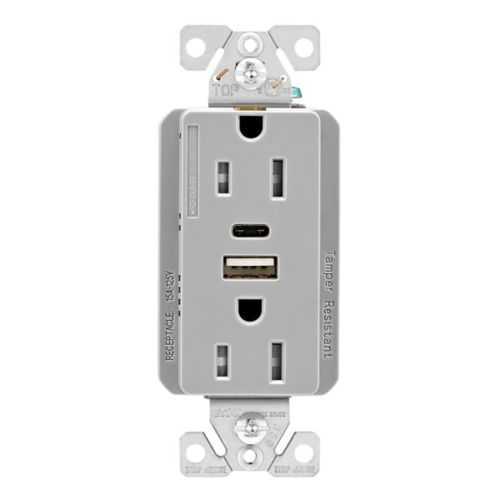

Eaton TRUSBAC15GY-BOX USB Charger Receptacle - NOM cULus Listed
Part Number: TRUSBAC15GY-BOX
Quick Summary
TRUSBAC15GY-BOX USB charger with duplex receptacle provides integrated charging for outlets in commercial and industrial spaces. This single device blends power delivery with USB efficiency, reducing clutter and the need for portable adapters in high-traffic work areas. Engineers face limited space, multiple devices, and maintenance challenges; this solution streamlines installs and improves user experience. The unit carries NOM and cULus Listed certifications, reinforcing safety and regulatory compliance across North American environments. With 15A at 125V, USB Type A and C charging, and tamper-resistant protection, it supports everyday devices while meeting code requirements. Designers benefit from flush mounting and reliable brass contacts, while facilities teams gain faster installs and lower field support costs. Secondary benefits include compatibility with #12-14 AWG wiring and compact form factor for retrofit projects.
Product Information
Extended Description
TRUSBAC15GY-BOX Eaton: Eaton Combination USB Type A and C Charger, 15 A 5-15 R Receptacle, Grey, USB, Brass, Thermoplastic, Flush, Two-pole, Three-wire, Tamper resistant, 125 V
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TRUSBAC15GY-BOX
UPC
032664755873
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.285 lb
Warranty
1 year
Certifications
NOM cULus Listed
Type
Type AC
Amperage Rating
15A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 5A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Retail Box
Color
Gray
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
5A Slim USB Charging Receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Eaton Specification Sheet - TRUSBAC15GY-BOX
Eaton Specification Sheet - TRUSBAC15GY-BOX
Feature: Integrated USB charging in a single duplex receptacle. Business Impact: Reduces device clutter and simplifies procurement by replacing separate USB adapters and outlets. Application: Ideal for office desks, reception areas, and service counters where quick device charging improves productivity. Feature: 15A, 125V NEMA 5-15R receptacle with USB Type A and Type C; brass contacts and thermoplastic body. Business Impact: Delivers reliable power with durable materials for daily use, supporting safer, universal charging. Application: Desks, break rooms, and workstations in commercial and light industrial settings. Feature: Screw terminals wiring method for #12-14 AWG; flush mounting; two-pole three-wire grounding; torque 14 lbf-in. Business Impact: Simplifies wiring schemes and ensures secure terminations, speeding up install and reducing rework. Application: Retrofit projects and new builds in equipment rooms and wall boxes. Feature: Tamper-resistant design with 5A charging capability. Business Impact: Enhances safety in environments with high user turnover while delivering rapid USB charging. Application: Education, healthcare corridors, and public-facing offices. Feature: Compact dimensions (1.4 in depth, 4.19 in height, 1.3 in width) and retail packaging. Business Impact: Enables easy integration into tight spaces and streamlined stocking for distributors. Application: Retrofit and new construction in constrained enclosures and modular panels. Feature: NOM and cULus Listed certification. Business Impact: Provides regulatory compliance and market acceptance across North America, reducing risk during audits. Application: Commercial installations, industrial facilities, and integrated building systems.
Get a Quick Quote for a Eaton TRUSBAC15GY-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRUSBAC15GY-BOX?
Enquire Now
FAQs
Install by disconnecting power, then attach wiring to the screw terminals using #12-14 AWG conductors. The device is a two-pole, three-wire grounding receptacle with flush mounting and a torque rating of 14 lbf-in for secure terminations. Ensure the circuit is rated for 15A at 125V and that the outlet is positioned to meet local code. This approach minimizes field adjustments and provides a reliable, code-compliant connection for USB charging and outlet power.
The TRUSBAC15GY-BOX combines USB Type A and Type C charging within a single 15A, 125V duplex outlet. The unit supports 5A charging for USB devices, enabling faster charging for smartphones, tablets, and compatible accessories while maintaining standard 125V receptacle power for devices that rely on a traditional outlet.
Yes. Its flush-mount design and 15A/125V capability suit both offices and industrial settings. The tamper-resistant USB charging and heavy-duty brass contacts in a thermoplastic body offer durability and safety in busy environments. The unit’s compatibility with #12-14 AWG wiring and NEMA 5-15R configuration makes it versatile for retrofit and new-build projects.
The product is NOM and cULus Listed, indicating compliance with Mexican and North American safety standards. These certifications support installation in regulated facilities, improve audit readiness, and reduce compliance risk for projects across offices, schools, healthcare, and light industrial spaces.
The unit reduces the need for separate USB wall adapters and multiple outlets, simplifying procurement and maintenance. Its compact form factor, durable materials, and tamper-resistant design lower field service calls, speed up installations, and improve user satisfaction by providing reliable, built-in charging directly at the outlet.
