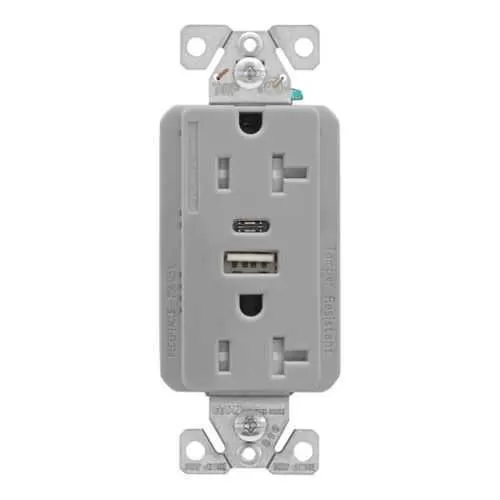

Eaton TRUSBAC20GY-BOX USB Receptacle Charger - NOM cULus
Part Number: TRUSBAC20GY-BOX
Quick Summary
Eaton combination USB charger with duplex receptacle delivers compact charging power for modern workstations and control panels. Engineers often face cluttered outlets and mismatched USB ports inside enclosures, slowing installs and complicating maintenance. With NOM and cULus Listed certifications, this unit meets regional safety standards while delivering a flush, decorator-style appearance for 125V circuits. Designed to fit #12-14 AWG wiring and a two-pole, three-wire configuration, it supports quick, code-compliant deployments across commercial and light-industrial environments.
Product Information
Extended Description
TRUSBAC20GY-BOX Eaton: Eaton Combination USB Type A and C Charger, 20 A 5-20 R Receptacle, Grey,Brass, Flush, Two-pole, Three-wire, Tamper resistant, Decorator, 125V
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TRUSBAC20GY-BOX
UPC
032664755996
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.285 lb
Warranty
1 year
Certifications
NOM cULus Listed
Type
Type AC
Amperage Rating
20A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 5A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Retail Box
Color
Gray
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
5A Slim USB Charging Receptacles
Eaton's USB charging receptacles - Never miss a moment
Eaton's USB charging receptacles - Never miss a moment
Eaton's USB charging receptacles - Never miss a moment
Eaton Specification Sheet - TRUSBAC20GY-BOX
Eaton Specification Sheet - TRUSBAC20GY-BOX
Feature: USB Type A and USB Type C charging integrated into a single duplex receptacle. Business Impact: This consolidation reduces device count, lowers panel depth, and speeds commissioning by avoiding separate USB modules. Application: Ideal for dense control cabinets, wall boxes, and equipment enclosures needing both power outlets and charging in a compact footprint.Feature: 20A, 125V NEMA 5-20R with brass contact material and tamper-resistant design. Business Impact: Delivers reliable power delivery for high-demand devices while maintaining safety and durability in busy workplaces. Application: Suitable for labs, workshops, and industrial panels where robust, code-compliant outlets are essential.Feature: Screw terminals wiring method for three-wire, two-pole configuration with a 14 lbf-in torque rating. Business Impact: Enables secure field wiring and predictable torque, reducing rework and connection failures. Application: Works with #12-14 AWG conductors and flush-mount decorator installations in control enclosures.Feature: Thermoplastic body in gray with decorator style and flush mounting. Business Impact: Delivers a neat, professional appearance while resisting common industrial solvents and mounting tolerances. Application: Perfect for finish-grade installations in commercial interiors and electrical installations where aesthetics matter.Feature: NOM cULus Listed certification and 1-year warranty. Business Impact: Increases regulatory confidence for installers and end users, while providing post-sale support and coverage. Application: Widely used in North American and Mexican markets, including service panels and equipment rooms.Feature: Compatibility with #12-14 AWG wires and 5-20R configuration. Business Impact: Improves installer flexibility, reduces rewiring risk, and aligns with standard building electrical practices. Application: Suitable for renovates and new builds in commercial spaces requiring reliable charging and power at desks and workstations.
Get a Quick Quote for a Eaton TRUSBAC20GY-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRUSBAC20GY-BOX?
Enquire Now
FAQs
To install TRUSBAC20GY-BOX, power off the circuit, remove the decorator plate, and connect conductors to the screw terminals rated for #12-14 AWG. Ground securely, torque to 14 in-lbf, then reattach the plate. The unit is designed for flush mounting and a NEMA 5-20R outlet, delivering a tidy, reliable installation suitable for control panels and enclosures.
TRUSBAC20GY-BOX is rated for 20A at 125V with a NEMA 5-20R configuration, ensuring safe power delivery for USB charging alongside standard outlets. Brass contact material and tamper-resistant design enhance durability in busy environments, while screw-terminal wiring supports secure field connections for commercial applications.
Yes. The unit combines a decorator-style flush mount with a 20A 125V receptacle, tamper resistance, and USB charging, making it appropriate for control panels, equipment rooms, and wall boxes in industrial settings. Its compatibility with #12-14 AWG wires and grounding configuration aligns with common panel wiring practices while preserving workspace aesthetics.
This receptacle carries NOM and cULus Listed certifications, confirming compliance with relevant safety standards for North American and Mexican markets. These certifications streamline installation approvals and support regulatory adherence in commercial, industrial, and renovation projects.
The unit includes a 1-year warranty, offering coverage for manufacturing defects and early-life failures. Its integrated design reduces component count, which lowers maintenance complexity and inventory needs. For ongoing value, the product’s robust construction and standard wiring approach support predictable service intervals and quicker upgrades if needs evolve.
