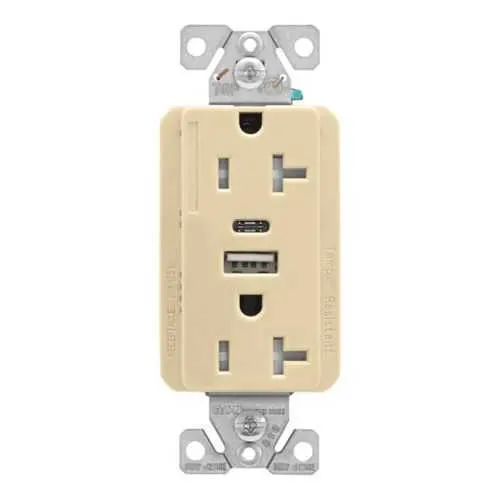

Eaton TRUSBAC20V-BOX USB Charger Receptacle - NOM Listed
Part Number: TRUSBAC20V-BOX
Quick Summary
TRUSBAC20V-BOX is a combination USB charger with duplex receptacle for general outlets in commercial and light-industrial settings. Facilities often battle cluttered workspaces and ad hoc charging solutions that fail safety and reliability. It carries NOM and cULus Listed certifications, boosting regulatory compliance, while tamper-resistant protection minimizes unauthorized access. With flush mounting and screw-terminal wiring, it delivers clean aesthetics and straightforward installation across wiring and connectivity projects. Designed to meet service demands in offices, labs, and manufacturing floors, it supports mixed USB charging alongside traditional outlets. By consolidating power access in one device, maintenance teams reduce stocking multiple parts and shorten install cycles.
Product Information
Extended Description
TRUSBAC20V-BOX Eaton: Eaton Combination-USB Type A and C Charger, 20A 5-20R Receptacle, Ivory, USB, Brass, Flush, Two-pole, Three-wire, Tamper resistant, Decorator
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TRUSBAC20V-BOX
UPC
032664755965
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.285 lb
Warranty
1 year
Certifications
NOM cULus Listed
Type
Type AC
Amperage Rating
20A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 5A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Retail Box
Color
Ivory
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
5A Slim USB Charging Receptacles
Introduction to USB-C Duplex Receptacles
Introduction to USB-C Duplex Receptacles
Introduction to USB-C Duplex Receptacles
Eaton Specification Sheet - TRUSBAC20V-BOX
Eaton Specification Sheet - TRUSBAC20V-BOX
Integrated USB charging with USB Type A and USB-C on a single decorator-style receptacle reduces desk clutter and eliminates the need for separate chargers, delivering measurable productivity gains in shared workspaces. The business impact is faster device readiness and streamlined charging logistics, especially in conference rooms and break areas where multiple devices converge. 20A, 125V electrical rating ensures the outlet supports charging devices while common tools run on the same circuit. This compatibility reduces the risk of nuisance tripping and ensures reliable performance in busy offices and light-industrial facilities. Tamper-resistant design contributes to safety in public-sharing environments and labs, protecting users and reducing maintenance calls. Wringing method uses screw terminals and supports #12-14 AWG conductors, enabling fast, secure installs and easier retrofits into existing electrical boxes. NEMA configuration 5-20R with flush mounting and ivory thermoplastic decor minimises install time and preserves aesthetic coherence in decorator outlets. Certifications NOM and cULus Listed enhance regulatory alignment, while a 1-year warranty provides predictable support and total-cost-of-ownership benefits for facilities managers.
Get a Quick Quote for a Eaton TRUSBAC20V-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRUSBAC20V-BOX?
Enquire Now
FAQs
The TRUSBAC20V-BOX uses screw-terminals and accepts #12-14 AWG conductors, enabling straightforward retrofit into standard electrical boxes and decorator-style faces. Ensure flush mounting and brass contact compatibility. Torque connections to 14 lbf-in per the spec, then secure with the included mounting hardware for a compliant, clean installation.
This unit combines USB Type A and USB-C charging with a 20A 125V duplex receptacle in a single decorator-style device, reducing desk clutter and inventory. Its tamper-resistant feature improves safety in shared spaces, while screw-terminal wiring and #12-14 AWG support fast, reliable installations on standard circuits—an ideal fit for offices, conference rooms, and light-industrial facilities.
Ideal for corporate offices, conference rooms, training facilities, labs, and break areas, where users need reliable USB charging alongside traditional power access. The flush, ivory decor integrates with existing wall surfaces, while the 5-20R receptacle supports common NEMA configurations, enabling seamless deployments across workstations and service desks.
TRUSBAC20V-BOX is NOM and cULus Listed, reflecting compliance with major electrical safety and regulatory requirements for commercial and light-industrial installations. Tamper-resistant construction further enhances user protection, reducing the likelihood of accidental contact in public or shared environments.
The integrated USB charging plus duplex receptacle reduces the number of separate charging accessories, lowering inventory, installation time, and maintenance calls. With a 1-year warranty and solid brass contacts in a durable thermoplastic body, facilities teams can expect predictable lifecycle costs and fewer field faults in high-traffic work areas.
