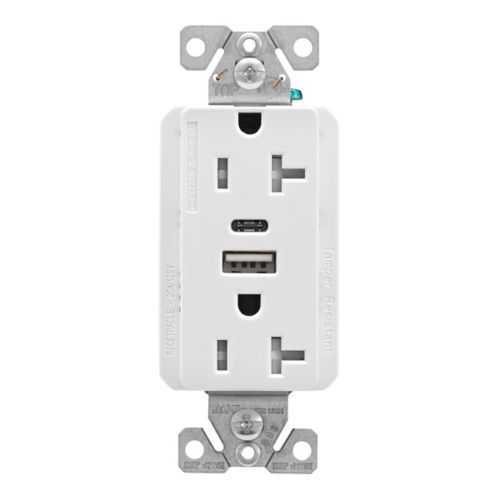

Eaton TRUSBAC20W-BOX USB Receptacle Charger - NOM cULus Listed
Part Number: TRUSBAC20W-BOX
Quick Summary
The Eaton TRUSBAC20W-BOX USB charger combo provides USB charging and a duplex receptacle for 125V circuits. Engineers often battle cluttered outlets and insufficient charging options in shared spaces, leading to workflow delays and damaged devices. This unit carries NOM and cULus Listed certifications, aligning with UL safety standards for North American installations. Its decorator, flush-mounted design fits standard boxes while providing a 20A, 125V outlet with USB Type A and C charging—ideal for offices, classrooms, hospitality, and healthcare environments. The screw-terminal wiring supports #12-14 AWG and a 14 lbf-in torque rating, easing field installation and maintenance. With tamper resistance and a white thermoplastic decorator face, it delivers reliable performance in busy environments, combining function with a clean, professional appearance.
Product Information
Extended Description
TRUSBAC20W-BOX Eaton: Eaton Combination USB Type AandC Charger, 20A 5-20R Receptacle, White, USB, Brass, Thermoplastic, Flush, Two-pole, Three-wire, Tamper resistant, Decorator, 125V
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TRUSBAC20W-BOX
UPC
032664755941
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.285 lb
Warranty
1 year
Certifications
NOM cULus Listed
Type
Type AC
Amperage Rating
20A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 5A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Retail Box
Color
White
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
5A Slim USB Charging Receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Eaton Specification Sheet - TRUSBAC20W-BOX
Eaton Specification Sheet - TRUSBAC20W-BOX
Feature: Combination USB Type A and C charger integrated with a NEMA 5-20R duplex receptacle. Business Impact: consolidated devices reduce wall clutter, simplify stocking, and streamline project procurement. Application: install at workstations, hotel rooms, or classrooms to provide on-demand charging without additional wall space. Feature: 20A 125V electrical rating with screw-terminal wiring for #12-14 AWG conductors. Business Impact: faster, toolbox-friendly installation with reliable, secure connections and predictable torque, lowering field callback rates. Application: new construction or retrofit projects in commercial settings where code-compliant power delivery is essential. Feature: Tamper-resistant, flush decorator design in white thermoplastic. Business Impact: safer outlets in high-traffic areas and a seamless aesthetic that matches modern interiors. Application: healthcare facilities, hospitality areas, and education environments where aesthetics and safety matter. Feature: NOM and cULus Listed certification. Business Impact: regulatory peace of mind and easier procurement across markets that require recognized safety standards. Application: installations in North American and Mexican markets, with simplified compliance reporting. Feature: Receptacle type 5-20R and USB combination. Business Impact: single-device solution that reduces installation complexity and inventory costs. Application: factories, offices, and service centers needing resilient power and charging in one faceplate.
Get a Quick Quote for a Eaton TRUSBAC20W-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRUSBAC20W-BOX?
Enquire Now
FAQs
Install using three-wire connections with #12-14 AWG conductors. Secure each screw terminal to a solid conductor, tighten to the specified torque, and mount flush in an appropriate electrical box. Ensure grounding and verify the 14 lbf-in torque rating for reliable, code-compliant connections.
Yes. It combines a NEMA 5-20R duplex receptacle rated at 20A with USB charging (Type A and Type C). It supports 125V circuits and is designed for tamper-resistant, decorator-style installation suitable for commercial settings.
The unit is NOM and cULus Listed, aligning with UL safety standards for North American installations. This provides regulatory confidence for code compliance and procurement across applicable markets.
The device is a 20A, 125V combination unit with screw terminals suitable for #12-14 AWG conductors. It uses two-pole, three-wire operation with a torque rating of 14 lbf-in to ensure secure connections.
Ideal for commercial offices, hospitality guest rooms, healthcare waiting areas, classrooms, and industrial spaces where integrated USB charging and a standard outlet consolidate functionality and reduce installation complexity.
