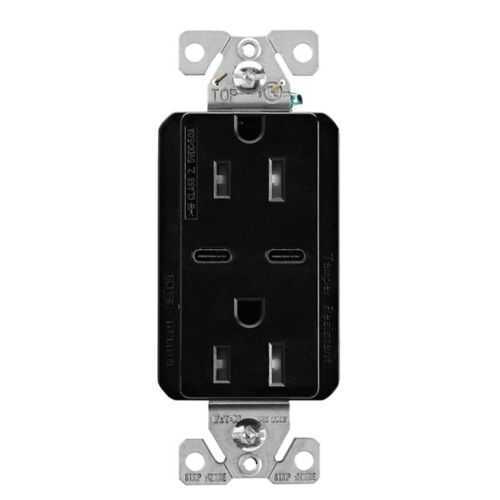

Eaton TRUSBC15BK-BOX Charger - cULus Listed
Part Number: TRUSBC15BK-BOX
Quick Summary
The Eaton TRUSBC15BK-BOX charger delivers USB charging with a duplex receptacle for commercial and industrial spaces. Engineers often struggle with cluttered outlet banks and non-compliant charging devices in enclosures. It carries NOM and cULus Listed certifications, helping meet regulatory requirements across North America. Its compact flush-mount design and tamper-resistant USB charging improve safety and space efficiency, while screw-terminal wiring simplifies installation for electrical contractors. The unit fits standard electrical boxes and NEMA 5-15R configurations, reducing panel depth and service time. With predictable performance, on-site compatibility, and a consolidated outlet approach, it lowers total cost of ownership over time. This makes it a practical choice for OEMs, integrators, and facilities teams managing multiple enclosures.
Product Information
Extended Description
TRUSBC15BK-BOX Eaton: Eaton Combination USB Type-C Charger, 15A 5-15R Receptacle, 5A, 125 Vac, Black, Box
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TRUSBC15BK-BOX
UPC
032664753268
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.285 lb
Certifications
NOM cULus Listed
Type
Type C
Amperage Rating
15A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 5A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Retail Box
Color
Black
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
5A Slim USB Charging Receptacles
5A Slim USB Charging Receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Fast and convenient charging made easy with Eaton's USB receptacles
Eaton Specification Sheet - TRUSBC15BK-BOX
Eaton Specification Sheet - TRUSBC15BK-BOX
The TRUSBC15BK-BOX combines a USB Type-C charger with a duplex NEMA 5-15R receptacle, reducing device count and simplifying wiring. In practice, this means fewer separate power modules and cleaner installations in control panels and wall boxes, enabling faster commissioning and easier maintenance. Tamper-resistant USB charging enhances safety in public or shared workspaces, while the flush-mount design keeps panels neat and compliant with space constraints common in industrial enclosures. The screw-terminal wiring method supports reliable, code-compliant connections for #12-14 AWG conductors, with a 14 lbf-in torque rating to ensure consistent clamping. Brass contact materials and thermoplastic construction deliver durable, long-life performance in demanding environments. This combination receptacle supports standard 5-15R configurations, improving compatibility with customer equipment inventories and reducing spare-part complexity. For installers, the unit's light weight (0.285 lb) and straightforward wiring translate to shorter installation times and lower labor costs, while the integrated USB-C charger aligns with modern device charging expectations in manufacturing floors, offices, and service vans.
Get a Quick Quote for a Eaton TRUSBC15BK-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRUSBC15BK-BOX?
Enquire Now
FAQs
TRUSBC15BK-BOX is designed for flush mounting in standard electrical boxes and uses screw terminals for wiring. It supports #12-14 AWG conductors in a three-wire configuration with a 14 lbf-in torque rating for a secure, code-compliant connection, simplifying field installation and reducing rework in crowded panels.
This unit provides a 15A, 125V rating with a Type C USB charging port integrated into a NEMA 5-15R duplex receptacle. The receptacle is two-pole, three-wire with grounding, built to handle standard commercial/industrial loads while maintaining compact form in a single combination device.
Yes. The flush-mount, space-saving design fits standard electrical boxes used in industrial control panels and wall enclosures. Its combination USB charging and duplex receptacle reduces panel depth, simplifies wiring, and minimizes component count, making it ideal for OEMs and field installations requiring reliable power access in tight spaces.
TRUSBC15BK-BOX carries NOM and cULus Listed certifications, supporting regulatory compliance in North American electrical assemblies. This helps with procurement approvals, code adherence, and safer integration in commercial and industrial projects.
The unit combines USB charging with a standard receptacle in a single device, reducing spare parts and installation time. Brass contact materials and a robust thermoplastic housing improve durability, lowering maintenance intervals. For ROI, the consolidated outlet minimizes wiring complexity and cabinet footprint while delivering reliable charging for frequently used devices on the floor or in service environments.
