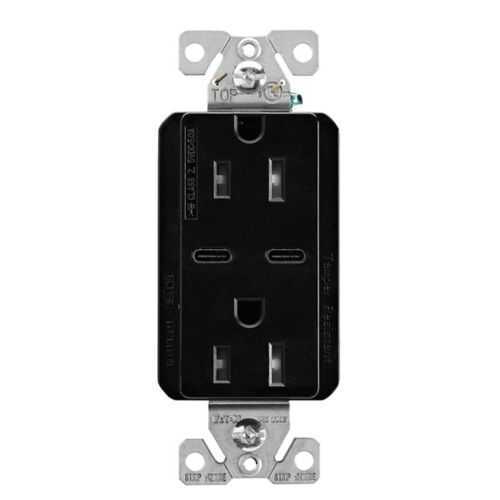

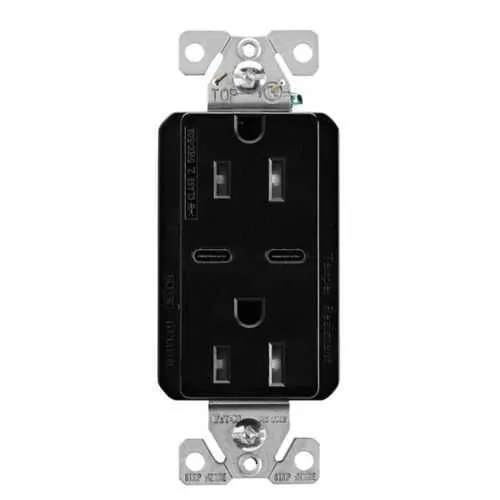

Eaton TRUSBC15BK-K-L USB-C Receptacle - NOM cULus Listed
Part Number: TRUSBC15BK-K-L
Quick Summary
The Eaton TRUSBC15BK-K-L is a USB-C charger with a duplex receptacle for electrical enclosures and workstations. Engineers often grapple with cluttered outlets and limited space, especially in control panels and machine enclosures. This unit carries NOM and cULus listing to support safety and compliance, while delivering a robust 15A at 125V. By combining charging with a standard receptacle, it reduces wiring complexity and cabinet footprint, accelerating installation and maintenance. The flush-mount design, tamper-resistant USB charging, and durable thermoplastic housing deliver reliable performance in everyday industrial environments. In addition, the two-pole, three-wire grounding configuration supports standard electrical codes in commercial settings.
Product Information
Extended Description
TRUSBC15BK-K-L Eaton: Eaton Combination USB Type-C Charger, 15A 5-15R Receptacle, 5A, 125 Vac, Black
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TRUSBC15BK-K-L
UPC
032664753329
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.285 lb
Certifications
NOM cULus Listed
Type
Type C
Amperage Rating
15A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 5A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Clamshell
Color
Black
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
5A Slim USB Charging Receptacles
5A Slim USB Charging Receptacles
Introduction to USB-C Duplex Receptacles
Introduction to USB-C Duplex Receptacles
Introduction to USB-C Duplex Receptacles
Eaton Specification Sheet - TRUSBC15BK-K-L
Eaton Specification Sheet - TRUSBC15BK-K-L
Feature → The TRUSBC15BK-K-L combines USB-C charging with a duplex receptacle, reducing space, wiring, and component count in control panels. Business Impact → Faster installs, lower part counts, and easier field upgrades. Application → Ideal for electrical enclosures and workstation hubs requiring integrated power and charging with compliant, tamper-resistant protection. Feature → 15A at 125V with a NEMA 5-15R configuration ensures compatibility with common equipment and office loads. Business Impact → Maintains power integrity for critical devices while preserving legacy receptacle functionality. Application → Suitable for manufacturing lines and automation cabinets. Feature → Screw-terminal wiring and support for #12-14 AWG wire with a 14 lbf-in torque rating. Business Impact → Secure, repeatable terminations reduce maintenance downtime. Application → Quick, reliable installations in flush-mount, space-constrained panels. Feature → Thermoplastic housing, black finish, and flush-mount design. Business Impact → Durable, aesthetically consistent installations that resist wear in harsh environments. Application → Panel fronts and enclosure interiors where a neat, compliant appearance matters. Feature → NOM cULus Listed certification. Business Impact → Simplified regulatory compliance and faster project approvals. Application → Enclosures in commercial and industrial spaces requiring recognized safety listings.
Get a Quick Quote for a Eaton TRUSBC15BK-K-L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRUSBC15BK-K-L?
Enquire Now
FAQs
To install, use the screw terminals to connect the three-wire ground, neutral, and hot conductors, ensuring the wire size falls within #12-14 AWG. Tighten to 14 in‑lb torque and verify secure ground continuity. Mount the device flush in the enclosure face, matching standard NEMA 5-15R spacing for compatibility with existing receptacles. The unit’s tamper-resistant USB-C charger complements the duplex outlet, reducing cabling and simplifying panel layouts for rapid commissioning.
The TRUSBC15BK-K-L operates at 125 V and is rated for 15 A. It combines a Type-C USB charging port with a NEMA 5-15R duplex receptacle in a single assembly. The device uses brass contact material for reliable current transfer and provides three-wire grounding. It supports standard 15A circuits in commercial/industrial enclosures while maintaining safe, tamper-resistant USB charging for connected devices.
Yes, it is well-suited for control panels and equipment enclosures in manufacturing and automation settings. The flush-mount design minimizes protrusion, while screw-terminal wiring supports flexible field terminations with #12-14 AWG conductors. Tamper-resistant USB charging adds user protection, and the combined outlet reduces cabinet space usage, wiring complexity, and installation time without sacrificing reliability.
This product carries NOM and cULus Listed certifications, signaling compliance with regional safety and performance standards for electrical devices. For projects governed by industrial electrical codes, these listings streamline approvals, influence procurement decisions, and reduce the need for additional site testing. Always confirm the certification scope aligns with your local regulations and panel requirements.
By integrating USB-C charging with a duplex receptacle, maintenance reduces due to fewer separate components and splices. The flush-mount, screw-terminal wiring simplifies diagnostics and future upgrades, while the unit’s durable thermoplastic housing resists wear in daily operation. The consolidated outlet lowers material costs, saves cabinet space, and accelerates commissioning, delivering measurable ROI through improved uptime and easier service.
