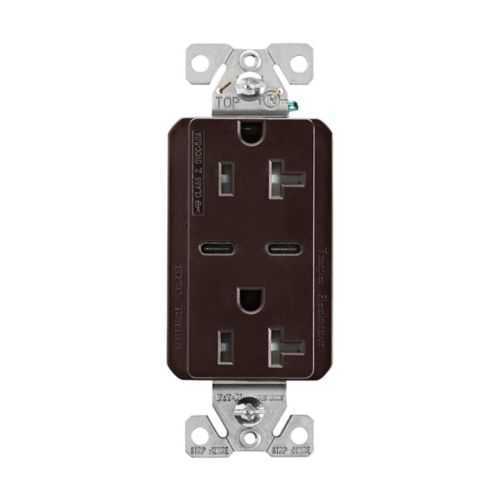

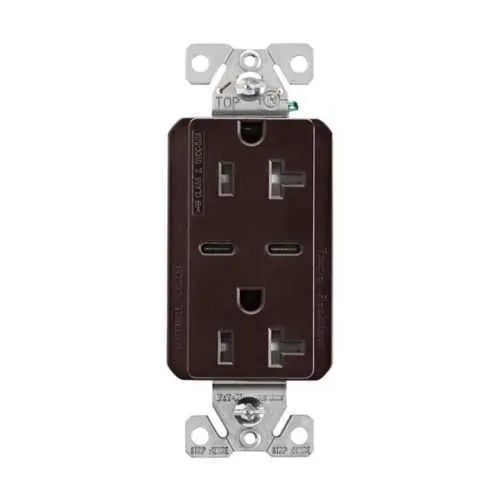

Eaton TRUSBC20B-BOX USB charger receptacle - NOM cULus Listed
Part Number: TRUSBC20B-BOX
Quick Summary
TRUSBC20B-BOX USB charger receptacle by Eaton delivers integrated charging and duplex receptacle functionality for compact control panels and workstations. Engineers often face bulky, separate charging modules that complicate wiring and slow commissioning in tight spaces. This unit carries NOM and cULus Listed certifications to help meet electrical safety standards and simplify approvals, while its flush mounting and screw-terminal wiring support fast, reliable installs. By combining a USB-C charger with a 5-20R receptacle, it reduces bill of materials, minimizes panel depth, and accelerates maintenance in high-traffic facilities. The device is compatible with #12-14 AWG conductors and offers tamper-resistant charging to improve safety and uptime in industrial environments.
Product Information
Extended Description
TRUSBC20B-BOX Eaton: Eaton Combination USB Type-C Charger, 20A 5-20R Receptacle, 5A, 125 Vac, Brown, Box
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TRUSBC20B-BOX
UPC
032664753374
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.285 lb
Certifications
NOM cULus Listed
Type
Type C
Amperage Rating
20A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 5A Charging
Wiring method
Screw terminals
Number of wires
3 Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Retail Box
Color
White Ivory Brown
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
5A Slim USB Charging Receptacles
5A Slim USB Charging Receptacles
Eaton's USB charging receptacles - Never miss a moment
Eaton's USB charging receptacles - Never miss a moment
Eaton's USB charging receptacles - Never miss a moment
Eaton Specification Sheet - TRUSBC20B-BOX
Eaton Specification Sheet - TRUSBC20B-BOX
Feature: Integrated USB-C charger with a duplex NEMA 5-20R receptacle. Business Impact: Reduces panel footprint and BOM, streamlining procurement while delivering a single, compliant device for both power and charging. Application: Ideal for equipment enclosures in manufacturing lines and service counters where field technicians need ready USB-C charging without adding separate adapters.Feature: Type-C USB charging with 5A capability. Business Impact: Faster device charging diminishes downtime and boosts operator productivity, especially in shift-heavy environments. Application: Control panels and workstation enclosures in industrial settings where multiple devices require quick charging.Feature: 125 V, 20 A rating with brass contact material. Business Impact: Robust electrical performance and reliable, long-lasting connections in challenging environments. Application: Power distribution boxes and equipment housings that demand durable terminations.Feature: Wiring method screw terminals with #12-14 AWG conductors. Business Impact: Easier installation, secure terminations, and better pull-out resistance, reducing on-site call-backs. Application: Panel wiring in medium to large enclosures where wiring density is a concern.Feature: Flush mounting and tamper-resistant design. Business Impact: Safer installations that comply with safety codes while minimizing protrusions in crowded panels. Application: Industrial cabinets, service desks, and retail/office panels requiring a clean, compliant surface.Feature: Material and finish options including thermoplastic body with multiple color choices. Business Impact: Flexible aesthetics and compatibility with diverse panel environments, aiding standardization. Application: Receptacle integrations across new builds and retrofits in mixed-use facilities.Feature: Certifications NOM and cULus Listed. Business Impact: Regulatory peace of mind and accelerated approvals for North American deployments. Application: Global manufacturing, distribution, and facilities projects requiring recognized safety standards.
Get a Quick Quote for a Eaton TRUSBC20B-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRUSBC20B-BOX?
Enquire Now
FAQs
The unit uses screw terminals designed for #12-14 AWG conductors. Ensure the panel is de-energized, strip wires to appropriate length, and tighten terminals to the recommended torque of 14 lbf-in. Mount flush to maintain enclosure integrity and use proper strain relief for cables to prevent movement.
It combines a Type-C USB charger with a NEMA 5-20R receptacle in a single, flush-mount device. The wiring method is screw terminals for 3-wire grounding, and the unit supports 125 V at 20 A with brass contacts, ensuring reliable connections in industrial environments.
Yes. The product carries NOM and cULus Listed certifications, which address electrical safety and compliance requirements for North American installations, reducing the need for additional third-party approvals.
Absolutely. Its decorative decorator style with flush mounting and tamper-resistant features fits retail, office, and industrial panels. Color options and a thermoplastic body support versatile aesthetics while maintaining safety and reliability.
By consolidating USB charging and power receptacle into one device, you reduce BOM complexity, speed up installation, and simplify maintenance. This leads to lower labor costs, fewer parts to stock, and improved up-time for equipment and workstations.
