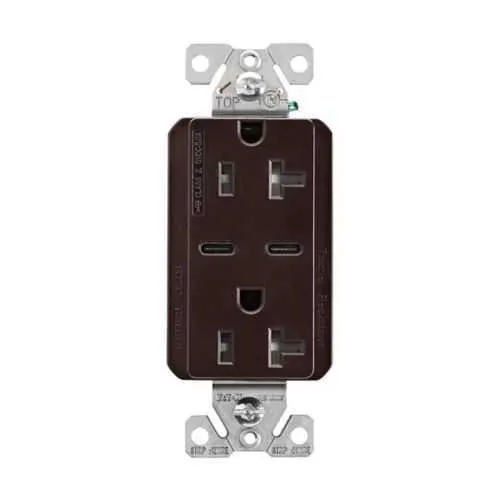

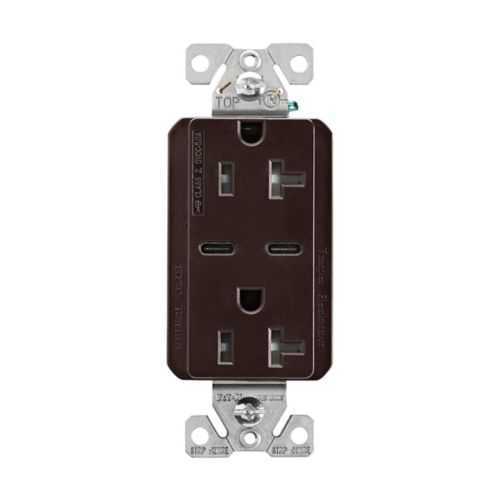

Eaton TRUSBC20B-K-L USB Charger Receptacle - NOM cULus Listed
Part Number: TRUSBC20B-K-L
Quick Summary
Eaton TRUSBC20B-K-L is a USB charger with a duplex receptacle designed for panel-mounted charging in commercial and industrial environments. This all-in-one device helps you consolidate power and data access at workstations, control panels, and equipment enclosures, reducing part counts and field wiring. Engineers often battle cluttered outlets, mixed hardware, and safety concerns in high-traffic areas; this combination unit addresses those pain points with integrated charging and a standard 125 V receptacle. The module carries NOM and cULus listing for global compliance and safety, along with tamper-resistant construction to deter unauthorized access. With 20 A at 125 V and USB-C charging, it delivers reliable power where you need it most, while maintaining flush, space-efficient mounting.
Product Information
Extended Description
TRUSBC20B-K-L Eaton: Eaton Combination USB Type-C Charger, 20A 5-20R Receptacle, 5A, 125 Vac, Brown
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TRUSBC20B-K-L
UPC
032664753435
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.285 lb
Certifications
NOM cULus Listed
Type
Type C
Amperage Rating
20A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 5A Charging
Wiring method
Screw terminals
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Clamshell
Color
Silver granite Brown
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
5A Slim USB Charging Receptacles
5A Slim USB Charging Receptacles
Introduction to USB-C Duplex Receptacles
Introduction to USB-C Duplex Receptacles
Introduction to USB-C Duplex Receptacles
Eaton Specification Sheet - TRUSBC20B-K-L
Eaton Specification Sheet - TRUSBC20B-K-L
Feature: Type-C USB charging is integrated with a NEMA 5-20R duplex receptacle, reducing panel footprint and wiring complexity. Business impact: simplifies procurement and installation while delivering reliable 20A, 125V service for both USB devices and standard equipment, enabling faster commissioning and cleaner enclosures. Application: control panels, workstation hubs, and equipment cabinets benefit from a compact, all-in-one power and charging solution. Feature: Screw-terminal wiring supports #12-14 AWG, delivering solid, code-compliant connections with predictable performance and easier field changes. Impact: reduces rework, lowers installation time, and improves long-term reliability in retrofit projects. Application: new builds and renovations across manufacturing lines. Feature: Tamper-resistant design paired with 5A USB charging enhances safety in high-traffic areas, while preventing unauthorized access to live outlets. Impact: protects operators and reduces maintenance calls in busy facilities. Application: production floors and shared workstations. Feature: Flush mounting with thermoplastic decorator styling provides a professional finish and door-ready spacing. Impact: easier integration into panel doors and enclosures without compromising aesthetics or clearance. Application: commercial interiors and equipment housings needing a neat, code-compliant appearance. Feature: NOM and cULus certifications guarantee regulatory compliance and ease of approval for multi-site deployments. Impact: accelerates procurement cycles, reduces compliance risk, and simplifies audits. Application: global installations in North America and Latin America. Feature: Compatible with #12-14 AWG conductors, 14 lbf-inch torque rating, and 125 V/20 A capability, all in a single, robust package. Impact: predictable performance, secure fastenings, and reliable charging paired with traditional receptacle use. Application: control cabinets, electrical enclosures, and field retrofit projects.
Get a Quick Quote for a Eaton TRUSBC20B-K-L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRUSBC20B-K-L?
Enquire Now
FAQs
Power down the circuit, verify compatibility with #12-14 AWG conductors, and connect each conductor to the screw terminals with the recommended torque of 14 lbf-in. Mount the unit flush in the panel opening, align the NEMA 5-20R receptacle, secure with standard hardware, and re-energize the circuit. Ensure the USB-C port is accessible for charging.
Key specs include a 20A amperage rating at 125V, Type-C USB charging integrated with a duplex 5-20R receptacle, brass contact material, three-wire wiring via screw terminals, and a torque rating of 14 lbf-in. The housing is thermoplastic and designed for flush mounting, with tamper-resistant construction and a decorator finish.
Yes. It is designed for panel-mounted charging and power delivery, offering flush mounting, a robust brass contact system, and compatibility with #12-14 AWG wiring. Its tamper-resistant design and NOM/cULus listings support safe, reliable operation in industrial control panels and equipment enclosures, while maintaining a clean, professional appearance.
The unit carries NOM and cULus Listed certifications, validating compliance with regional electrical standards and safety requirements. These credentials support NEC/code conformance in North America and Mexico, facilitate approvals during audits, and reduce risk during installation in multi-site projects.
By integrating USB charging with a duplex receptacle, it reduces the number of separate parts, wiring runs, and panel openings. This lowers labor time, minimizes materials, and simplifies procurement, delivering faster commissioning, easier maintenance, and measurable return on investment in facilities with frequent USB charging needs.
