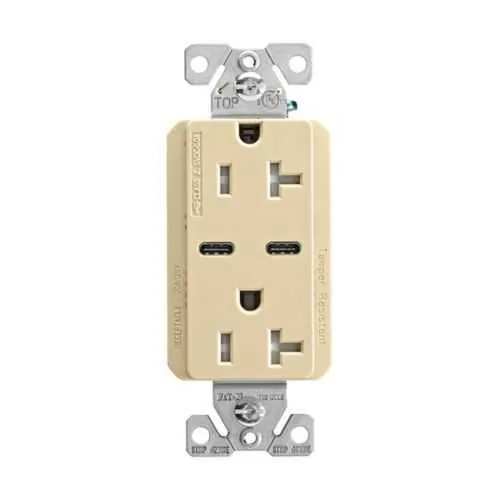

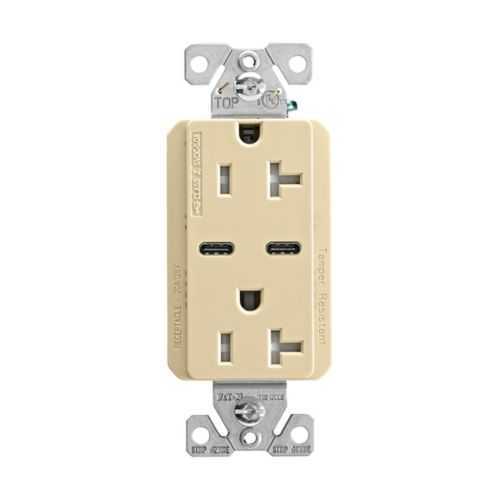

Eaton TRUSBC20V-BOX USB Charger with Receptacle - cULus
Part Number: TRUSBC20V-BOX
Quick Summary
Eaton TRUSBC20V-BOX is a combination USB charger with duplex receptacle designed for electrical outlets in industrial workstations and equipment enclosures. It simplifies installation by merging power and charging in one compact unit, reducing part counts and cabling. Too often teams contend with mismatched devices that force compromise on safety and efficiency. This design supports cULus Listed and NOM certifications, ensuring compliance across North American and select international installations, while the Type C USB charging aligns with modern device expectations. The flush-mount, decorator-style receptacle offers a clean, accessible solution that accelerates commissioning and minimizes service calls. In addition to reliability, its 20A/125V rating supports demanding environments, delivering business value through faster turntimes and reduced maintenance.
Product Information
Extended Description
TRUSBC20V-BOX Eaton: Eaton Combination USB Type-C Charger, 20A 5-20R Receptacle, 5A, 125 Vac, Ivory, Box
Product Name
Eaton combination USB charger with duplex receptacle
Catalog Number
TRUSBC20V-BOX
UPC
032664753411
Product Length/Depth
1.4 in
Product Height
4.19 in
Product Width
1.3 in
Product Weight
0.285 lb
Certifications
cULus Listed NOM
Type
Type C
Amperage Rating
20A
Voltage rating
125 V
Contact material
Brass
Features
Tamper resistant 5A Charging
Wiring method
Screw terminals
Number of wires
3 Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Packaging type
Retail Box
Color
Brown Almond Ivory
Material
Thermoplastic
Style
Decorator
Allowable wire size
#12-14 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Combination type
USB
Design type
Receptacle
Receptacle type
Two-pole, three-wire, grounding
5A Slim USB Charging Receptacles
5A Slim USB Charging Receptacles
Eaton's USB charging receptacles - Never miss a moment
Eaton's USB charging receptacles - Never miss a moment
Eaton's USB charging receptacles - Never miss a moment
Eaton Specification Sheet - TRUSBC20V-BOX
Eaton Specification Sheet - TRUSBC20V-BOX
Feature → Business Impact → Application: The TRUSBC20V-BOX combines a USB Type-C charger with a NEMA 5-20R duplex receptacle, delivering 20A at 125V while providing 5A USB charging. This reduces equipment clutter and inventory, enabling faster panel wiring and easier future upgrades for industrial machinery and workstations. Application: ideal for control panels, equipment enclosures, and benchtop stations where reliable charging and power access are required without compromising space or safety. Feature → Business Impact → Application: Tamper-resistant design increases safety in busy industrial environments, reducing accidental contact and noncompliant tampering scenarios, which lowers maintenance cost and downtime. Application: suitable for manufacturing floors, robotics cells, and field service panels requiring robust, compliant outlets. Feature → Business Impact → Application: Screw-terminal wiring supports #12-14 AWG conductors with a 14 lbf-in torque rating, enabling secure, repeatable connections that resist vibration and thermal cycling. Application: retrofit projects and new builds in harsh environments where reliable electrical connections are critical. Feature → Business Impact → Application: Flush mounting and decorator styling deliver a professional, code-compliant finish, enabling rapid commissioning and simpler cosmetic upkeep in modern control rooms and wall outlets. Application: electrical enclosures, wall stations, and utility racks where aesthetics and compliance matter. Feature → Business Impact → Application: Brass contact material ensures durable, low-resistance connections for long-term performance, reducing thermal losses and improving overall system efficiency. Application: high-usage outlets near heavy machinery or service counters. Feature → Business Impact → Application: 3-wire, two-pole configuration with 5-20R receptacle supports common North American configurations, simplifying installation with standard wiring practices. Application: end-user outlets on production lines and maintenance bays. This product’s combination design supports streamlined procurement and improved maintenance planning, delivering measurable efficiency gains and regulatory confidence across industrial facilities.
Get a Quick Quote for a Eaton TRUSBC20V-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TRUSBC20V-BOX?
Enquire Now
FAQs
This unit uses screw terminals for #12-14 AWG conductors and is flush-mounted with a 5-20R duplex receptacle. Plan for three-wire, two-pole wiring and apply the recommended torque of 14 lbf-in on terminals to ensure secure, vibration-resistant connections suitable for control panels and motorized equipment.
It delivers 20A at 125V with a USB Type-C charger providing up to 5A charging. The receptacle is NEMA 5-20R, and the assembly uses brass contacts for reliable, low-resistance connections. The device is designed for screw-terminal wiring and has a 14 lbf-in torque rating to maintain connection integrity.
Yes. The unit combines power and USB charging in one compact, flush-mount package with tamper-resistant features and durable brass contacts, making it well-suited for machinery enclosures, control panels, and workstation outlets where space, safety, and reliability are critical.
The component is cULus Listed and NOM certified, confirming compliance with North American safety standards and applicable regional requirements, which simplifies regulatory approvals for industrial facilities and reduces qualification time during commissioning.
By consolidating power and USB charging into a single flush-mount unit, it reduces device counts, wiring complexity, and service calls. This leads to faster installation, easier ongoing maintenance, improved space utilization in panels, and lower total cost of ownership in high-use industrial environments.
