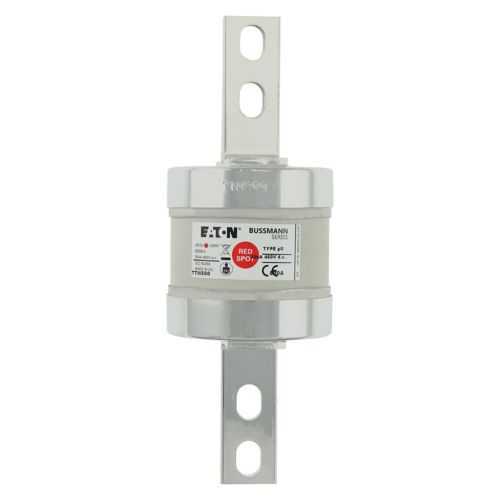

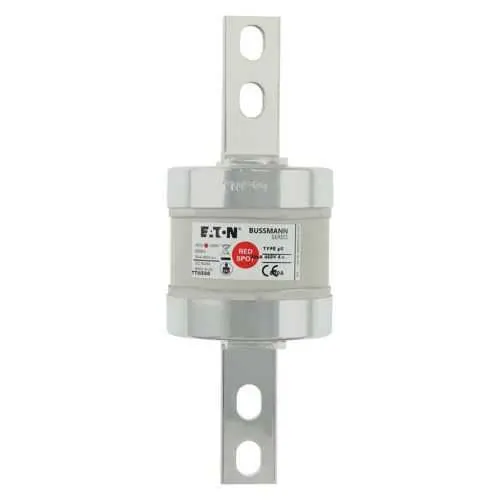

Eaton TTM560 Low-Voltage British Fuse - BS88 CE RoHS
Part Number: TTM560
Quick Summary
The Eaton TTM560 low-voltage British fuse delivers reliable overcurrent protection for industrial power distribution. In tight control panels and large switchgear, selecting a fuse that meets BS88 and IEC 60269 while matching form factors can be challenging. It carries CE Marked RoHS compliance along with BS88, IEC 60269, and EAC certifications, ensuring regulatory alignment and traceable quality. The TTM560’s UK-standard 210 mm length and 75x75 mm footprint support gL/gG fuse types and standard mounting, simplifying procurement and replacement. This combination of certification, compatibility, and robust performance helps minimize downtime and extend asset life across critical electrical networks.
Product Information
Extended Description
TTM560 Eaton: Eaton Bussmann series low voltage british standard fuse, 560A, AC 660 V, DC 450 V, V88/C2, 74 x 210 mm, gL/gG
Product Name
Eaton Bussmann series low voltage british standard fuse
Catalog Number
TTM560
EAN
5996516026700
Product Length/Depth
210 mm
Product Height
75 mm
Product Width
75 mm
Product Weight
1080 g
Compliances
CE Marked RoHS Compliant
Certifications
BS88 IEC 60269 EAC
CA134002EN
CE Redspot fuse-links
CE Redspot fuse-links
Eaton Bussmann - Red Spot fuse links
10078 Red spot centre bolted fuses:TB, TBC, TC, TF, TKF, TKM, TMF, TM, TMT, TTM, TLM, TT, TLU,TXU fuses
High current rating and broad voltage range improve system protection and reduce nuisance trips. The TTM560 is rated at 560 A with AC 660 V and DC 450 V, enabling it to safeguard heavy feeders and motor circuits in industrial plants. In practice, this translates to fewer fuse changes, less downtime, and lower maintenance costs for continuous production. BS88 compliance and IEC 60269 compatibility streamline procurement and ensure interchangeability with other BS88 fuses in UK and European installations, while enabling reliable stock management for panel builders and electrical contractors. The British Standard form factor with gL/gG classification supports straightforward mounting in standard fuse holders and distribution boards, reducing engineering time during panel design and retrofit projects. RoHS and CE marking help your organization meet environmental and safety regulations without compromising performance. The 210 mm length and 75x75 mm footprint align with common UK and international BS88 installations, supporting scalable, future-proof protection strategies. With available catalogs and declarations, staying compliant and up-to-date is simple for maintenance teams and OEMs.
Get a Quick Quote for a Eaton TTM560
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TTM560?
Enquire Now
FAQs
The TTM560 is designed to fit standard BS88 fuse holders and distribution panels used in UK and European builds. Its gL/gG classification aligns with common BS88 configurations, and its 210 mm length with 75x75 mm footprint matches typical centre-mounted or holder-based installations. When replacing an existing BS88 fuse, ensure the holder supports the 210 mm long, 75x75 mm format and that the current rating is appropriate for the circuit.
Key specs include a 560 A current rating, AC operating voltage up to 660 V, DC operating voltage up to 450 V, and gL/gG fuse type within the BS88 family. The fuse measures 210 mm in length with a 75 mm width and height, and carries CE RoHS, BS88, IEC 60269, and EAC certifications. These ratings support protection for high-demand feeders and motor circuits in industrial environments.
The TTM560 is a BS88-class fuse designed for standard industrial protection. While CE RoHS and BS88 compliance indicate robust regulatory conformity, always verify panel ambient temperature and enclosure protection in your specific installation. For extreme environments, ensure adequate derating, proper enclosure rating, and adherence to electrical safety standards to maintain fuse performance and longevity.
The TTM560 carries BS88 and IEC 60269 certifications, confirming conformance with British and international fuse standards. It is CE marked and RoHS compliant, indicating environmental and safety compliance within the European Union. EAC certification further supports suitability for markets with Eurasian conformity requirements, simplifying cross-border procurement and installation planning.
Authorized documentation includes Eaton catalogs (such as CA134002EN) and DoC declarations, plus the 10078 series datasheets for Red Spot centre-bolted fuses related to BS88 families. Access to these resources enables accurate sizing, replacement planning, and lifecycle management. Always refer to the latest Eaton technical data sheets for wiring diagrams, mounting guidance, and safety notes.
