Eaton TWBS2062 Thru-Wall Barrier Sealing Block - UL Listed
Part Number: TWBS2062
Quick Summary
The Eaton TWBS2062 Thru-Wall Barrier sealing block assembly provides reliable thru-wall sealing for marine electrical installations. In harsh environments, inadequate sealing leads to water ingress, corrosion, and costly downtime. UL certification for Firestop Devices (US and Canada) and related listings underpin regulatory compliance, while the product’s ordinary/non-hazardous location suitability broadens installation scope. Designed with elastomeric material and a 2-frame-space footprint, it delivers robust, adaptable protection for multiple openings. This solution supports efficient, durable shared-wall installations and aligns with typical Crouse-Hinds TW series assemblies, offering tangible business value through reduced maintenance and improved reliability in marine contexts.
Product Information
Extended Description

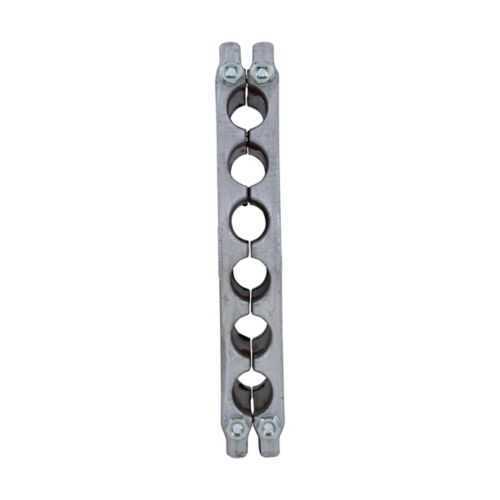

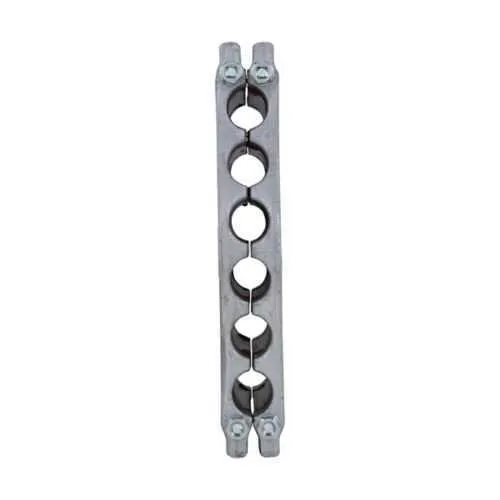

TWBS2062 Eaton: Eaton Crouse-Hinds series Thru-Wall Barrier TWB sealing block assembly, Elastomeric, 2 frame spaces required, 6 openings in block, Opening size range: 0.500-0.750", For marine applications
Product Name
Eaton Crouse-Hinds series Thru-Wall Barrier TWB sealing block assembly
Catalog Number
TWBS2062
UPC
782274277196
Product Length/Depth
11.38 in
Product Height
3.25 in
Product Width
7.25 in
Product Weight
7.88 lb
Area classification
Ordinary/Non-Hazardous Locations
Opening size range
0.500-0.750"
Number of openings in block
6
Number of frame spaces required
2
Material
Elastomeric
Type
For marine applications
Crouse-Hinds series Thru-Wall Barrier Cable and Conduit Sealing Device catalog page
Thru-Wall Barrier Cable and Conduit Sealing Device UL certification
Thru-Wall Barrier Cable and Conduit Sealing Device UL certification
Thru-Wall Barrier Cable and Conduit Sealing Device UL certification
IF 1020 - TWBS Sealing Block for TW series Thru-Wall Barrier
Eaton Specification Sheet - TWBS2062
Feature — Elastomeric sealing material provides durable, flexible sealing that tolerates vibration and temperature variation in marine environments. Business Impact — Reduces water ingress risk and corrosion, extending panel life and lowering service interventions. Application — Ideal for thru-wall barrier blocks in shipboard electrical panels and harsh locations, ensuring long-term integrity. Feature — Opening size range of 0.500-0.750 inches supports multiple conductor sizes without adapters. Business Impact — Streamlines mounting, reduces inventory, and speeds field assembly. Application — Useful for mixed cabling in confined spaces where quick adaptation is required. Feature — Six openings in the block with two frame spaces required. Business Impact — Improves installation efficiency and enables compact, scalable panel designs. Application — Marine panels and equipment enclosures where space is at a premium. Feature — Elastomeric material and TWB compatibility confirm suitability with Crouse-Hinds TW series. Business Impact — Lowered risk of mismatched components, faster procurement, and predictable performance. Application — Retrofit projects or new builds leveraging standard TW components. Feature — Rated for Ordinary/Non-Hazardous Locations with installation resources available. Business Impact — Regulatory alignment and simplified compliance checks, reducing design risk. Application — Broad marine and non-hazardous installations, with access to installation sheets and catalogs for guidance.
Get a Quick Quote for a Eaton TWBS2062
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TWBS2062?
Enquire Now
FAQs
TWBS2062 requires two frame spaces and accommodates six openings within the elastomeric sealing block. Follow the IF 1020 installation sheet for Sealing Block guidance and ensure compatibility with the TW series frame. Proper alignment with the adjacent panels minimizes gaps and ensures a compliant seal in non-hazardous marine environments.
Key specs include six 0.500-0.750 inch openings, elastomeric material, overall dimensions of 11.38 in length, 3.25 in height, and 7.25 in width, with a weight of 7.88 lb. The product is designed for ordinary/non-hazardous locations and is compatible with Crouse-Hinds TW series assemblies for reliable marine cabling sealing.
Yes. TWBS2062 is specified for marine applications and is certified for Ordinary/Non-Hazardous Locations. This combination provides reliable sealing performance in shipboard panels while maintaining regulatory compliance and ease of maintenance in non-hazardous settings.
TWBS2062 carries UL certification for firestop devices (US and Canada) and related listings for use in non-hazardous locations. This certification supports compliance during audits, procurement, and installation, and ensures the product meets standard firestop and sealing requirements for marine electrical installations.
Resources include the Crouse-Hinds catalog page for the Thru-Wall Barrier, the IF 1020 installation sheet, and Eaton’s TWBS2062 specification sheet. These assets provide installation steps, compatibility guidance, and dimensional data to support accurate field assembly and procurement.
