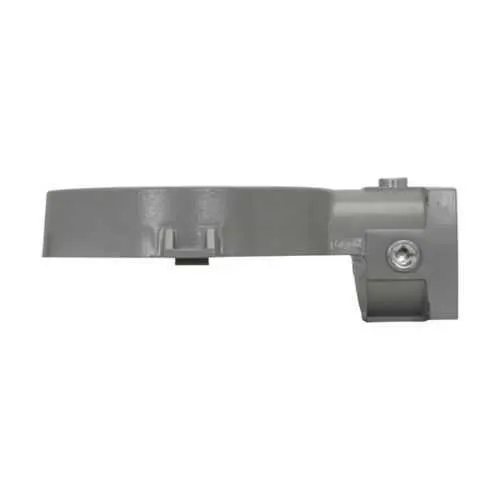

Eaton TWM2 W/5 ENTRIES Champ mounting module - Five entries
Part Number: TWM2 W/5 ENTRIES
Quick Summary
Eaton Crouse-Hinds Champ mounting module is a wall-mount accessory that secures VMV HID luminaires in industrial spaces. In tight or cluttered installations, wiring access and durable mounting become ongoing challenges that slow projects and raise maintenance costs. This module supports ordinary location environments and uses copper-free aluminum to resist corrosion while delivering dependable service. Designed for VMV and VMV high wattage luminaires, it helps engineering teams meet installation schedules and long-term reliability goals, while enabling scalable configurations for future luminaires and controls.
Product Information
Extended Description
TWM2 W/5 ENTRIES Eaton: Eaton Crouse-Hinds series Champ mounting module, Copper-free aluminum, Wall mount, Five entries, 3/4" trade size, Used with VMV and VMV high wattage series luminaires
Product Name
Eaton Crouse-Hinds series Champ mounting module
Catalog Number
TWM2 W/5 ENTRIES
UPC
662276473829
Product Length/Depth
15 in
Product Height
4.8 in
Product Width
12 in
Product Weight
5.88 lb
Area classification
Ordinary/Non-Hazardous Locations
Used with
VMV and VMV high wattage series luminaires
Mounting Method
Wall
Material
Copper-free aluminum
Trade size
3/4"
Special features
Five entries
Crouse-Hinds series Champ VMV HID catalog page - 50W-175W
Crouse-Hinds series Champ VMV HID catalog page - 50W-175W
Eaton Specification Sheet - TWM2 W/5 ENTRIES
Feature → Business Impact → Application: Copper-free aluminum construction reduces corrosion risk and lifetime maintenance costs, improving total cost of ownership for exterior and wet-location environments. This translates to longer service intervals and lower replacement frequency in harsh industrial settings, making it ideal for VMV HID installations where durability matters. Application: VMV luminaires in outdoor or semi-enclosed facilities where corrosion resistance is critical. Feature → Business Impact → Application: Wall mounting with a 3/4" trade size and five entries enables flexible conduit routing and simplified wiring, reducing installation time by aligning with standard electrical practices. This supports faster project delivery and easier future rework for high-wattage VMV configurations. Application: Moderate to large warehouse and factory floor luminaires requiring neat, scalable wiring access. Feature → Business Impact → Application: Five-entry capability provides multiple ingress paths for feeders and control wiring, reducing the need for trenching or rerouting and enabling clean separation of power and control circuits. This minimizes interference and supports compliant, organized installations. Application: VMV high wattage series luminaires where wiring management is a top concern. Feature → Business Impact → Application: Wall-mount design simplifies retrofits and maintenance, allowing quick removal or replacement without disturbing adjacent fixtures. This reduces downtime during servicing and supports modular upgrade paths. Application: Facility upgrades and maintenance cycles for existing VMV installations. Feature → Business Impact → Application: Exact dimensions (15 in L × 12 in W × 4.8 in H) and weight (5.88 lb) provide predictable fitment in retrofit projects and new builds, helping engineers validate enclosure space and load considerations. Application: Space-constrained mounting zones in industrial environments.
Get a Quick Quote for a Eaton TWM2 W/5 ENTRIES
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TWM2 W/5 ENTRIES?
Enquire Now
FAQs
The TWM2 W/5 ENTRIES is designed as a copper-free aluminum, wall-mount mounting module with a 3/4 inch trade size and five wiring entries. It supports VMV and VMV high wattage luminaires and is suitable for ordinary or non-hazardous locations. When planning, verify wall strength, conduit layout, and alignment with luminaire mounting points to ensure a clean installation and serviceable wiring access.
With five separate entries, the module provides multiple ingress paths for feeders and control wiring, reducing the need for rework and bundled conduits. The wall-mount configuration allows swift removal and reinstallation during maintenance, minimizing downtime. This is especially valuable in facilities with high-wattage VMV luminaires where reliable access accelerates servicing and reduces outage windows.
Yes, the mounting module is rated for Ordinary/Non-Hazardous Locations per its area classification. Constructed from copper-free aluminum, it offers corrosion resistance and durability suitable for typical industrial environments. While it does not list hazardous-location certifications, its non-hazardous classification makes it a prudent choice for standard factory and warehouse lighting installations using VMV HID luminaires.
Key specs to confirm include five-entry capacity, 3/4 inch trade size, wall-mount design, and the physical dimensions (15 inches long, 12 inches wide, 4.8 inches high) with a weight of approximately 5.88 pounds. It is designed for VMV and VMV high wattage luminaires and uses copper-free aluminum, providing a balance of durability and installation flexibility.
The mounting module is supplied by Eaton under the Crouse-Hinds Champ line and is compatible with VMV and VMV high wattage luminaires. For compatibility confirmation, cross-check catalog references and the specific VMV luminaire wattage, as well as mounting hole patterns and conduit entries to ensure a precise, code-compliant installation.
