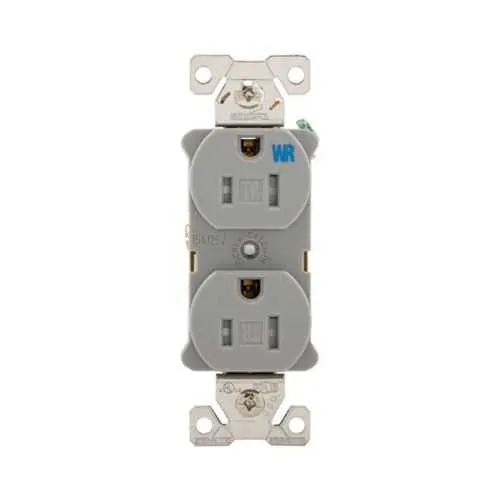

Eaton TWRBR15GY Duplex Receptacle - cULus NOM
Part Number: TWRBR15GY
Quick Summary
The Eaton TWRBR15GY duplex receptacle is a durable 15A, 125V outlet designed for commercial wiring. In busy installations, back-and-side wiring and exposure to damp environments can lead to miswiring, poor contact, and unnecessary downtime. This device carries cULus Listed and NOM certifications, and its weather-resistant construction helps maintain performance in wet conditions. For engineers and procurement teams, the combination of a nylon housing, nickel-plated brass contacts, and auto-grounding features supports reliable operation while simplifying installation and inventory across multiple sites. By choosing a commercial-grade receptacle with standardized NEMA 5-15R configuration, you gain predictable performance, easier maintenance, and reduced risk on industrial and office-scale projects.
Product Information
Extended Description
TWRBR15GY Eaton: Eaton commercial specification grade duplex receptacle,#14-10 AWG,15A,Commercial,Flush,125V,Back and side,Gray,Nickel-plated brass,Weather resistant,Impact-resistant nylon face,Glass-filled nylon base,5-15R,Duplex,Screw,Nylon,Core pack
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TWRBR15GY
UPC
032664673467
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
1.09 in
Product Weight
0.154 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Nickel plated brass
Features
Tamper resistant Weather resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Environmental conditions
Damp/wet
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
Nylon
Packaging type
Core pack
Environmental resistance
Weather resistant
Color
Gray
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Glass-filled nylon base Impact-resistant nylon face
Receptacle type
Duplex
Residential straight blade receptacles
Arrow Hart weather resistant and tamper and weather resistant receptacles spec sheet
Arrow Hart weather resistant and tamper and weather resistant receptacles spec sheet
Feature: 15A, 125V rating with NEMA 5-15R configuration. Business Impact: Aligns with common loads in commercial facilities, reducing the risk of overload and compatibility issues. Application: Office spaces, light industrial environments, and general-purpose outlets. Feature: Back and side wiring capability. Business Impact: Simplifies field termination and retrofit work, speeding up installs and enabling flexible terminations. Application: New builds and renovations with limited conduit runs. Feature: Weather resistant and damp/wet environment suitability. Business Impact: Enhances reliability in challenging spaces, reducing maintenance cycles. Application: Mechanical rooms, production floors, and outdoor zones. Feature: Tamper resistant, auto-grounding design. Business Impact: Improves safety compliance and minimizes accidental contact risks. Application: Schools, healthcare facilities, and hospitality environments. Feature: Nickel-plated brass contact material and glass-filled nylon base with a nylon face. Business Impact: Improves durability and corrosion resistance, ensuring long-term electrical integrity. Application: High-use commercial outlets and industrial settings. Feature: Flush mounting in standard boxes with core-pack packaging. Business Impact: Streamlines installation and inventory management, reducing on-site setup time. Application: New construction and retrofit projects requiring tidy, unified wall outlets. Feature: Color Gray and NEMA 5-15R compatibility. Business Impact: Maintains consistent aesthetics and plug-in compatibility across sites. Application: Commercial interiors and public-facing installations.
Get a Quick Quote for a Eaton TWRBR15GY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TWRBR15GY?
Enquire Now
FAQs
The TWRBR15GY accepts #14-10 AWG conductors via back and side terminals. For proper termination, route conductors under the terminal screws and tighten to 14 lbf-in torque, then mount the device flush in a standard 1-gang box. Grounding should be established per local code with the included auto-grounding features.
This is a 15A, 125V NEMA 5-15R duplex receptacle with nickel-plated brass contacts and a glass-filled nylon base. It features tamper resistance, weather resistance, and back-and-side wiring to support reliable connections in commercial environments.
Yes. The product is specified for damp/wet environmental conditions and includes weather-resistant construction, making it suitable for mechanical rooms, outdoor-adjacent spaces, and other challenging commercial applications.
The device is cULus Listed and NOM certified, indicating compliance with safety and electrical standards for commercial use.
Its durable nylon housing, corrosion-resistant nickel-plated brass contacts, and auto-grounding reduce failure rates and maintenance calls. Core-pack packaging helps with stocking, while the flush-mount design streamlines installation across multiple sites, improving overall project efficiency and uptime.
