Eaton TWRBR20V Duplex Receptacle - Weather Resistant
Part Number: TWRBR20V
Quick Summary

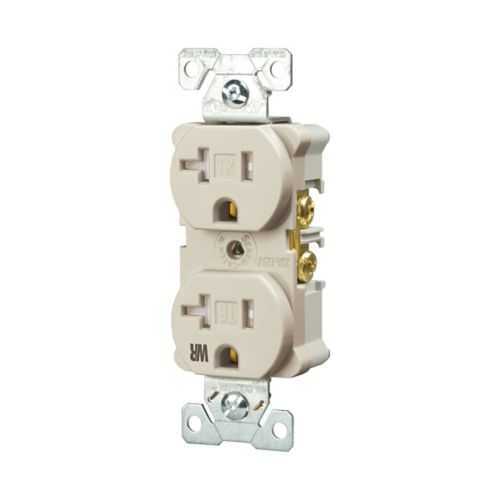

Eaton TWRBR20V duplex receptacle provides reliable, code-compliant power delivery for commercial facilities. In busy environments, moisture, tampering, and wiring complexity can threaten uptime and safety. This model carries UL/cUL Listed and NOM certifications to support regulatory compliance, and it combines weather resistance with an impact-resistant nylon face so it withstands damp or wet conditions. With back- and side wiring and a 20A, 125V rating, installation is flexible across standard panels, while a nickel-plated brass contact system ensures low resistance and durable connections. The flush-mount design supports clean, professional finishes in busy commercial spaces, helping facilities reduce maintenance cycles and unnecessary replacements. Secondary benefits include easy field upgrades and compatibility with existing NEMA 5-20R configurations.
Product Information
Extended Description
TWRBR20V Eaton: Eaton commercial specification grade duplex receptacle,#14-10 AWG,20A,Commercial,Flush,125V,Back and side,Ivory,Nickel-plated brass,Weather resistant,Impact-resistant nylon face,Glass-filled nylon base,5-20R,Duplex,Screw,Nylon,Core pack
Product Name
Eaton commercial specification grade duplex receptacle
Catalog Number
TWRBR20V
UPC
032664673511
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
1.09 in
Product Weight
0.154 lb
Certifications
cULus Listed NOM
Device type
Receptacle
Type
Duplex receptacle
Amperage Rating
20A
Voltage rating
125V
Contact material
Nickel plated brass
Features
Tamper resistant Weather resistant Auto-grounding
Application
Commercial
Device grade
Commercial
Wiring method
Back and side
Environmental conditions
Damp/wet
Number of wires
3
Mounting method
Flush
Number Of Poles
Two-pole
Style type
Standard
Material
Nylon
Packaging type
Core pack
Environmental resistance
Weather resistant
Color
Ivory
Connection type
Screw
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant nylon face Glass-filled nylon base
Receptacle type
Duplex
Residential straight blade receptacles
Eaton Specification Sheet - TWRBR20V
Eaton Specification Sheet - TWRBR20V
Feature → Business Impact → Application: Nickel-plated brass contacts deliver low contact resistance and durable performance, reducing heat buildup in high-use outlets and improving reliability for 125V, 20A circuits in commercial spaces. This translates to fewer nuisance trips and longer service life in retail, offices, and hospitality environments where frequent plug-in activity is expected. Application: Any commercial receptacle retrofit or new installation requiring robust power delivery. Feature → Business Impact → Application: Impact-resistant nylon face and glass-filled nylon base provide mechanical strength and environmental resilience, enabling repeatable performance in damp or wet areas such as break rooms, maintenance shops, and loading zones. Application: Environments with exposure to moisture or incidental impact. Feature → Business Impact → Application: Back and side wiring accepts #14-10 AWG conductors, enabling flexible field terminations and faster wiring without sacrificing secure connections. Application: New builds or renovations where quick, code-compliant wiring is a priority. Feature → Business Impact → Application: Tamper-resistant, weather-resistant design with auto-grounding minimizes safety risk and maintenance costs, supporting compliance with modern safety standards. Application: High-traffic commercial spaces requiring secure, maintenance-friendly electrical outlets. Feature → Business Impact → Application: NEMA 5-20R configuration and flush mounting align with standard outlet layout in electrical panels and faceplates, reducing compatibility issues during installations. Application: Retrofit projects and new constructions using common commercial receptacles. Feature → Business Impact → Application: Core-pack packaging and color ivory simplify inventory management and aesthetic integration in commercial interiors, speeding procurement and installation. Application: Large facilities seeking consistent finishes and streamlined stocking.
Get a Quick Quote for a Eaton TWRBR20V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TWRBR20V?
Enquire Now
FAQs
The TWRBR20V supports back- and side-wire termination for #14-10 AWG conductors and requires a standard flush-mount installation. Begin by turning off power, remove the existing device, and prepare the conductors. Secure wires under the captive screws, ensuring proper torque (14 in-lbf) for reliable contact yet avoid over-tightening. This approach minimizes field errors and delivers a solid, code-compliant connection in commercial panels.
TWRBR20V carries UL/cUL Listed and NOM certifications, indicating compliance with recognized safety standards for electrical devices in North American markets. These certifications support safe operation in commercial facilities, provide assurance during inspections, and align with industry best practices for reliability in damp or wet environments. Always verify local code requirements when planning large installations.
Yes. The receptacle features weather-resistant construction and an impact-resistant nylon face designed to withstand damp and wet conditions typical of break rooms, utility areas, and outdoor-adjacent spaces. The combination of nylon body materials and nickel-plated brass contacts helps resist corrosion and maintain reliable performance over time in challenging environments.
The TWRBR20V is a 5-20R duplex receptacle, configured for two-pole operation at 20A and 125V. It accepts #14-10 AWG conductors with back- and side-wiring options, enabling flexible installation in various commercial circuits. The design includes a 14 in-lbf torque rating to ensure secure terminal connections without over-tightening, supporting durable field terminations.
Expected ROI comes from reduced maintenance cycles, lower replacement rates, and fewer safety incidents due to tamper-resistant and weather-resistant features. The durable nylon and nickel-plated brass construction resist wear in high-traffic areas, while straightforward wiring supports faster turnarounds for installations and upgrades. Over time, these factors translate to lower labor costs and improved uptime across facilities.
