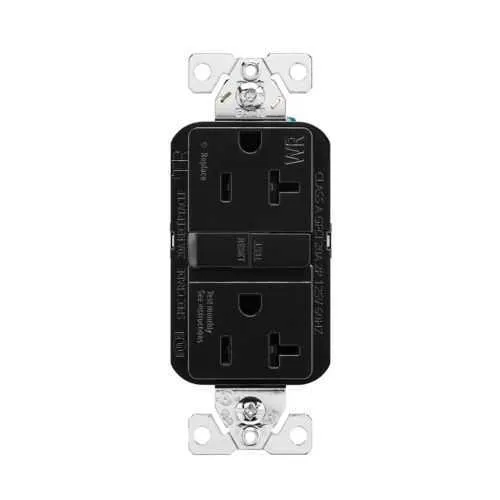

Eaton TWRGF20BK-50 Slim GFCI Receptacle - cULus Listed
Part Number: TWRGF20BK-50
Quick Summary
The Eaton slim GFCI receptacle provides ground fault protection for outlets in outdoor and damp industrial enclosures. A common challenge is fitting code-compliant protection into tight panels and weather-exposed locations, where bulky devices slow installations and increase labor costs. With self-test operation, tamper resistance, a slim footprint, and factory-wired back-and-side wiring options, it reduces maintenance cycles and space risk while speeding up electrical pull-through. Additionally, cULus Listed and NOM certified, the product aligns with NEC and local code requirements, supporting rapid project approval and streamlined bulk procurement for distributors and integrators. Its bulk-packaged configuration (50 units per pack) supports efficient stocking and faster field replacement in high-volume electrical installations.
Product Information
Extended Description
TWRGF20BK-50 Eaton: Eaton tamper and weather-resistant, self-test GFCI, 20A, 125V, Black, 50 pack, Slim design
Product Name
Eaton slim GFCI receptacle
Catalog Number
TWRGF20BK-50
UPC
032664013379
Product Length/Depth
1.03 in
Product Height
4.19 in
Product Width
1.69 in
Product Weight
3.9 lb
Warranty
Refer to warranty document.
Certifications
cULus Listed NOM
Special features
Slim design
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
GFCI
Packaging type
Bulk packaging
Features
Tamper resistant Weather resistant FedSpec Certified
Wiring method
Back and side wire
Allowable wire size
#14-10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-in
Color
Black
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Tamper resistant slim GFCI receptacles spec sheet
Slim design and compact profile deliver a feature that translates into tangible business value by freeing enclosure space and simplifying routing. This saves installation time, reduces field rework, and lowers labor costs in crowded panels and outdoor boxes. The application is ideal for 5-20R receptacles in wall boxes, exterior enclosures, and dense electrical cabinets. Tamper-resistant and weather-resistant construction enhances safety and reliability in harsh environments, improving compliance with safety standards and reducing weather-related faults. This lowers maintenance visits and helps meet NEC requirements in outdoor and damp areas. Back and side wiring with #14-10 AWG capability offers versatile terminations, expanding conductor compatibility and cutting wiring time during changes or upgrades. The NEMA 5-20R, 20A, 125V configuration supports plug-and-play with common loads, simplifying stocking and field replacements. Bulk packaging at 50 units per pack improves procurement efficiency, reduces per-unit costs, and speeds distributor fulfillment in high-volume projects. In retrofit and new-build scenarios, this slim, rugged GFCI receptacle is a practical, code-ready choice that aligns with industry best practices.
Get a Quick Quote for a Eaton TWRGF20BK-50
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TWRGF20BK-50?
Enquire Now
FAQs
The TWRGF20BK-50 supports back and side wiring with #14-10 AWG conductors, featuring a NEMA 5-20R configuration and a torque rating of 16 lbf-in. This combination enables flexible terminations, easier field upgrades, and reliable, code-compliant connections in both new installations and retrofit projects.
The self-test feature continuously checks the GFCI function, ensuring proper ground-fault protection, while tamper-resistant construction prevents unauthorized access or accidental contact with energized components. Together, they reduce nuisance trips, enhance safety for maintenance personnel, and help meet NEC requirements in commercial and industrial environments.
Yes. The unit is designed with weather-resistant features and carries cULus Listed and NOM certifications, making it appropriate for outdoor and damp indoor locations. Its slim form factor also facilitates installation in confined outdoor boxes and exterior panels without compromising protection or performance.
This model carries cULus Listing and NOM certification, signaling compliance with recognized safety and performance standards in North America. These certifications help licensing, inspections, and procurement teams verify that the device meets NEC-based protection requirements, reducing project risk and accelerating approval in industrial builds.
Bulk packaging (50 units per pack) lowers per-unit purchase costs and minimizes downtime waiting for replacements on large sites. For distributors and integrators, this enables faster project turnover, improved spares availability, and more predictable maintenance budgets, especially in high-volume installations and multi-site facilities.
