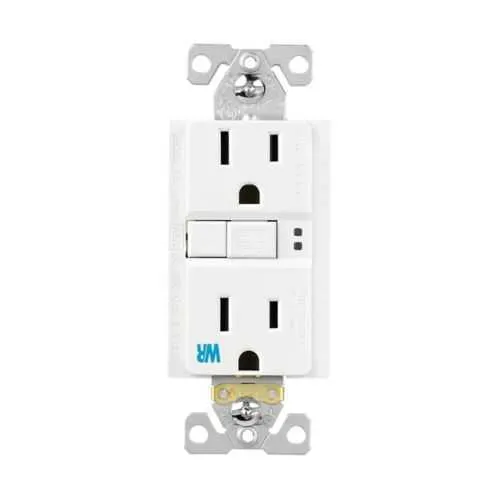

Eaton TWRSGF15FLA GFCI Receptacle - cULus Listed

Part Number: TWRSGF15FLA
Manufacturer
Eaton
Part number
TWRSGF15FLA

Quick Summary

Eaton GFCI receptacle TWRSGF15FLA delivers ground-fault protection for residential and commercial outlets. Facility managers often struggle with nuisance trips, safety compliance, and install-time costs. This self-test, NAFTA-compliant device carries cULus listing for North American use and is designed for flush mounting in residential and commercial spaces. With 15A, 125V rating and back- and side-wire capability, it simplifies wiring in dense panels while meeting NEMA 5-15R configurations. The flush mount, tamper- and weather-resistant housing reduces service calls in demanding environments, supporting reliability, safety, and cost-per-outlet.

Product Information

Extended Description

TWRSGF15FLA Eaton: Eaton GFCI receptacle,NAFTA compliant,Self-test,#14-10 AWG,15A,Residential,Commercial,Flush,125V,Back and side wire,Light almond,Brass,Tamper and weather resistant,Polycarbonate,5-15R,Two-pole,Three-wire,grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TWRSGF15FLA
UPC
032664743894
Product Length/Depth
4.71 in
Product Height
2 in
Product Width
2.86 in
Product Weight
0.38 lb
Certifications
cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
15A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
NAFTA compliant Weather resistant Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-15R
Torque rating
16 lbf-inch
Environmental conditions
Tamper and weather resistant
Number of wires
Three-wire
Mounting method
Flush
Number Of Poles
Two-pole
Color
Light almond
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Feature: Self-test GFCI design enables automatic safety checks between power cycles. Benefit: Reduces nuisance trips and improves reliability, helping facilities stay compliant with NEC requirements while lowering maintenance costs. Application: Ideal for high-traffic areas like kitchens, garages, and outdoor spaces where electrical protection is critical. Feature: 15A, 125V rating with NEMA 5-15R configuration. Benefit: Matches common branch circuits, enabling straightforward replacements and minimizing rewiring. Application: Residential and light commercial outlets requiring robust fault protection. Feature: Back and side wiring capability. Benefit: Simplifies installation in crowded panels and allows flexible field termination, reducing labor time. Application: New builds and retrofit projects where wiring accessibility varies. Feature: Weather- and tamper-resistant housing with brass contact material. Benefit: Enhances durability in harsh environments and resists wear from frequent plug insertions. Application: Outdoor, garages, and damp or dusty spaces where reliability matters. Feature: Flush mounting method and 5-15R receptacle footprint. Benefit: Sleek, space-saving installation that maintains standard plug compatibility and minimizes cosmetic intrusion. Application: Wall outlets in living areas, corridors, and commercial rooms where aesthetics matter. Feature: NAFTA compliant and cULus Listed. Benefit: Streamlines procurement and compliance across North American projects, reducing risk and audit issues. Application: Corporate offices, healthcare facilities, and schools pursuing certified electrical protection.

Get a Quick Quote for a Eaton TWRSGF15FLA

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton TWRSGF15FLA? Enquire Now

FAQs

Power must be shut off. Remove the existing device, choose back- or side-wire termination, insert #14-10 AWG conductors, tighten to the specified torque of 16 lbf-in, secure the device in a flush box, and test the GFCI function with a proper grounding check.
Yes. The device is rated for 15A at 125V and uses the common NEMA 5-15R configuration, making it compatible with typical residential and light commercial branch circuits.
It is designed for residential and commercial use with tamper- and weather-resistant features, making it suitable for indoor spaces and protected outdoor or damp locations such as garages and entryways.
The unit is cULus Listed, ensuring compliance with North American electrical safety standards. It is also NAFTA compliant, supporting cross-border project procurement and installation efficiency.
Back- and side-wire termination reduces wiring complexity, while the self-test feature lowers maintenance calls by validating protection. Flush mounting saves space and reduces cosmetic and wear-related issues, contributing to lower downtime and longer service intervals.
