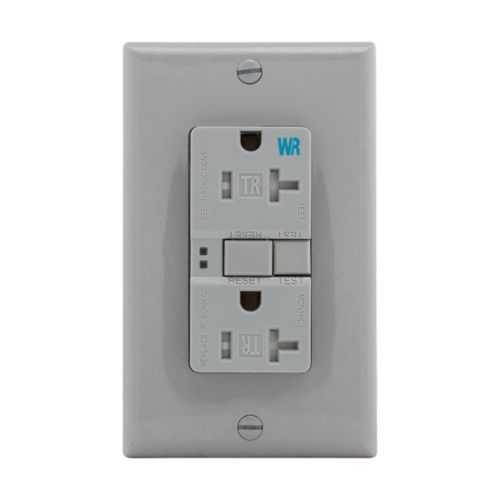

Eaton TWRSGF20FGY GFCI Receptacle - Self-test
Part Number: TWRSGF20FGY
Quick Summary
Eaton GFCI receptacle provides reliable ground fault protection for residential and commercial wiring. Installing protection that’s easy to trust can be a challenge, especially when wiring methods vary and mounting space is limited. This model is NAFTA compliant and cULus Listed, with weather resistant and tamper resistant features to meet demanding codes and environments. It supports back and side wiring for #14–10 AWG conductors and flush mounting to simplify installation in tight spaces. By combining robust protection with straightforward wiring and code compliance, it helps contractors reduce field rework and maintenance costs while delivering safe, compliant outlets for everyday applications.
Product Information
Extended Description
TWRSGF20FGY Eaton: Eaton GFCI receptacle,NAFTA compliant,Weather resistant,Tamper resistant,Self-test,#14 - 10 AWG,20A,Residential,Commercial,Flush,125 V,Back and side wire,Gray,Brass,Tamper and weather resistant,Polycarbonate,5-20R,2-pole,3-wire,grounding
Product Name
Eaton GFCI receptacle
Catalog Number
TWRSGF20FGY
UPC
032664743931
Product Length/Depth
4.71 in
Product Height
2.01 in
Product Width
2.86 in
Product Weight
0.38 lb
Certifications
cULus Listed
Device type
Receptacle
Type
Self-test
Amperage Rating
20A
Voltage rating
125V
Circuit interrupter type
GFCI
Contact material
Brass
Features
NAFTA compliant Weather resistant Tamper resistant
Application
ResidentialCommercial
Wiring method
Back and side wire
Allowable wire size
#14 - 10 AWG
NEMA configuration
5-20R
Torque rating
16 lbf-inch
Environmental conditions
Tamper and weather resistant
Mounting method
Flush
Color
Gray
Face/body material
PVC Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Arrow Hart WR and TWR receptacles spec sheet
Installing and testing a GFCI receptacle instruction sheet
What is a Ground Fault Circuit Interrupting (GFCI) receptacle?
Eaton Specification Sheet - TWRSGF20FGY
Eaton Specification Sheet - TWRSGF20FGY
Eaton Specification Sheet - TWRSGF20FGY
Protection that performs when it matters is the core feature of this GFCI receptacle. The ground fault interrupter quickly detects leakage paths and shuts down power, improving occupant safety and reducing the risk of electrical shock in wet or damp areas. This design translates into fewer field failures and lower liability for building operators. Installation flexibility is another key advantage. With back and side wiring and a #14–10 AWG-compatible terminal range, electricians can adapt to existing conduit layouts and finish flush with the wall, speeding project completion and reducing callbacks. Self-test capability is designed to ensure ongoing protection with minimal maintenance. The unit continuously checks circuitry performance, and installers can reference installation instructions for manual testing if required, helping maintain compliance with NEC and local codes. Durability and environmental resilience are built in. Weather resistant and tamper resistant ratings, along with a polycarbonate face and brass contacts, deliver reliable operation in commercial spaces, outdoor-rated enclosures, and residential kitchens. Procurement and compliance advantages also matter. NAFTA compliant and cULus Listed status support cross-border sourcing and regulatory acceptance, while a flush-mount, gray device with a 125 V, 20 A specification aligns with standard electrical design practices and reduces stocking complexity.
Get a Quick Quote for a Eaton TWRSGF20FGY
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton TWRSGF20FGY?
Enquire Now
FAQs
To install the TWRSGF20FGY, power off the circuit, remove the cover, and prepare conductors for back and side wiring within the #14–10 AWG range. Connect line/load as shown in the wiring diagram, tighten terminals to 16 lbf-in, and mount flush for a neat finish. Use the 5-20R configuration and ensure cULus Listed compliance. Refer to the installation instructions for exact step-by-step guidance.
Yes. The device is weather resistant and tamper resistant, making it suitable for damp or exposed environments common to kitchens, bathrooms, and some commercial spaces. Flush mounting helps minimize water exposure and maintain a clean installation profile inside enclosures, while NAFTA compliance supports cross-border projects.
The receptacle is cULus Listed and NAFTA compliant, which confirms safety and cross-border suitability for North American projects. These certifications support regulatory acceptance, reduce procurement risk, and align with common electrical install standards in both residential and commercial settings.
Match 125 V operation, 20 A rating, NEMA 5-20R configuration, and back-and-side wiring for #14–10 AWG conductors. The device uses brass contacts and a flush mount with a torque rating of 16 lbf-in. It is designed for 2-pole, 3-wire grounding with a gray PVC/polycarbonate body, ensuring reliable performance in standard electrical panels.
The self-test function continually verifies internal circuitry, reducing the need for frequent manual tests and helping maintain NEC compliance with less field effort. This can lower labor costs and callback rates on critical outlets, particularly in high-traffic or moisture-prone areas, while preserving safety for occupants.
