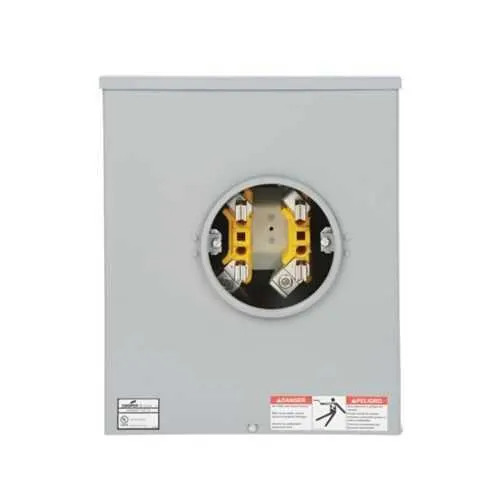

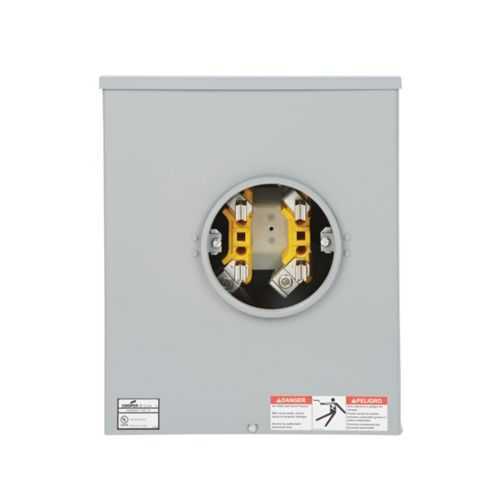

Eaton U011 Meter Sockets for Underground - UL Listed
Part Number: U011
Quick Summary
The Eaton U011 Meter Sockets deliver reliable, underground service entrances for commercial and light-industrial applications. Engineers often wrestle with corrosion, space constraints, and challenging field wiring, so a rugged, easy-to-install solution is essential. This unit carries UL Listed safety certification and ANSI 61 paint finish, ensuring weather resistance in harsh environments. Rated at 100A with a four-jaw, ring-type design, it supports 3-wire, 1-pole service and underground feeds, aligning neatly with Eaton’s B-Line series. Its side mounting capability, 4.625 in depth, and #14-2/0 lugs simplify fitment behind panels and in trench-ready installations. This combination delivers installation efficiency, reduced maintenance, and long-term compliance in underground power distribution projects.
Product Information
Extended Description
U011 Eaton: Eaton B-Line series single meter sockets, 100A, Underground, Four-jaw, Ring, 3, ANSI 61 paint, Steel, Side, 1 pole, Three-wire, #14-2/0, #14-2/0, None
Product Name
Eaton B-Line series single meter sockets
Catalog Number
U011
UPC
782051420302
Product Length/Depth
4.625 in
Product Height
12 in
Product Width
12 in
Product Weight
10 lb
Certifications
UL Listed
Amperage Rating
100A
Material
Steel
Finish
ANSI 61 paint
Number of jaws
Four-jaw
Number of wires
3 Three-wire
Bypass
None
Feed type
Underground
Mounting method
Side
Number of poles
1
Line lug size
#14-2/0
Load lug size
#14-2/0
Cover/door type
Ring
Degree of protection
3
continuous rating meter socket jaws
continuous rating meter socket jaws
Eaton Specification Sheet - U011
Feature: 100A rating in a steel enclosure with ANSI 61 paint finish. Business Impact: Delivers robust field performance and weather resistance, reducing corrosion risk and extending service life in outdoor underground applications. Application: Ideal for commercial and light-industrial underground service entrances where longevity matters. Feature: Four-jaw, ring-type meter socket design. Business Impact: Provides secure, reliable conductor engagement and simplifies termination, cutting rework and arcing concerns. Application: Suitable for high-reliability installations and routine maintenance scenarios. Feature: Underground feed capability with #14-2/0 line and load lug sizes. Business Impact: Supports standard conductor sizes, minimizes need for adapters, and speeds up wiring during installation or retrofit. Application: Common in exterior meter enclosures and trench-installed service feeders. Feature: Side mounting with 1-pole, 3-wire configuration. Business Impact: Enables space-efficient installation and easier access for inspection and modifications. Application: Fits tight panels and utility penetrations where mounting width is constrained. Feature: Ring cover and UL Listed certification. Business Impact: Enhances security against tampering and ensures compliance with safety standards, lowering risk and liability. Application: Suitable for regulated environments and projects requiring formal approvals. Feature: Compact dimensions and weight (4.625 in depth, 12 x 12 in, 10 lb). Business Impact: Simplifies handling, shipping, and on-site positioning while maintaining rigidity and durability. Application: Beneficial for retrofits and new builds where transport and installation efficiency matter.
Get a Quick Quote for a Eaton U011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton U011?
Enquire Now
FAQs
The U011 is ideal for underground service entrances in commercial and light-industrial settings. It supports 100A service, is side-mounted for space efficiency, uses a four-jaw ring design for secure connections, and features ANSI 61 painted steel construction with UL Listed safety certification, helping ensure reliable performance in exterior meter enclosures and trench installations.
Key specs include a 100A amperage rating, 1 pole, 3-wire configuration, four-jaw design, and ring-type cover. It utilizes #14-2/0 line/load lug sizes and is intended for underground feeds. The unit is constructed from steel with ANSI 61 paint finish and is UL Listed, which supports compliance and safety in field installations.
Yes. The U011 is part of Eaton's B-Line series of meter mounting equipment and is designed for side mounting. This compatibility streamlines integration with standard meter enclosures, reduces installation time, and supports scalable underground distribution in multi-circuit facilities.
The U011 carries UL Listed safety certification and features an ANSI 61 paint finish for weather resistance. While there are no additional certifications listed, the UL listing and rugged steel construction help ensure reliability and compliance for underground service installations.
Built from steel with ANSI 61 paint, the U011 provides durable protection against corrosion, reducing maintenance intervals. The four-jaw design ensures secure connections, minimizing arcing and re-terminations. Its compact side-mount format also simplifies retrofit projects, potentially lowering total cost of ownership during deployment and long-term operation.
