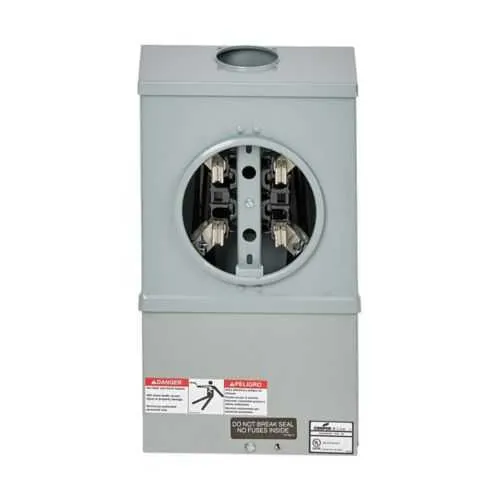

Eaton U121315 Single Meter Socket - UL Listed
Part Number: U121315
Quick Summary
Eaton U121315 single meter socket provides safe, reliable meter mounting for electrical distribution in commercial and light-industrial installations. Engineers often struggle with fitting rugged, code-compliant enclosures into tight service rooms while maintaining easy access to terminations. UL Listed construction and ANSI 61 paint finish support safety, durability, and regulatory compliance, while the five-jaw ring design ensures secure, low-impedance connections. This solution also delivers installation efficiency and predictable performance, helping projects meet schedules and budgets. With side mounting and compatible lug sizes, it’s a practical choice for power distribution upgrades and new builds alike.
Product Information
Extended Description
U121315 Eaton: Eaton B-Line series single meter sockets, 100A, Five-jaw, Ring, 3, ANSI 61 paint, Steel, Side, 1 pole, Three-wire, #14-2/0, #14-2/0, Manual circuit closing
Product Name
Eaton B-Line series single meter sockets
Catalog Number
U121315
UPC
782051470703
Product Length/Depth
4.625 in
Product Height
17 in
Product Width
9.66666667 in
Product Weight
17 lb
Certifications
UL Listed
Amperage Rating
100A
Material
Steel
Finish
ANSI 61 paint
Number of jaws
Five-jaw
Number of wires
3 Three-wire
Bypass
Manual circuit closing
Mounting method
Side
Number of poles
1
Line lug size
#14-2/0
Load lug size
#14-2/0
Cover/door type
Ring
Special features
AW Hub top provision
Degree of protection
3
continuous rating meter socket jaws
continuous rating meter socket jaws
Eaton Specification Sheet - U121315
Feature: 100A amperage rating delivers appropriate service capacity for many commercial and light-industrial applications. Business Impact: Supports compliant power distribution without overdesign or unnecessary cost; reduces risk of overloaded circuits. Application: Suitable for small-to-mid scale service entrances in offices, retail spaces, and light manufacturing. Feature: Five-jaw ring-type connection and #14-2/0 line/load lugs. Business Impact: Improves termination reliability and conductors compatibility, minimizing hot-spots and loosening over time. Application: Fast, secure wiring for durable service connections in crowded electrical rooms. Feature: Side mounting with ring cover. Business Impact: Simplifies installation in equipment racks and flush enclosures while preserving access to terminations. Application: New builds and retrofit panels where space is at a premium. Feature: ANSI 61 paint finish on steel body. Business Impact: Enhanced corrosion resistance and long service life in varied environments; lowers maintenance costs. Application: Industrial facilities and harsh commercial settings. Feature: B-Line series design with manual circuit closing bypass. Business Impact: Provides controlled energization and quick maintenance without removing the assembly; reduces downtime. Application: Utility metering, sub-distribution panels, and service entrances. Feature: Special features include AW Hub top provision and 1-pole, 3-wire configuration. Business Impact: Facilitates future expansion and straightforward wiring schematics; supports standard wiring practices. Application: Retrofit projects and new installations requiring scalable metering.
Get a Quick Quote for a Eaton U121315
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton U121315?
Enquire Now
FAQs
Yes. The U121315 is a side-mount, 1-pole meter socket rated for 100A and designed for standard #14-2/0 line and load conductors. Its five-jaw ring-type contacts and ring cover simplify termination in confined spaces while maintaining code-compliant clearances. When retrofitting, verify panel interior dimensions and clearance for the 4.625 in depth and 17 in height to ensure a clean installation with accessible terminations.
Key specs include 100A amperage rating, 1 pole, 3-wire configuration, and five-jaw ring-type connections with #14-2/0 line/load lugs. It uses steel construction with ANSI 61 paint finish and UL Listed certification, providing durable service in commercial and light-industrial applications. Confirm compatibility with your service entrance and conductor sizing per local codes before procurement.
The unit is ideal for commercial and light-industrial power distribution requiring secure, durable metering enclosures. Its steel body with ANSI 61 finish resists corrosion in moderately harsh environments, and the side-mount design suits equipment racks and compact service rooms. It’s well-suited for new builds and retrofit projects where rapid installation and reliable terminations are priorities.
The U121315 carries UL Listed certification, providing assurance of compliance with recognized safety standards for meter sockets and metal enclosures. The ANSI 61 paint finish reflects adherence to widely accepted finishing standards for electrical equipment, contributing to durability and corrosion resistance over the product life cycle.
Its rugged steel construction, secure five-jaw connections, and ring-type cover reduce termination looseness and related faults, lowering maintenance calls and unplanned downtime. The side-mount design simplifies installation, helping projects stay on schedule and limits field labor costs. Additionally, the 100A rating aligns with common service upgrades, supporting scalable future-proofing.
