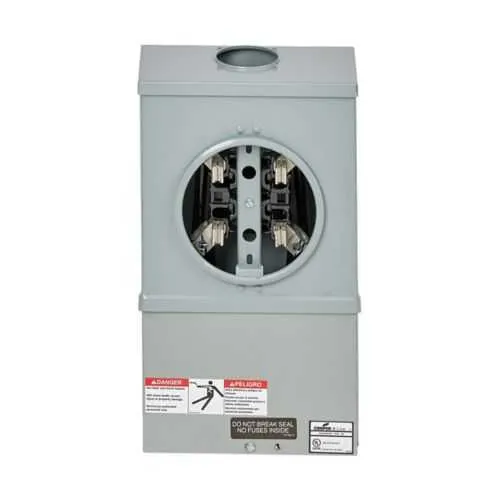

Eaton U264 Meter Sockets - UL Listed
Part Number: U264
Quick Summary
Eaton U264 meter sockets deliver reliable power distribution for commercial and industrial panels. Field installations often struggle with wiring choices, space constraints, and safe, code-compliant operation. UL Listed certification and ANSI 61 finish support durable performance in harsh environments, promoting long-term reliability. This 200 A, four-jaw ring-type unit is side-mounted for a single-pole, three-wire service with #6-250 MCM line and load lugs, offering installation simplicity and consistent electrical performance across demanding facilities.
Product Information
Extended Description
U264 Eaton: Eaton B-Line series single meter sockets, 200 A, Four-jaw, Ring, 3, ANSI 61 paint, Steel, Side, 1 pole, Three-wire, #6-250 MCM, #6-250 MCM, Manual circuit closing
Product Name
Eaton B-Line series single meter sockets
Catalog Number
U264
UPC
782051600001
Product Length/Depth
4.625 in
Product Height
23 in
Product Width
12 in
Product Weight
21 lb
Certifications
UL Listed
Amperage Rating
200A
Material
Steel
Finish
ANSI 61 paint
Number of jaws
Four-jaw
Number of wires
3 Three-wire
Bypass
Manual circuit closing
Mounting method
Side
Number of poles
1
Line lug size
#6-250 MCM
Load lug size
#6-250 MCM
Cover/door type
Ring
Special features
AW Hub top provision
Degree of protection
3
continuous rating meter socket jaws
continuous rating meter socket jaws
Eaton Specification Sheet - U264
Feature → Business Impact → Application: Four-jaw, ring-type connection provides secure seating for conductors, reducing resistive losses and arcing, which translates to improved system reliability and longer component life. Application: ideal for 200 A single-meter installations in commercial panels where dependable terminations are critical. Feature → Business Impact → Application: Steel construction with ANSI 61 paint finish delivers rugged durability, resisting corrosion and wear in harsh industrial environments, lowering maintenance costs over the life of the installation. Application: suitable for manufacturing floors, utility rooms, and outdoor-adjacent enclosures behind protective housings. Feature → Business Impact → Application: Side mounting reduces installation depth requirements and simplifies servicing in tight spaces, enabling faster retrofits and easier access for electricians. Application: retrofit projects and new builds in compact electrical rooms. Feature → Business Impact → Application: Line and load lug sizes of #6-250 MCM support common feeder cables, enabling straightforward wiring with standard tooling and minimizing alchemy with atypical conductors. Application: panel boards and meter centers using common feeder cabling. Feature → Business Impact → Application: Manual circuit closing bypass provides controlled commissioning and safer servicing by delaying automatic contact closure during start-up. Application: commissioning procedures and maintenance routines in data centers and industrial plants. Feature → Business Impact → Application: AW Hub top provision expands compatibility with future accessories, reducing total installation time for upgrades. Application: scalable power distribution projects and planned expansions in facilities.
Get a Quick Quote for a Eaton U264
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton U264?
Enquire Now
FAQs
The U264 is designed for side mounting, a practical choice for compact meter centers. Its four-jaw, ring-type connectors and #6-250 MCM lug provisions enable straightforward wiring in constrained panels, while maintaining secure, code-compliant terminations. This setup simplifies installation and reduces field rework.
U264 is rated for 200 A with a single pole and three-wire configuration. It uses four jaws and supports line and load lug sizes of #6-250 MCM, with a ring-type cover. The unit includes manual circuit closing for controlled commissioning and is UL Listed for safety and reliability.
The U264 is intended for installation within appropriate enclosures in commercial or industrial environments. It carries UL Listed certification and features ANSI 61 paint; ensure the installation location provides suitable protection. The documented degree of protection is 3, underscoring enclosure compatibility rather than an outdoor IP rating.
U264 carries UL Listed certification, validating conformance to safety standards for electrical equipment. This supports code compliance in many jurisdictions and simplifies inspection, installation planning, and warranty considerations when integrating into Eaton B-Line power distribution assemblies.
Durable steel construction with ANSI 61 finish, plus a robust four-jaw connection and manual circuit closing, reduces maintenance cycles and arcing-related wear. The standardization of lug sizes (#6-250 MCM) minimizes field fabrication and simplifies future upgrades, delivering lower total cost of ownership over the panel's life.
