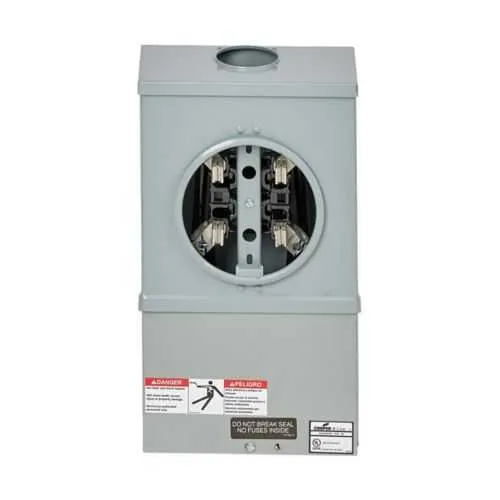

Eaton U267 Meter Socket - UL Listed
Part Number: U267
Quick Summary
The Eaton U267 Meter Socket is a high-capacity metering solution engineered for reliable power distribution in commercial and industrial environments. It addresses common installation challenges such as wiring complexity, space constraints, and serviceability by combining a compact side-mount footprint with a robust seven-jaw, ring-type design. UL Listed certification underpins safety and code compliance, while ANSI 61 paint and steel construction enhance durability in harsh enclosures and busy electrical rooms. The U267 also aligns with B-Line series interoperability, enabling faster integration with existing switchgear and meters, and supporting long-term operational efficiency through rugged build and straightforward wiring.
Product Information
Extended Description
U267 Eaton: Eaton B-Line series single meter sockets, 200 A, Seven-jaw, Ring, 3, Manual circuit closing, ANSI 61 paint, Steel, Side, 3 pole, Four-wire, #6-250 MCM, #6-250 MCM
Product Name
Eaton B-Line series single meter sockets
Catalog Number
U267
UPC
782051600209
Product Length/Depth
4.625 in
Product Height
23 in
Product Width
12 in
Product Weight
25 lb
Certifications
UL Listed
Amperage Rating
200A
Material
Steel
Finish
ANSI 61 paint
Number of jaws
Seven-jaw
Number of wires
4 Four-wire
Bypass
Manual circuit closing
Mounting method
Side
Number of poles
3
Line lug size
#6-250 MCM
Load lug size
#6-250 MCM
Cover/door type
Ring
Special features
AW Hub top provision
Degree of protection
3
Feature: 200 A amperage rating with seven-jaw ring-type meter sockets. Business Impact: Supports high-service-entry needs with secure terminations, reducing overcurrent risk and rework. Application: Ideal for commercial/industrial service entrances requiring reliable, high-capacity metering. Feature: Side mounting, ring cover, 3-pole, 4-wire configuration. Business Impact: Streamlined installation in constrained spaces with proven grounding and wiring configurations. Application: Metering in walls, panels, or external enclosures where space is at a premium. Feature: Durable steel construction with ANSI 61 paint finish. Business Impact: Enhanced corrosion resistance and extended service life in demanding environments, lowering maintenance costs. Application: Enclosures in warehouses, data centers, and outdoor-ready metering points. Feature: Large line/load lugs (#6-250 MCM). Business Impact: Enables direct termination of heavy feeder cables, reducing splice points and improving reliability. Application: Large-diameter conductors for feeders and service conductors. Feature: Manual bypass capability and AW Hub top provision. Business Impact: Facilitates maintenance, testing, and future expansion without full disassembly. Application: Field servicing and modular upgrades in evolving facilities. Feature: UL Listed certification and steel/ANSI 61 compatibility. Business Impact: Ensures code compliance and standardization across installations, lowering risk and change orders. Application: Regulated utility metering, industrial facilities, and HVAC/plant environments.
Get a Quick Quote for a Eaton U267
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton U267?
Enquire Now
FAQs
The U267 supports #6-250 MCM lugs on both the line and load sides, accommodating a 4-wire configuration with seven jaws. This design enables robust, high-current connections suitable for 200A service feeders, reducing splices and improving reliability in dense electrical rooms.
Yes, the U267 is UL Listed. This certification confirms conformity with widely adopted safety standards, aiding code compliance during inspections. It reassures installers and end users that the unit has met established safety criteria for metering equipment in commercial and industrial settings.
The U267 uses side mounting with a ring-type cover and a 3-pole, 4-wire arrangement. Its steel construction finished with ANSI 61 paint offers durable protection in demanding environments, while the AW Hub top provision adds installation flexibility for future expansions or integration with auxiliary equipment.
Designed for 200A service metering, the U267 is well-suited for commercial and light-industrial service entrances. Its 3-pole, 4-wire configuration, ring-type cover, and robust lug connections support reliable metering in data centers, manufacturing floors, and utility-controlled facilities.
Consider using the manual circuit closing bypass feature for maintenance and testing without removing the whole assembly. Verify lug sizes (#6-250 MCM) for conductor compatibility, ensure proper tightening to spec, and plan for side-mount installation to optimize enclosure space and service accessibility in busy electrical rooms.
